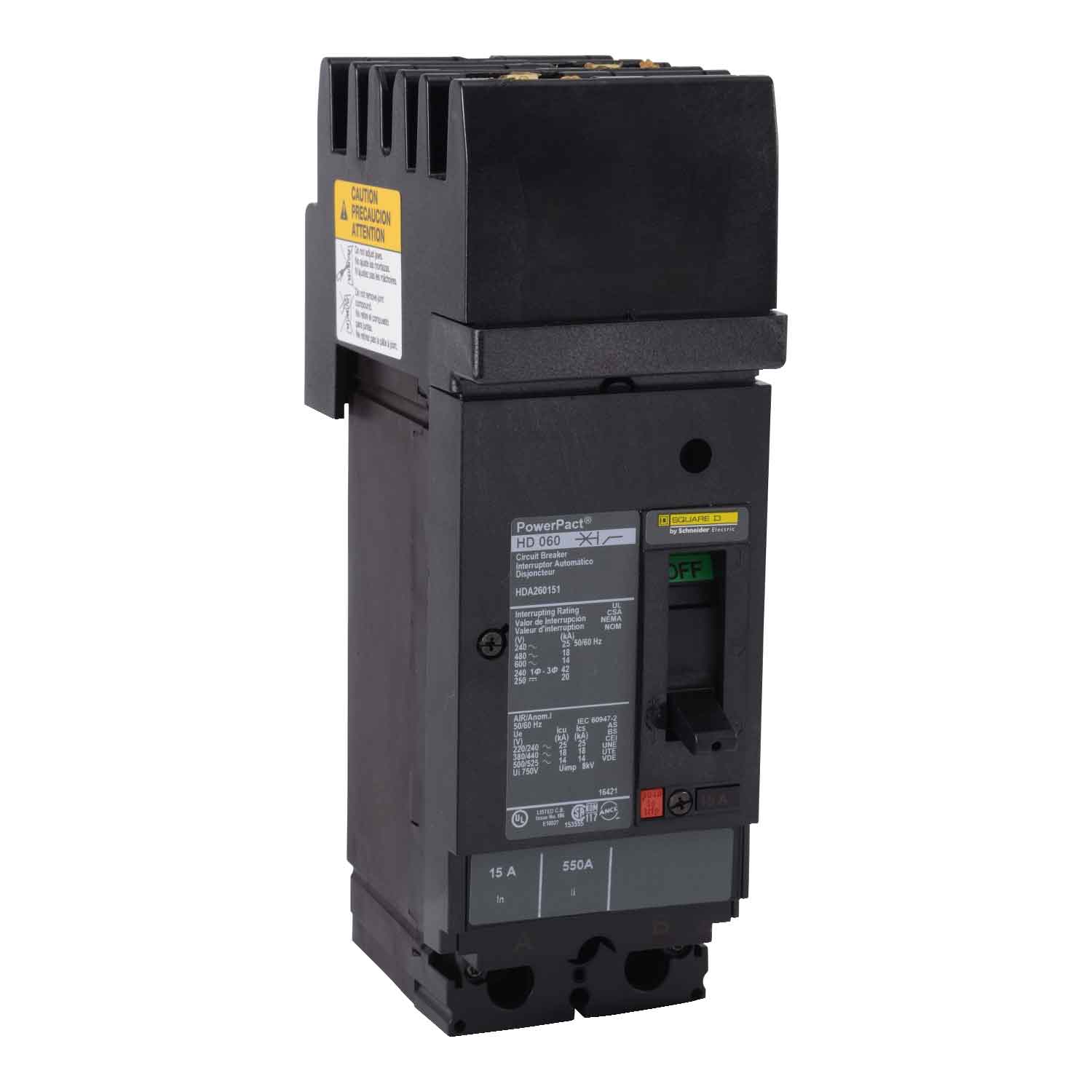

Square D HDA260502 PowerPact Circuit Breaker – 2 Pole – 50A – 600V – Thermal Magnetic – I-Line Plug-In – 18kA @ 480V

The Square D HDA260502 PowerPact Circuit Breaker is a molded case circuit breaker designed to provide dependable overload and short-circuit protection in commercial and industrial electrical distribution systems. Manufactured by Schneider Electric as part of the PowerPact H-Frame family, this 2-pole breaker combines robust thermal-magnetic protection with the convenience of I-Line style plug-in installation.

Rated at 50A and 600V AC, the HDA260502 utilizes a non-interchangeable thermal-magnetic trip unit with Long-Time and Instantaneous (LI) protection functions. The thermal trip element protects circuits from sustained overload conditions, while the magnetic trip mechanism provides rapid response to short-circuit faults, helping minimize equipment damage and system downtime.

This breaker features an A & C phase connection arrangement and is designed for installation in compatible Square D I-Line panelboards and switchboards using an I-Line bracket mounting system. With a standard interrupting capacity of 18kA at 480V AC and suitability for reverse-fed applications, the HDA260502 delivers reliable circuit protection for a broad range of power distribution applications.

Its compact H-Frame construction, toggle operating handle, and durable molded case design make it an ideal choice for branch circuit protection, feeder circuits, and industrial power distribution systems requiring long-term reliability and performance.

Specifications

• Brand: Square D by Schneider Electric
• Manufacturer: Schneider Electric
• Part Number: HDA260502
• Product Family: PowerPact
• Series: HDA Series
• Frame Type: H-Frame
• Device Type: Molded Case Circuit Breaker
• Number of Poles: 2 Pole
• Phase: 1 Phase
• Current Rating: 50A
• Voltage Rating: 600V AC
• Connection Type: I-Line Style Plug-In
• Mounting Mode: I-Line Bracket
• Protection Type: Thermal Magnetic
• Trip Unit Technology: Thermal-Magnetic
• Trip Functions: LI (Long-Time and Instantaneous)
• Control Type: Toggle
• Breaking Capacity Code: D
• Phase Connection: A & C Phase

Electrical Performance

• Rated Current: 50A
• Maximum Voltage: 600V AC
• Interrupting Capacity: 18kA @ 480V AC
• Continuous Current Rating: 80%
• Magnetic Hold Current: 400A
• Trip Unit: Non-Interchangeable
• Overload Protection: Long-Time Thermal Trip
• Short-Circuit Protection: Instantaneous Magnetic Trip
• Suitable for Reverse Feed Applications: Yes
• Standard Interrupting Capacity: Yes

Mechanical & Construction Features

• H-Frame molded case construction
• Compact industrial design
• I-Line plug-in mounting configuration
• Toggle handle operation
• Non-interchangeable thermal-magnetic trip unit
• Durable molded insulating case
• Designed for commercial and industrial power distribution systems
• Reliable long-term performance and protection

Electrical Connections

• Line Connection: I-Line Connection
• Load Connection: Lug Terminals
• Conductor Compatibility: Copper or Aluminum
• Wire Size Range: AWG 14 to AWG 3/0

Dimensions & Weight

• Dimensions (H × W × D): 9.73" × 2.94" × 4.80"
• Weight: 1.36 lbs

Applications

• Commercial electrical distribution systems
• Industrial power distribution equipment
• Branch circuit protection
• Feeder circuit protection
• Square D I-Line panelboards
• Square D I-Line switchboards
• Manufacturing facilities
• Control panels and OEM equipment
• Electrical infrastructure upgrades and replacements

Standards & Certifications

• UL Listed
• CSA Approved
• Suitable for reverse-fed applications
• Manufactured to applicable PowerPact molded case circuit breaker standards
