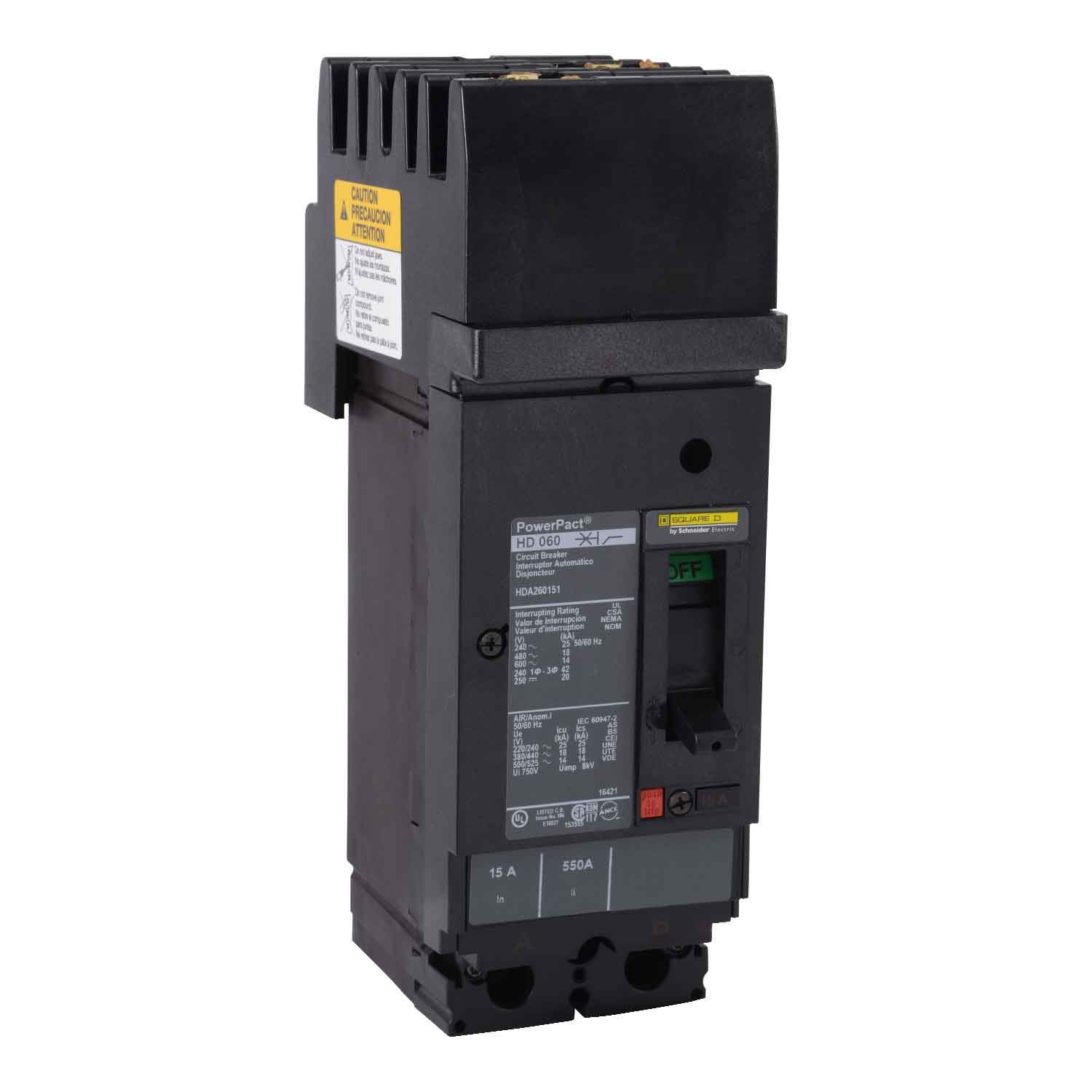

Square D HDA260602 PowerPact Circuit Breaker – 2 Pole – 60A – 600V – Thermal Magnetic – I-Line Plug-In – 18kA @ 480V

The Square D HDA260602 PowerPact Circuit Breaker is a molded case circuit breaker designed to provide reliable overload and short-circuit protection for commercial and industrial electrical distribution systems. Manufactured by Schneider Electric as part of the PowerPact H-Frame series, this 2-pole breaker combines proven thermal-magnetic protection technology with a convenient I-Line style plug-in mounting design for fast installation and maintenance.

Rated at 60A and 600V AC, the HDA260602 features a non-interchangeable thermal-magnetic trip unit with Long-Time and Instantaneous (LI) protection functions. The thermal trip element protects conductors and equipment from sustained overload conditions, while the magnetic trip mechanism provides rapid fault interruption during short-circuit events.

Designed for installation in Square D I-Line panelboards and switchboards, the breaker utilizes an I-Line plug-in connection system that simplifies installation while ensuring secure electrical connections. Its compact H-Frame construction and durable molded case housing provide dependable performance in demanding electrical environments.

With a standard interrupting capacity of 18kA at 480V AC, the HDA260602 is suitable for branch circuit and feeder protection applications where reliable fault interruption and long-term durability are required.

Specifications

• Brand: Square D by Schneider Electric
• Manufacturer: Schneider Electric
• Part Number: HDA260602
• Product Family: PowerPact
• Series: HDA Series
• Frame Type: H-Frame
• Device Type: Molded Case Circuit Breaker
• Number of Poles: 2 Pole
• Phase: 1 Phase
• Current Rating: 60A
• Voltage Rating: 600V AC
• Connection Type: I-Line Style Plug-In
• Mounting Style: I-Line Plug-In
• Protection Type: Thermal Magnetic
• Trip Unit Technology: Thermal-Magnetic
• Trip Functions: LI (Long-Time and Instantaneous)
• Control Type: Toggle Handle

Electrical Performance

• Rated Current: 60A
• Maximum Voltage: 600V AC
• Interrupting Capacity: 18kA @ 480V AC
• Trip Unit: Non-Interchangeable
• Overload Protection: Long-Time Thermal Trip
• Short-Circuit Protection: Instantaneous Magnetic Trip
• Standard Interrupting Capacity: Yes
• Continuous Current Rating: 80%

Mechanical & Construction Features

• H-Frame molded case construction
• Compact industrial design
• I-Line plug-in mounting configuration
• Toggle handle operation
• Non-interchangeable thermal-magnetic trip unit
• Rugged molded insulating case
• Designed for commercial and industrial power distribution systems
• Reliable long-term performance and protection

Electrical Connections

• Line Connection: I-Line Plug-In
• Load Connection: Lug Terminals
• Conductor Compatibility: Copper or Aluminum
• Compatible with Square D I-Line Panelboards and Switchboards
