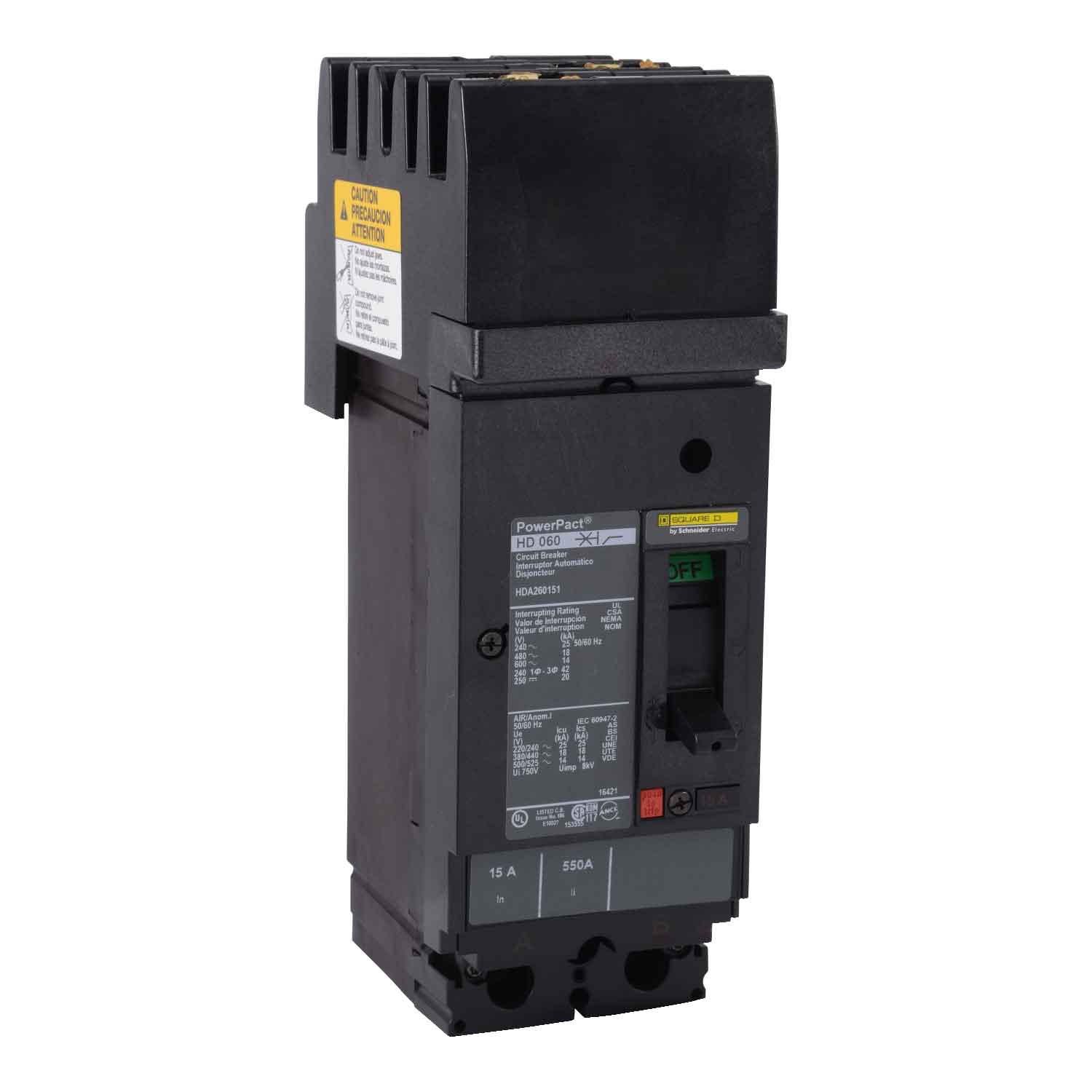

Square D HDA260702 PowerPact Circuit Breaker – 2 Pole – 70A – 600V – Thermal Magnetic – I-Line Plug-In – 18kA @ 480V

The Square D HDA260702 PowerPact Circuit Breaker is a molded case circuit breaker designed for reliable overload and short-circuit protection in commercial and industrial electrical distribution systems. Manufactured by Schneider Electric as part of the PowerPact H-Frame series, this 2-pole breaker combines proven thermal-magnetic trip technology with a convenient I-Line plug-in mounting system for fast installation and dependable performance.

Rated at 70A and 600V AC, the HDA260702 features a non-interchangeable thermal-magnetic trip unit with Long-Time and Instantaneous (LI) protection functions. The thermal element protects against sustained overload conditions, while the instantaneous magnetic element responds quickly to short-circuit faults, helping protect downstream equipment and electrical infrastructure.

Designed for Square D I-Line panelboards and switchboards, the breaker uses an I-Line plug-in connection system for secure mounting and simplified installation or replacement. Its A & C phase connection configuration and rugged H-Frame construction make it suitable for a wide range of power distribution applications.

With a standard interrupting capacity of 18kA at 480V AC and reverse-feed capability, the HDA260702 is well-suited for branch circuit and feeder protection in demanding electrical environments.

Specifications

• Brand: Square D by Schneider Electric
• Manufacturer: Schneider Electric
• Part Number: HDA260702
• Product Family: PowerPact
• Series: HDA Series
• Frame Type: H-Frame
• Device Type: Molded Case Circuit Breaker
• Number of Poles: 2 Pole
• Phase: 1 Phase
• Current Rating: 70A
• Voltage Rating: 600V AC
• Connection Type: I-Line Style Plug-In
• Mounting Mode: I-Line Bracket
• Protection Type: Thermal Magnetic
• Trip Unit Technology: Thermal-Magnetic
• Trip Functions: LI (Long-Time and Instantaneous)
• Control Type: Toggle
• Breaking Capacity Code: D
• Phase Connection: A & C Phase

Electrical Performance

• Rated Current: 70A
• Maximum Voltage: 600V AC
• Interrupting Capacity: 18kA @ 480V AC
• Continuous Current Rating: 80%
• Magnetic Hold Current: 800A
• Trip Unit: Non-Interchangeable
• Overload Protection: Long-Time Thermal Trip
• Short-Circuit Protection: Instantaneous Magnetic Trip
• Suitable for Reverse Feed Applications: Yes

Mechanical & Construction Features

• H-Frame molded case construction
• Compact industrial design
• I-Line plug-in mounting configuration
• Toggle handle operation
• Non-interchangeable thermal-magnetic trip unit
• Durable molded insulating case
• Designed for commercial and industrial power distribution systems
• Long service life and reliable operation

Electrical Connections

• Line Connection: I-Line Plug-In
• Load Connection: Lug Terminals
• Conductor Compatibility: Copper or Aluminum
• Wire Size Range: AWG 14 to AWG 3/0

Dimensions & Weight

• Dimensions (H × W × D): 9.73" × 2.94" × 4.80"
• Weight: 1.36 lbs

Applications

• Commercial electrical distribution systems
• Industrial power distribution equipment
• Branch circuit protection
• Feeder circuit protection
• Square D I-Line panelboards
• Square D I-Line switchboards
• Manufacturing facilities
• OEM control panels and equipment
• Electrical infrastructure upgrades and maintenance projects

Standards & Certifications

• UL Listed
• CSA Approved
• Suitable for reverse-fed applications
• Manufactured to applicable PowerPact molded case circuit breaker standards

Environmental & Installation Features

• Designed for indoor electrical distribution applications
• Compatible with Square D I-Line systems
• Space-efficient installation in panelboards and switchboards
• Reliable operation in demanding commercial and industrial environments
• Durable construction for long-term overload and short-circuit protection
• Engineered for dependable performance in modern electrical systems
