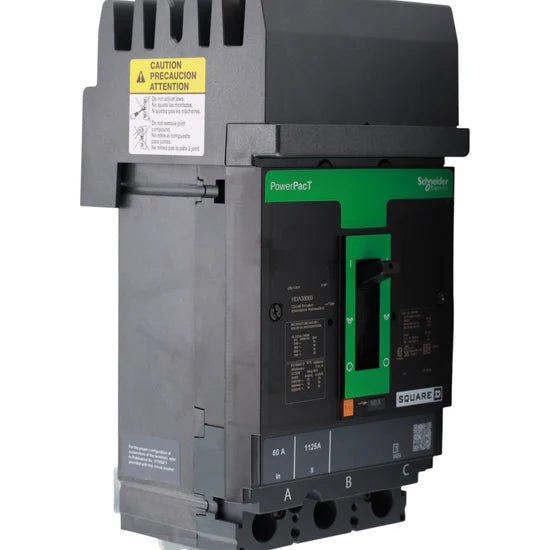

Square D HDA36060 PowerPacT H 60A 3-Pole 600VAC Thermal-Magnetic I-Line Circuit Breaker (ABC Phase)

The Square D HDA36060, manufactured by Schneider Electric, is a 60 Amp, 3-pole thermal-magnetic circuit breaker from the PowerPacT H series. Designed for 600VAC systems, this I-Line breaker provides dependable overload and short-circuit protection for commercial and industrial power distribution equipment. It is 80% rated and configured for ABC phase connection.

Electrical Ratings

• Amperage: 60 Amps
• Poles: 3-Pole
• Voltage Rating: 600 Volts AC
• Interrupt Rating: 14 kAIC
• Breaker Type: Thermal-Magnetic
• Rating: 80% Rated
• Phase Configuration: ABC

Mounting & Connections

• Mounting Mode: I-Line
• Line Connection: I-Line bus connection
• Load Connection: Lugs
• Wire Size Range: AWG 14 to AWG 3/0 (Copper/Aluminum)
• Tightening Torque:
• 44.3 lb-in (AWG 14–10)
• 123.9 lb-in (AWG 8–3/0)

Certifications & Compliance

• UL Listed
• CSA Certified
• NOM Certified
• IEC 60947-2
• HACR Rated
