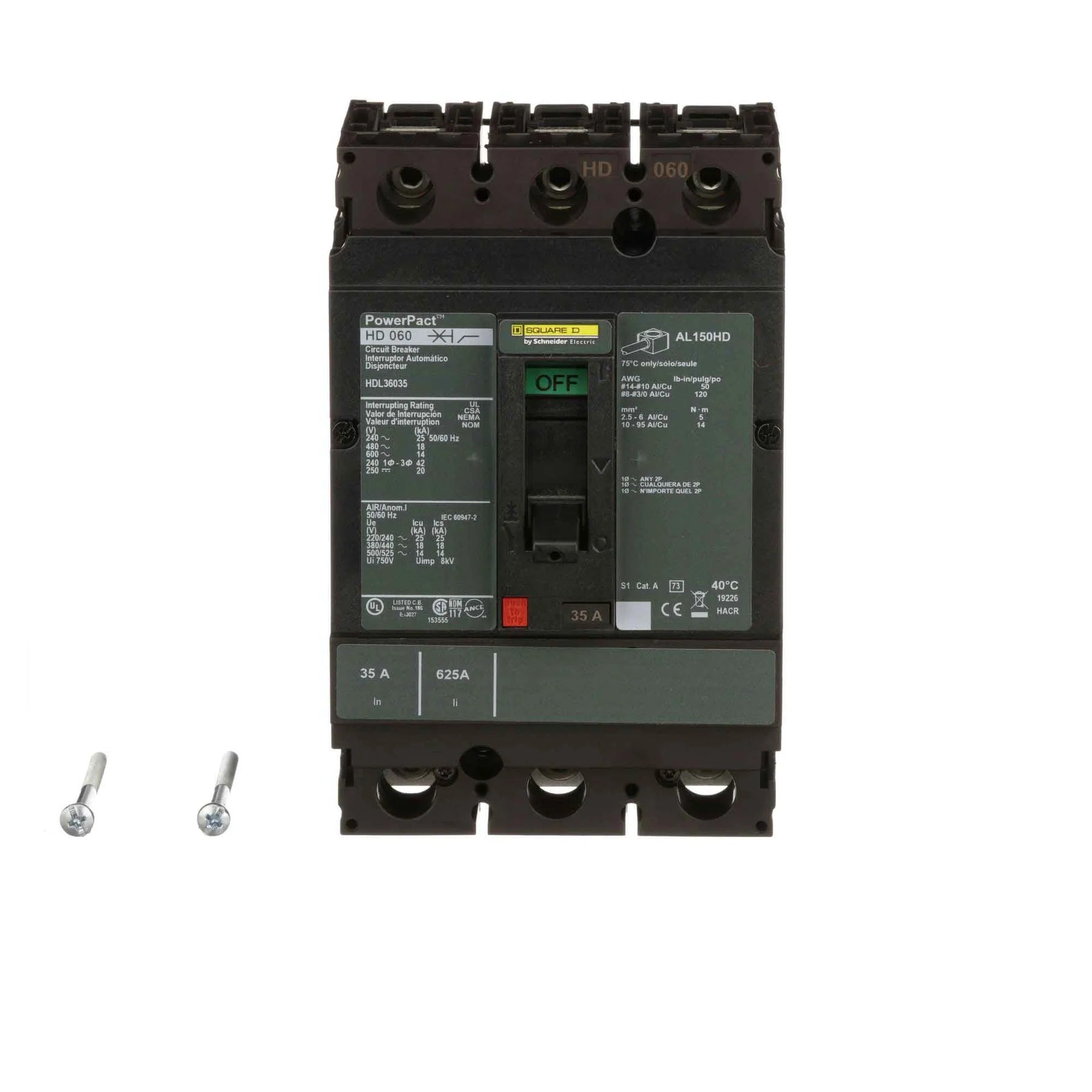

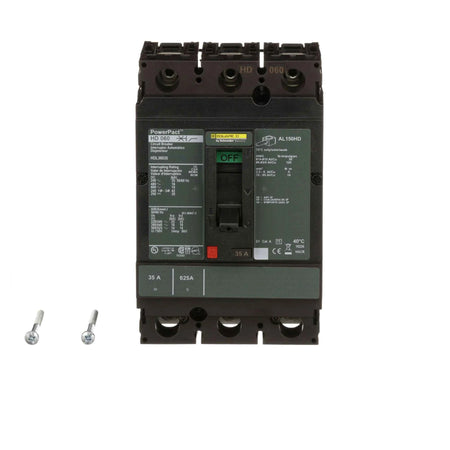

Square D HDL36035 35 Amp 3-Pole Molded Case Circuit Breaker – Feed-Thru – 600V AC

The Schneider Electric Square D PowerPact HDL36035 is a 35 Amp, 3-pole molded case circuit breaker designed for reliable protection in industrial and commercial 3-phase electrical systems. Built on the H-Frame PowerPact platform, it provides thermal-magnetic protection with LI (Long-Time and Instantaneous) trip functionality.

It is engineered for feed-thru installation and supports reverse-fed applications, making it suitable for flexible panel configurations and safe power distribution.

Electrical Ratings

• Current Rating: 35 Amps
• Voltage Rating: 600 Volts AC
• Phase: 3-Phase (3PH)
• Interrupting Capacity: 18 kA @ 480V AC
• Frame Type: H-Frame
• Breaking Capacity: Standard H-Frame industrial rating
• Application Category: Molded Case Circuit Breaker (MCCB)

Breaker & Protection Features

• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Number of Poles: 3-Pole
• Trip Unit Technology: Thermal-Magnetic
• Trip Functions: LI (Long-Time and Instantaneous protection)
• Protection Type: Overload and short-circuit protection
• Trip Unit: Non-interchangeable
• Control Type: Standard toggle mechanism

Mounting & Connection

• Connection Type: Feed-Thru
• Electrical Connection: Line and load lug terminals
• Installation Type: H-Frame unit mount system
• Compatibility: PowerPact H-Frame panelboards
• Reverse Feed Compatible: Yes

Wiring & Termination

• Terminal Type: Line and load side lugs
• Wire Size Range: Industrial copper/aluminum conductors (application dependent)
• Wiring Style: Feed-through configuration for flexible installation layouts

Physical Specifications

• Height: 3.39 in
• Width: 4.09 in
• Depth: 6.42 in
• Weight: 4.85 lb

Certifications & Standards

• UL Listed
• CSA Approved
• Designed for industrial-grade electrical systems
• Complies with international molded case breaker standards

Additional Features

• Dual-break rotating contact system reduces peak fault current
• Built-in push-to-trip manual test button
• Reliable thermal-magnetic LI protection
• Feed-thru design for installation flexibility
• Suitable for industrial and commercial 3-phase distribution systems

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Series: PowerPact H-Frame
• Model: HDL36035
