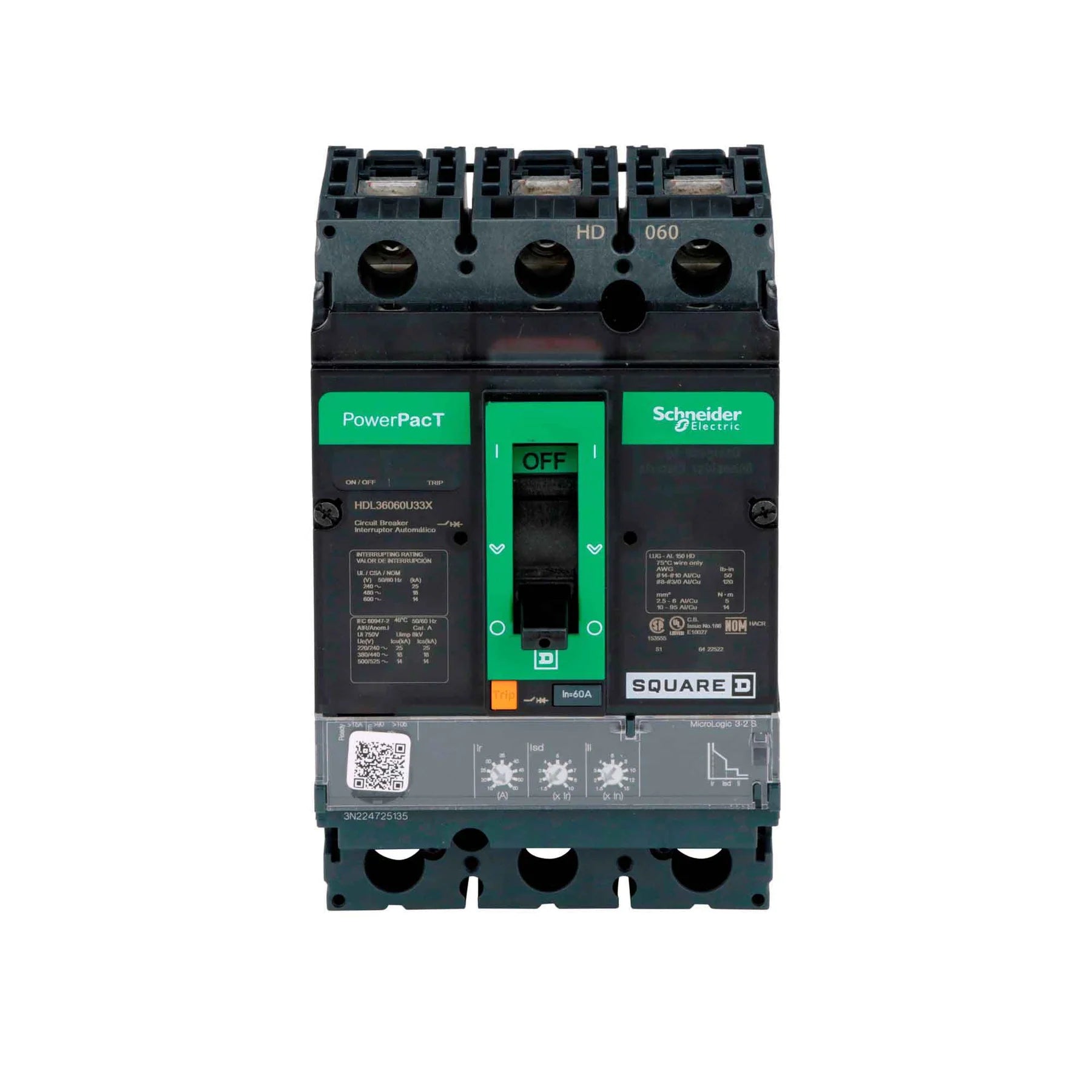

Square D HDL36060U33X 60 Amp 3-Pole Molded Case Circuit Breaker – Feed-Thru – 600V

The Schneider Electric Square D PowerPact HDL36060U33X is a 60 Amp, 3-pole molded case circuit breaker designed for high-performance protection in industrial and commercial 3-phase electrical systems. Built on the H-Frame PowerPact platform, it features advanced solid-state electronic protection with LSI (Long-Time, Short-Time, Instantaneous) trip functionality.

It is suitable for feed-thru installations and supports reverse-fed configurations, making it highly flexible for modern panelboard designs.

Electrical Ratings

• Current Rating: 60 Amps
• Voltage Rating: 600 Volts AC
• Phase: 3-Phase (3PH)
• Interrupting Capacity: 18 kA @ 480V AC
• Frame Type: H-Frame
• Application Category: Molded Case Circuit Breaker (MCCB)
• Breaking Capacity: Standard industrial rating

Breaker & Protection Features

• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Number of Poles: 3-Pole
• Trip Unit Technology: Solid State electronic trip unit
• Trip Functions: LSI (Long-Time, Short-Time, Instantaneous)
• Protection Type: Advanced electronic solid-state protection
• Trip Unit: Non-interchangeable
• Control Type: Toggle mechanism

Mounting & Connection

• Connection Type: Feed-Thru
• Electrical Connection: Line and load lug terminals
• Installation Type: H-Frame PowerPact panel systems
• Compatibility: PowerPact H-Frame distribution panels
• Reverse Feed Compatible: Yes
• Flexible Use: Can be applied in 2-pole configurations where required

Wiring & Termination

• Terminal Type: Line and load side lug connections
• Wire Size Range: Industrial copper/aluminum conductors (application dependent)
• Wiring Style: Feed-through configuration for flexible installation layouts

Physical Specifications

• Height: 3.39 in
• Width: 4.09 in
• Depth: 6.42 in
• Weight: 4.85 lb

Certifications & Standards

• UL Listed
• CSA Approved
• Designed for industrial-grade electrical distribution systems
• Complies with international MCCB safety and performance standards
