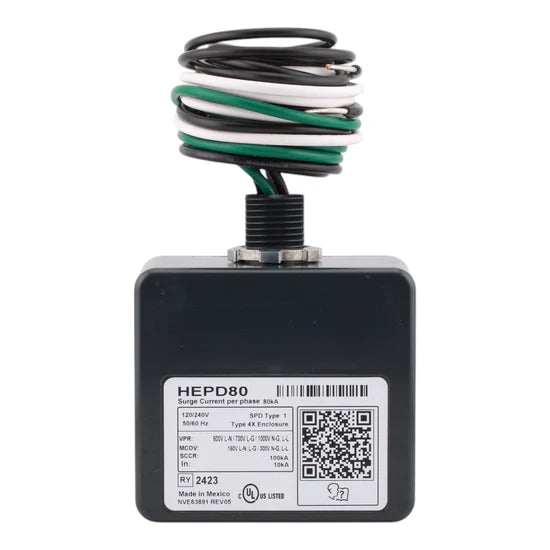

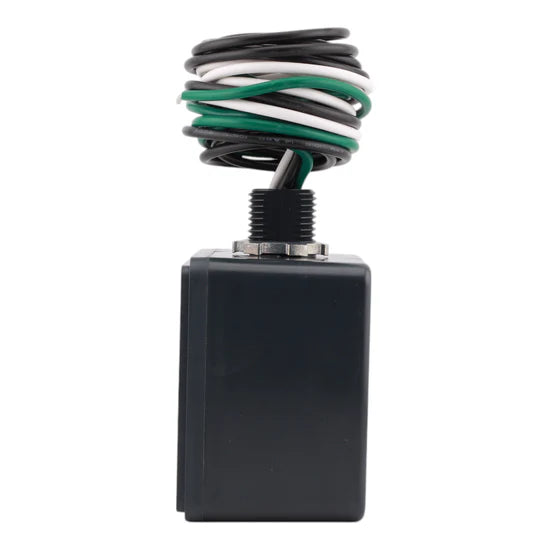

Square D HEPD80 Surge Protective Device – External Mount – 120/240V
Couldn't load pickup availability
Ask an expert
Square D HEPD80 Surge Protective Device – External Mount – 120/240V delivers robust whole-home surge protection for single-phase electrical systems. Designed as a Type 1 SPD, it safeguards sensitive electronics and electrical equipment from damaging transient voltage surges. Featuring an 80 kA per phase surge rating, NEMA 4X enclosure, and LED status indicator, this unit is ideal for residential service entrance and branch panel protection.
Voltage and Rating:
- Voltage Rating: 120/240 Volts AC
- Surge Current: 80 kA per phase
- Nominal Discharge Current: 10 kA
- Voltage Protection Rating:
- 600V L-N
- 1000V L-L
- 900V N-G
Key Specifications:
- Device Type: Surge Protective Device (Type 1 SPD)
- Number of Phases: 1-Phase
- Wiring Configuration: 3-Wire (Isolated Ground)
- Mounting Type: External Mount
- Application: Whole-home surge protection
- Enclosure Rating: NEMA 4X

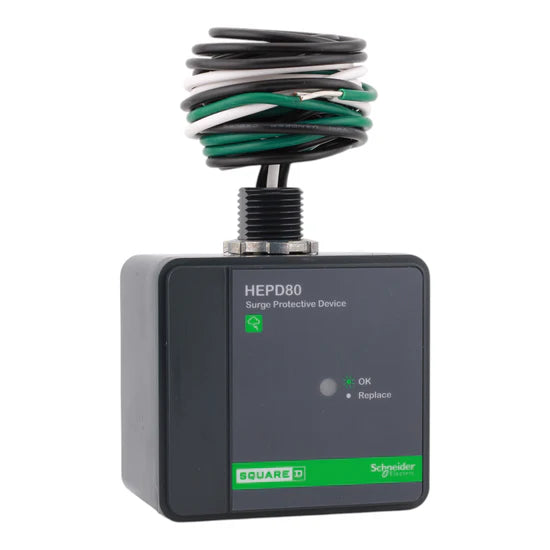

- Status Indicator: LED normal-operation light
Technical Specifications:
- Protection Mode: L-N, L-L, N-G

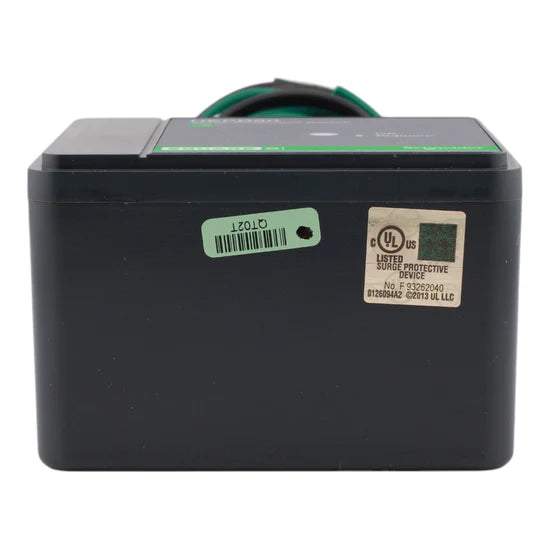

- Certifications: UL 1449 (Type 1 SPD), cUL
Product Data:
-
- Manufacturer: Schneider Electric
- Brand: Square D
- Model Number: HEPD80
- UPC: 785901008729
- Dimensions (H × W × D): 3.23 in × 3.72 in × 2.10 in
- Weight: 17.12 oz
- Type Circuit Breakers
- Vendor Square D
- Brand Square D
