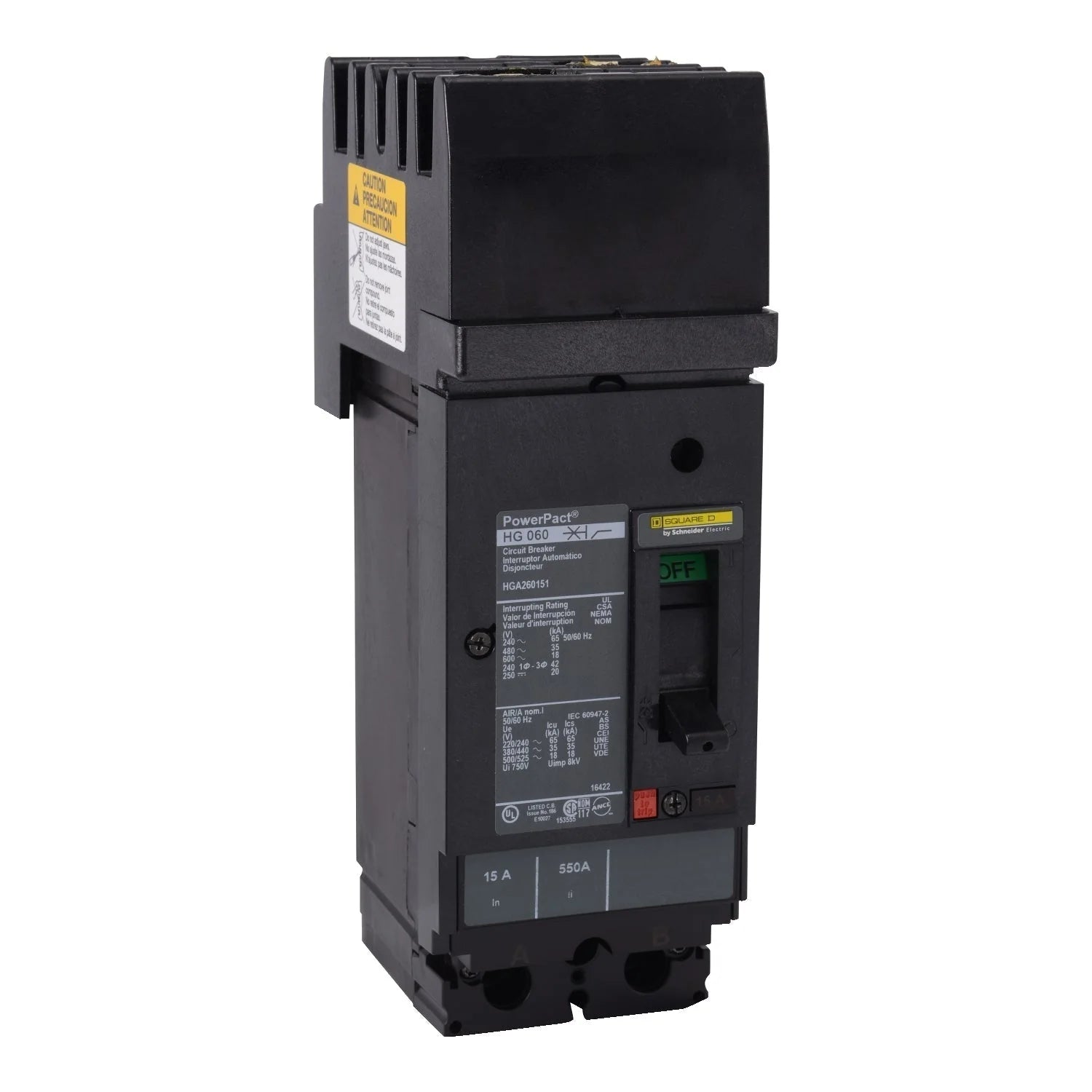

Square D HGA260201 20 Amp 2-Pole Molded Case Circuit Breaker – I-Line Plug-In – 600V AC

The Schneider Electric Square D PowerPact HGA260201 is a 20 Amp, 2-pole molded case circuit breaker designed for industrial I-Line panelboard systems. It is used for reliable overload and short-circuit protection in power distribution applications and is part of the PowerPact H-frame breaker family.

This model is a plug-in I-Line style breaker with thermal-magnetic protection and is suitable for reverse-fed applications in compatible Square D panelboards.

Electrical Ratings

• Current Rating: 20 Amps
• Voltage Rating: 600V AC (also rated for DC in some configurations)
• Phase: 1-Phase (AB connection in 2-pole configuration)
• Frequency: 50/60 Hz
• Interrupting Capacity:
  • 18 kA @ 600V AC
  • 35 kA @ 480V AC
  • 65 kA @ 240V AC

Breaker & Protection Features

• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Frame Type: H-Frame (PowerPact H series)
• Number of Poles: 2-Pole
• Trip Unit Technology: Thermal-Magnetic
• Trip Functions: LI (Long-Time & Instantaneous protection)
• Protection Type: Overload and short-circuit protection
• Control Type: Toggle mechanism
• Current Limiting: Yes (high fault current reduction design)

Mounting & Connection

• Connection Type: I-Line Style Plug-In
• Line Connection: I-Line bus connection
• Load Connection: Lug terminals
• Mounting Style: Panelboard / switchboard I-Line bracket system
• Application: Distribution equipment and industrial control panels

Wiring & Termination

• Wire Size Range: AWG 14 to 3/0 (Cu/Al conductors)
• Terminal Type: Mechanical lugs (load side)
• Installation Type: Plug-in breaker for I-Line panelboards

Physical Specifications

• Height: ~6.4 in
• Width: ~2.74 in
• Depth: ~3.4–4.8 in (varies by configuration)
• Weight: ~2.5–4 lbs (varies by listing/configuration)

Certifications & Standards

• UL Listed
• CSA Certified
• IEC compliant (varies by configuration)
• NOM certified (regional variants)

Additional Features

• I-Line plug-in mounting for fast installation
• Thermal-magnetic LI protection system
• High interrupting capacity for industrial fault conditions
• Suitable for reverse-feed applications
• Compatible with Square D PowerPact H-frame panel systems
• Designed for industrial and commercial distribution panels

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Series: PowerPact H-Frame
• Model: HGA260201
