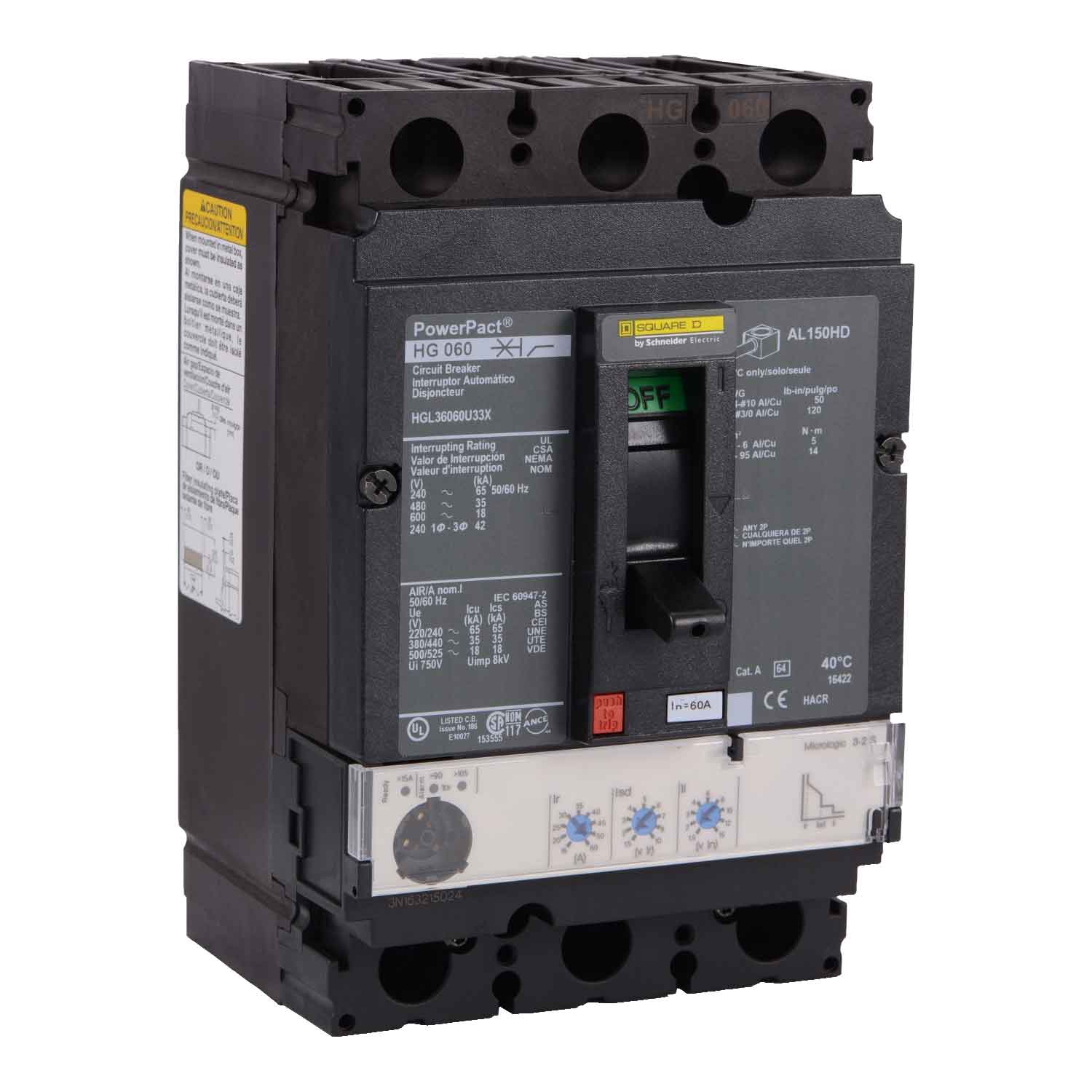

Square D HGL36060U33X 60 Amp 3-Pole Molded Case Circuit Breaker – Feed-Thru – 600V AC

The Schneider Electric Square D PowerPact HGL36060U33X is a 60 Amp, 3-pole molded case circuit breaker designed for industrial and commercial 3-phase distribution systems. Built on the H-Frame PowerPact platform, it provides advanced solid-state electronic protection with LSI (Long-Time, Short-Time, Instantaneous) trip functions.

It is engineered for feed-thru installation and supports reverse-fed applications, offering flexibility and high reliability in modern electrical panel configurations.

Electrical Ratings

• Current Rating: 60 Amps
• Voltage Rating: 600V AC
• Phase: 3-Phase (3PH)
• Interrupting Capacity: 35 kA @ 480V AC
• Frame Type: H-Frame
• Application Category: Molded Case Circuit Breaker (MCCB)
• Breaking Capacity Code: High interrupting capacity class

Breaker & Protection Features

• Breaker Type: MCCB (Molded Case Circuit Breaker)
• Number of Poles: 3-Pole
• Trip Unit Technology: Solid State electronic trip unit
• Trip Functions: LSI (Long-Time, Short-Time, Instantaneous)
• Protection Type: Advanced electronic protection system
• Trip Unit: Non-interchangeable Micrologic-style unit
• Control Type: Toggle mechanism

Mounting & Connection

• Connection Type: Feed-Thru
• Electrical Connection: Line and load lug terminals
• Installation Type: H-Frame PowerPact system
• Compatibility: PowerPact H-Frame distribution panels
• Reverse Feed Compatible: Yes
• Dual-use Capability: Can be used in 2-pole configurations where required

Wiring & Termination

• Terminal Type: Line and load side lugs
• Wire Size Range: Industrial copper/aluminum conductors (application dependent)
• Wiring Style: Feed-through configuration for flexible installation layouts

Physical Specifications

• Height: 3.39 in
• Width: 4.09 in
• Depth: 6.42 in
• Weight: 4.85 lb

Certifications & Standards

• UL Listed
• CSA Approved
• Designed for industrial-grade electrical distribution systems
• Complies with international MCCB safety and performance standards

Additional Features

• Solid-state electronic LSI protection for precise coordination
• High interrupting capacity (35kA @ 480V)
• Feed-thru design for installation flexibility
• Suitable for reverse-fed applications
• Reliable performance in demanding industrial environments

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Series: PowerPact H-Frame
• Model: HGL36060U33X
