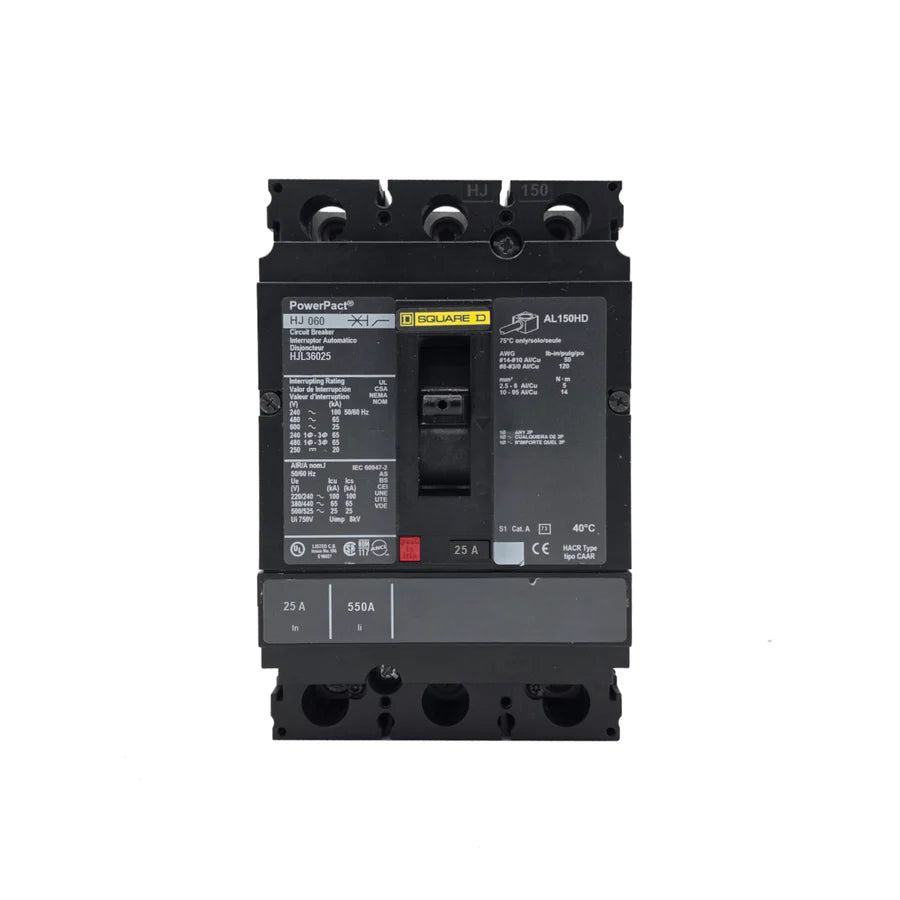

Square D HJL36025 25A 3 Pole Molded Case Circuit Breaker – Bolt On – 600V

In stock
SKU: HJL36025-NS GTIN/UPC: 785901706717
$999.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D HJL36025 is a PowerPact molded case circuit breaker designed for reliable protection in industrial and commercial electrical distribution systems. Featuring a thermal magnetic non-interchangeable trip unit, this breaker provides accurate overload and short-circuit protection to maintain electrical safety and system reliability. Its HJL frame construction combined with a bolt-on mounting configuration ensures secure installation, durable performance, and long operational life in demanding applications. Rated for both AC and DC systems up to 600V, the HJL36025 offers high interrupting capability for advanced fault protection in critical power distribution environments.

Product Specifications

  • Brand: Square D
  • Model: HJL36025
  • Product Type: Molded Case Circuit Breaker (MCCB)
  • Product Series: PowerPact
  • Frame Type: HJL / H Frame
  • Rated Current: 25 Ampere
  • Number of Poles: 3 Pole
  • Trip Unit Type: Thermal Magnetic Non-Interchangeable
  • Mounting Type: Bolt On
  • Operating Temperature Reference: 40°C
  • Trip Setting: 350–750
  • Terminal Type: Line and Load End Terminals Standard
  • Application: Commercial and Industrial Power Distribution

Technical Specifications

  • Interrupting Capacity: 100kA @ 240VAC
  • Interrupting Capacity: 65kA @ 480VAC
  • Interrupting Capacity: 25kA @ 600VAC
  • Interrupting Capacity: 20kA @ 250VDC
  • Maximum Voltage Rating: 600VAC
  • Protection Type: Overload and Short Circuit Protection
  • Connection Type: Bolt-On Connection
  • Frame Construction: Molded Case Design
  • Standard Compliance: Industrial Circuit Protection Standards

Voltage and Ratings

  • Rated Operational Voltage: 240VAC / 480VAC / 600VAC / 250VDC
  • Maximum Voltage Capacity: 600VAC
  • Current Rating: 25A
  • Pole Configuration: 3 Pole
  • Interrupting Rating at 240VAC: 100 Kiloampere
  • Interrupting Rating at 480VAC: 65 Kiloampere
  • Interrupting Rating at 600VAC: 25 Kiloampere
  • Interrupting Rating at 250VDC: 20 Kiloampere

Product Data

  • Manufacturer: Square D
  • Product Series: PowerPact HJL Frame
  • Product Condition Support: New Surplus & Certified Reconditioned
  • Warranty: 1 Year In-House Warranty
  • Installation Type: Bolt-On Mounting
  • Terminal Configuration: Line and Load End Terminals Standard
  • Product Use: Electrical Distribution and Circuit Protection Systems

Important Note

Product images are intended for identification purposes only and may represent a standard base model configuration. Accessories purchased together with the breaker can be professionally installed at no additional cost when detailed configuration instructions are provided during checkout. Installation, maintenance, and servicing should only be carried out by qualified electrical personnel in accordance with applicable electrical codes and manufacturer guidelines. The included one-year warranty covers repairs, labor, replacement parts, and standard shipping associated with recertification, excluding damage caused by misuse, improper installation, or normal operational wear and tear.
