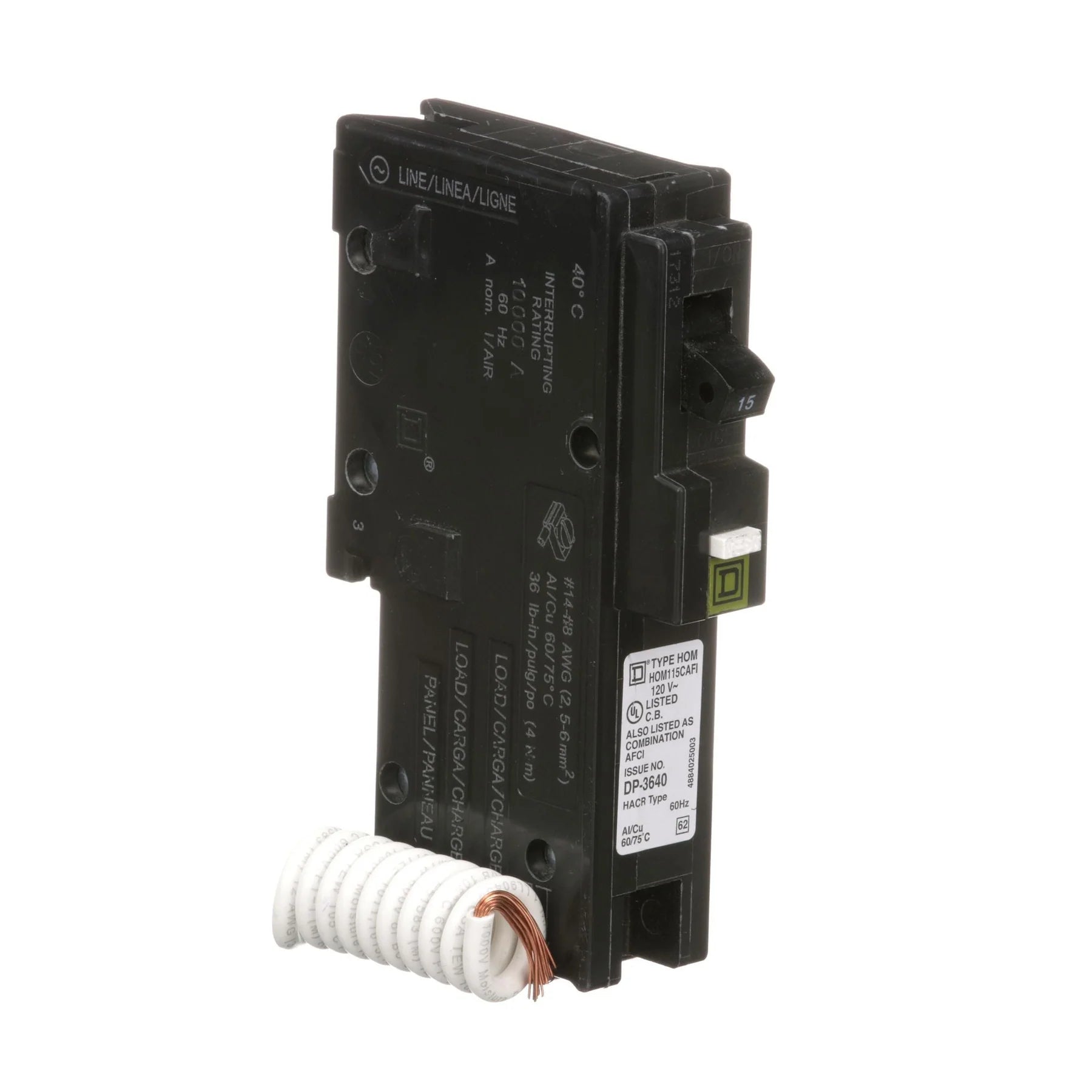

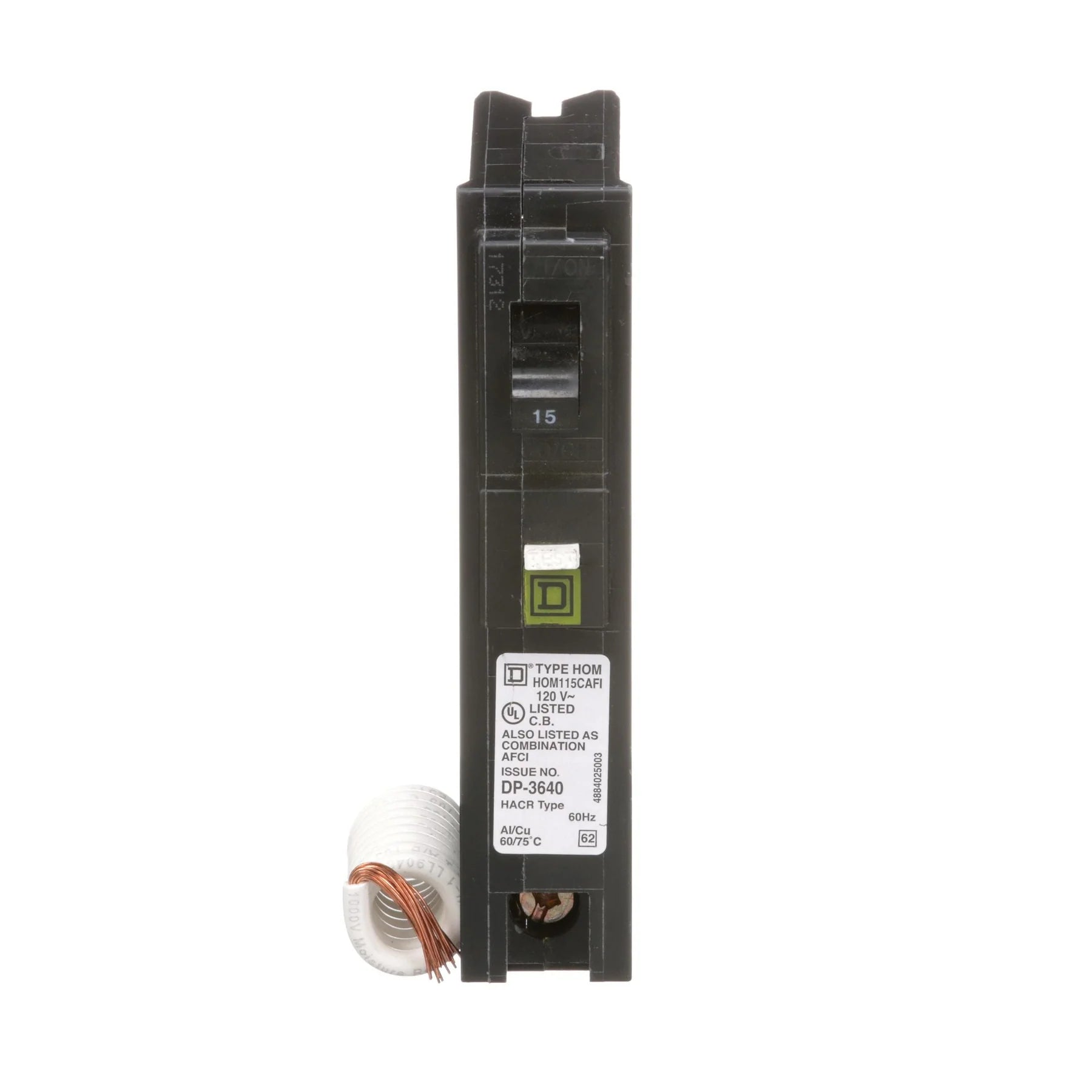

Square D HOM115CAFI Homeline CAFCI Breaker | 15A, 1-Pole, 120V

The Square D HOM115CAFI is a 15 Amp, single-pole combination arc-fault circuit interrupter (CAFCI)engineered for use in Square D Homeline load centers. This breaker provides critical fire safety by detecting both parallel and series arc faults—incidents often caused by pinched wires or loose connections—while also offering standard thermal-magnetic protection against overloads and short circuits.

This model features a pigtail neutral (a white wire that connects to the panel's neutral bar) and is designed for easy plug-on installation. It includes Time-Saver Diagnostics, which uses an LED indicator to display a specific blink pattern after a trip. This helps you determine if the trip was caused by an arc fault or a simple overload, significantly reducing troubleshooting time.

Key Features

• Protection Type: Combination Arc Fault Circuit Interrupter (CAFCI)

• Amperage: 15 A

• Voltage: 120 V AC

• Poles: 1

• Interrupting Rating: 10 kAIC

• Mounting Style: Plug-on with pigtail neutral

• Diagnostics: Time-Saver Diagnostics for quick fault identification

• Applications: Residential bedroom, living room, and dining room circuits as required by the NEC

Technical Specifications

• Manufacturer: Square D (Schneider Electric)

• Catalog Number: HOM115CAFI

• UPC Number: 785901439721

• Wire Size: #14 - #8 AWG (Copper or Aluminum)

• Certifications: UL Listed, CSA Certified, HACR Rated

• Dimensions: 3.13" Height x 1.0" Width x 2.98" Depth
