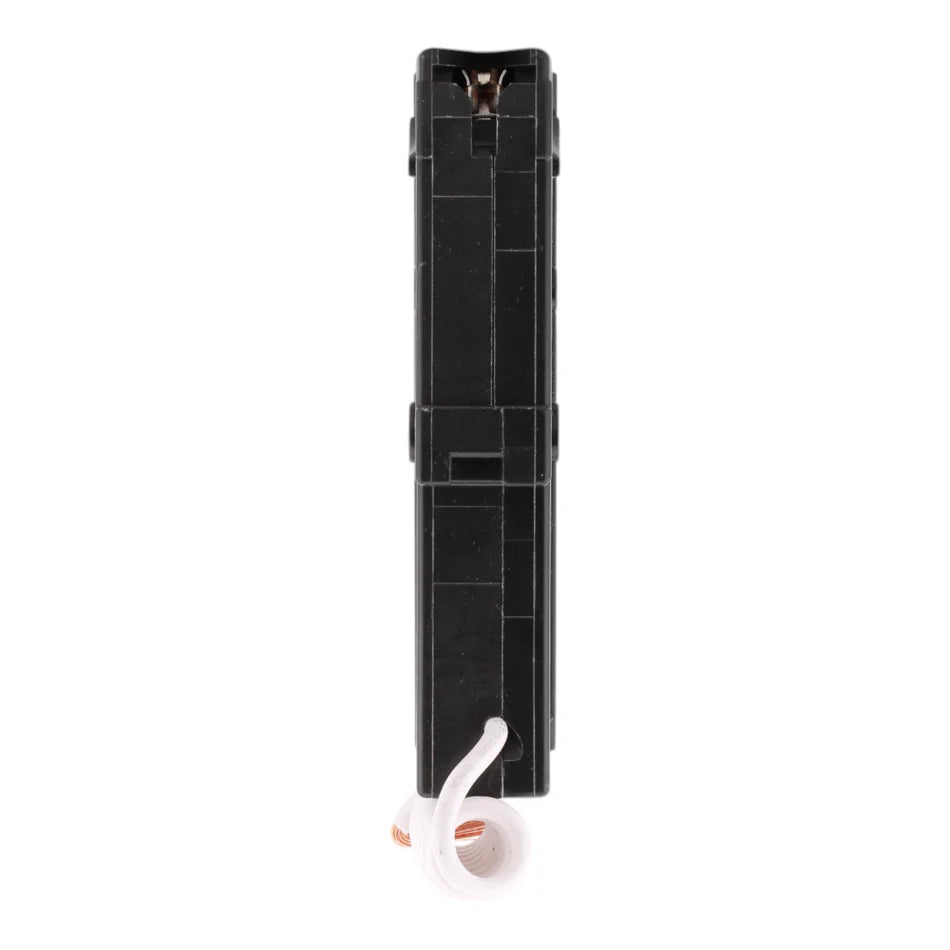

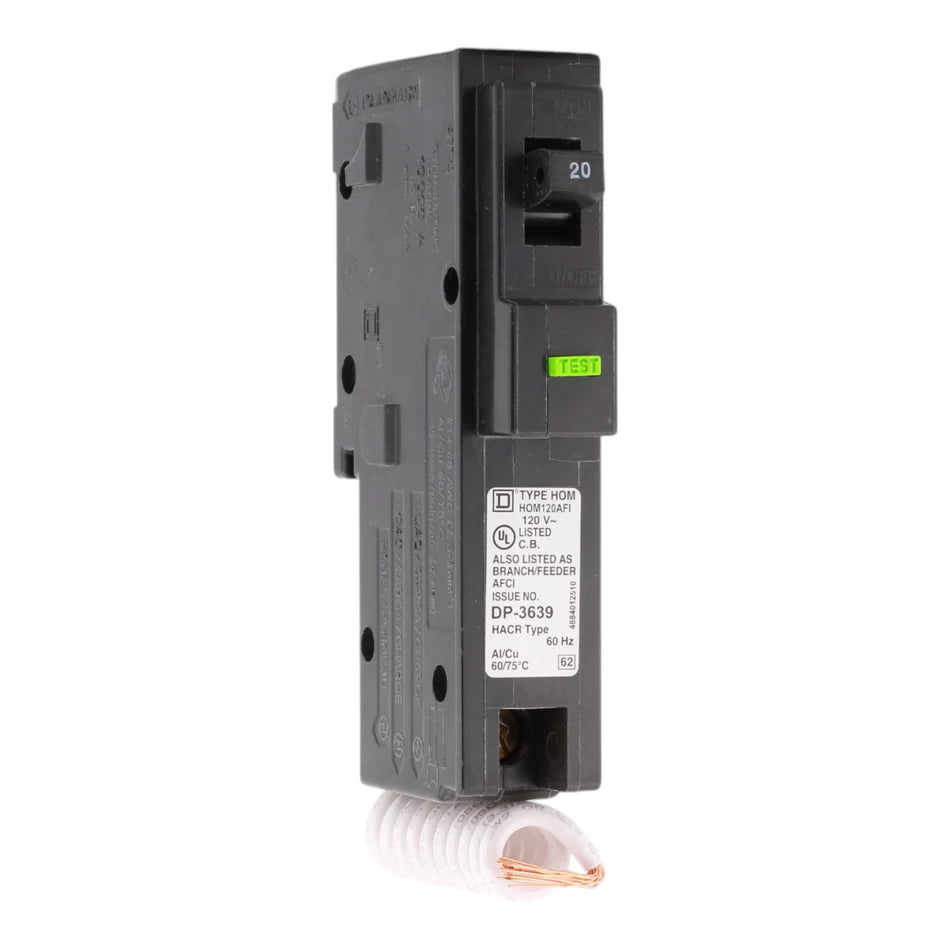

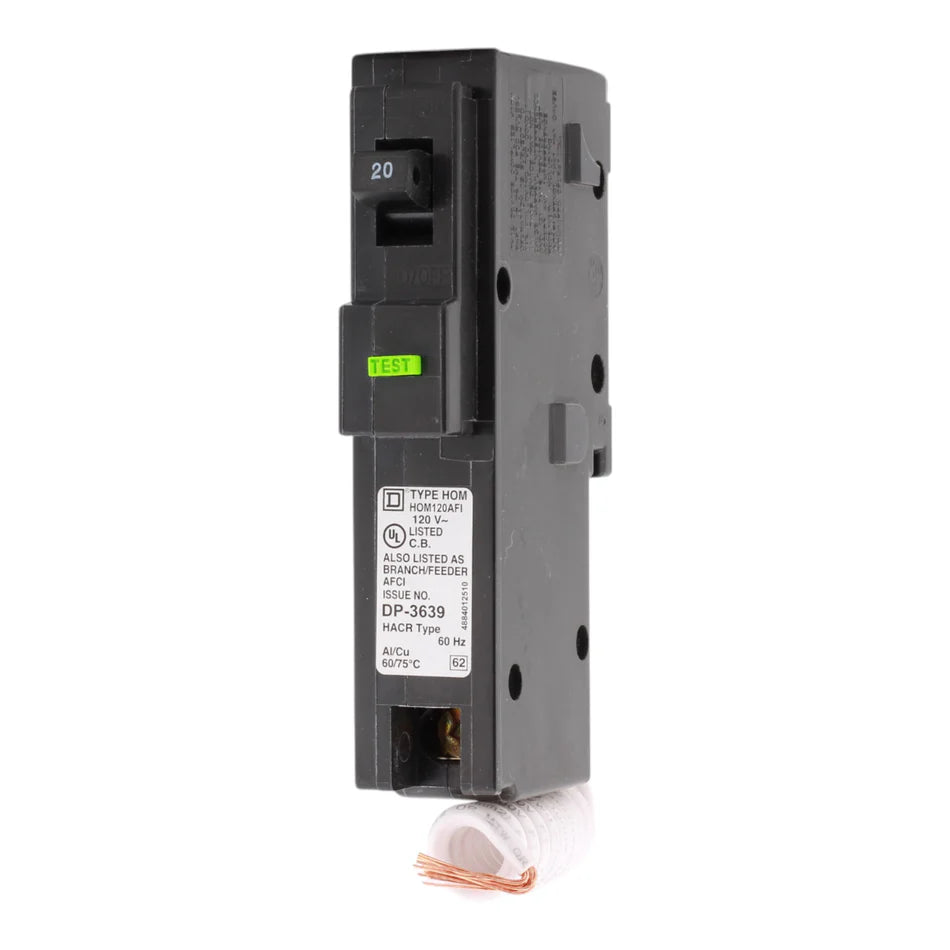

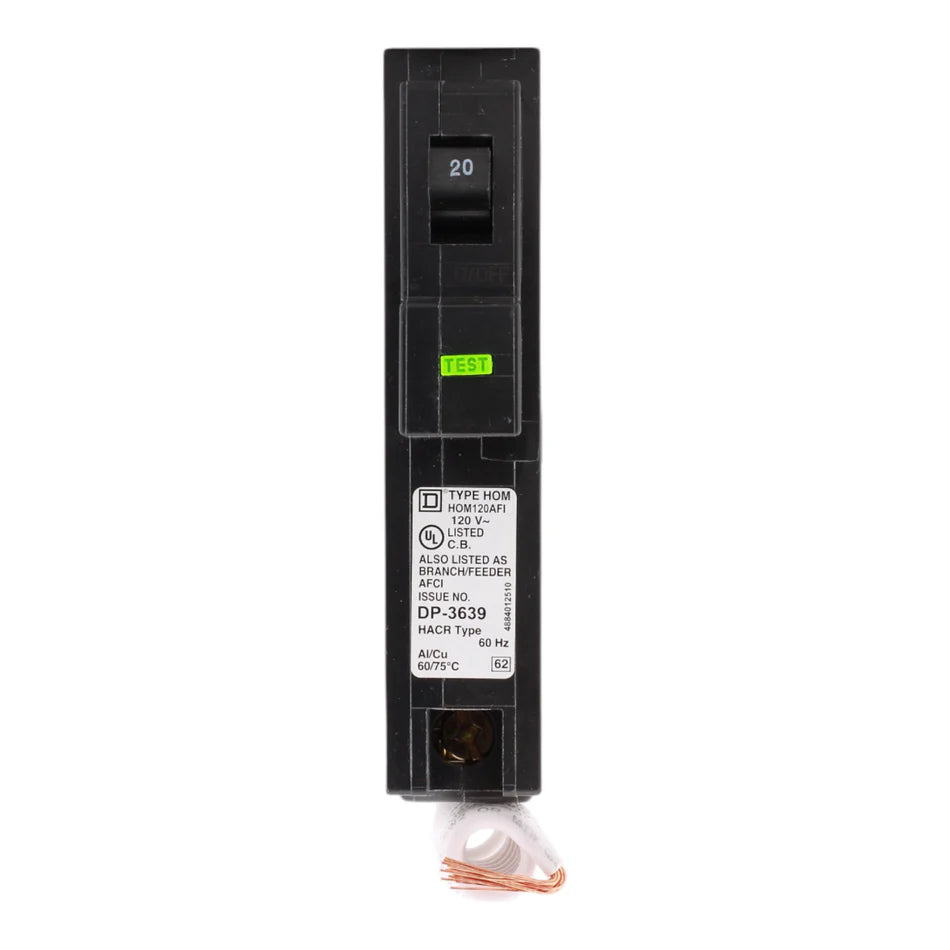

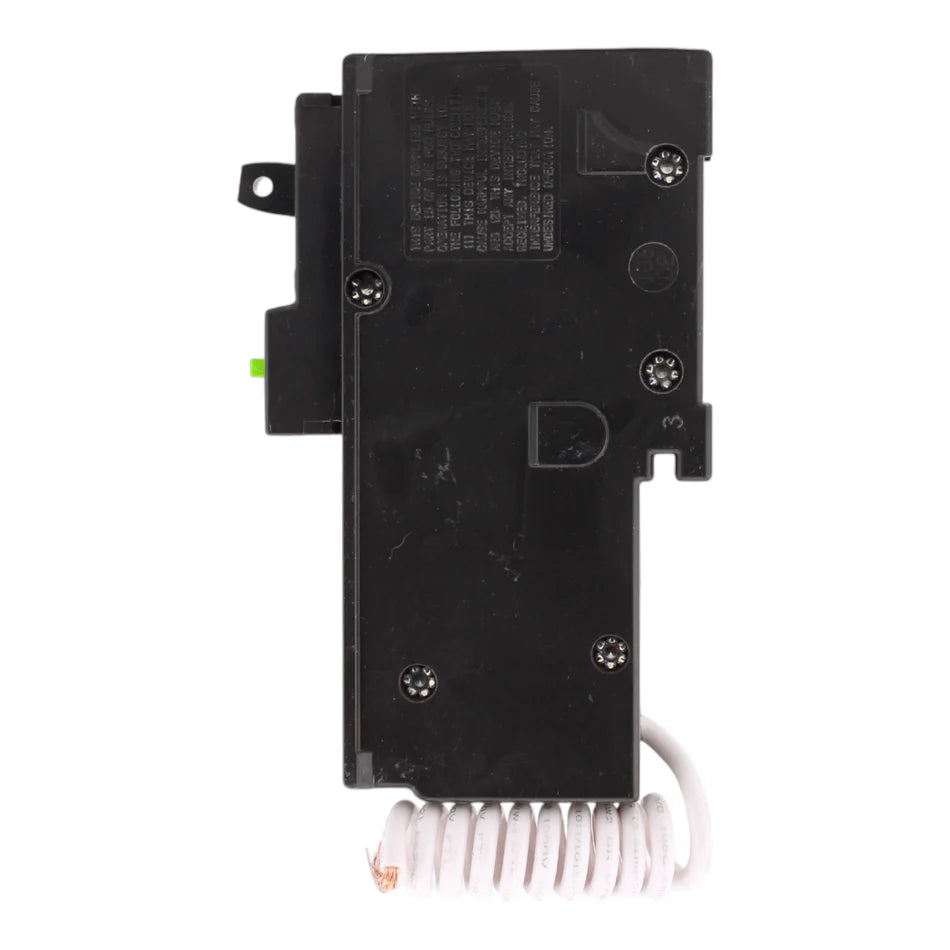

Square D HOM120AFI 20 Amp Single-Pole AFCI Circuit Breaker – Pigtail Neutral – 120V

The HOM120AFI AFCI Circuit Breaker from Square D is designed to provide reliable arc-fault protection, helping to reduce the risk of electrical fires caused by damaged wiring or arcing conditions. Engineered for use in Square D Homeline load centers, this single-pole breaker features a pigtail neutral connection for safe, code-compliant residential installations.

Electrical Ratings

• Current Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Number of Poles: 1-Pole
• Interrupt Rating: 10 kA AIR

Breaker Details

• Breaker Type: Arc Fault Circuit Interrupter (AFCI)

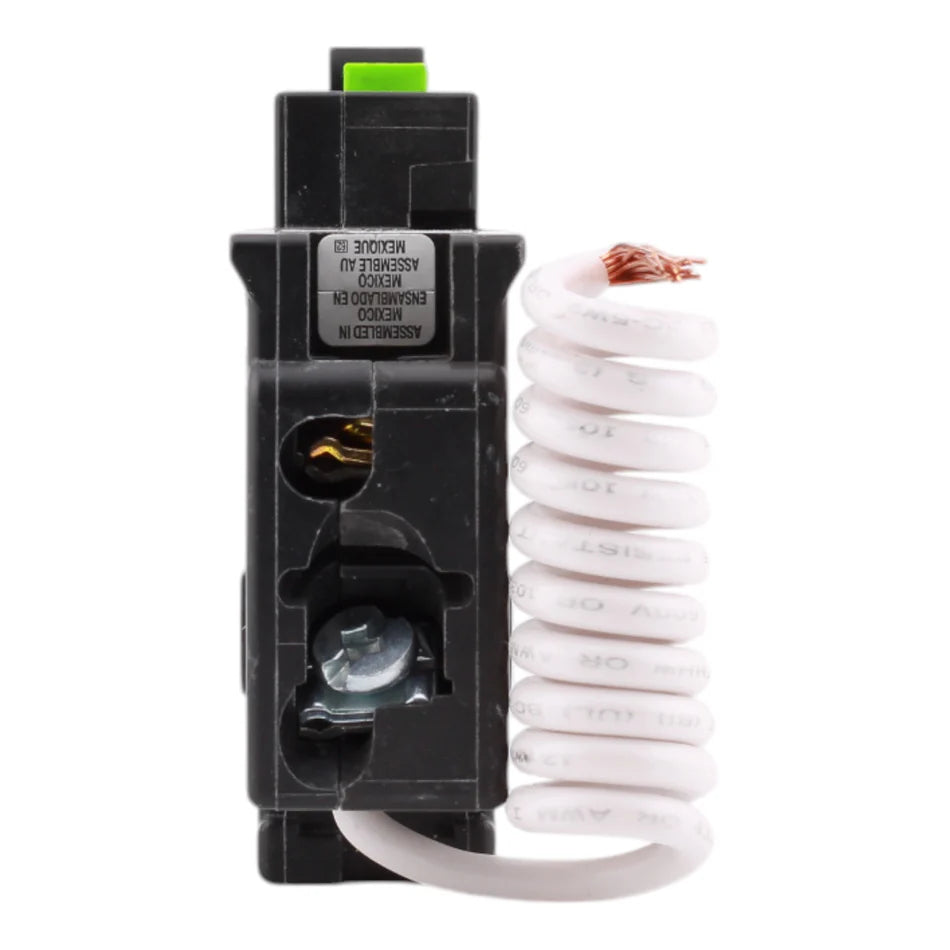

• Connection Type: Plug-In with Pigtail Neutral
• Mounting Type: Plug-In
• Compatibility: Square D Homeline Load Centers

Technical Specifications

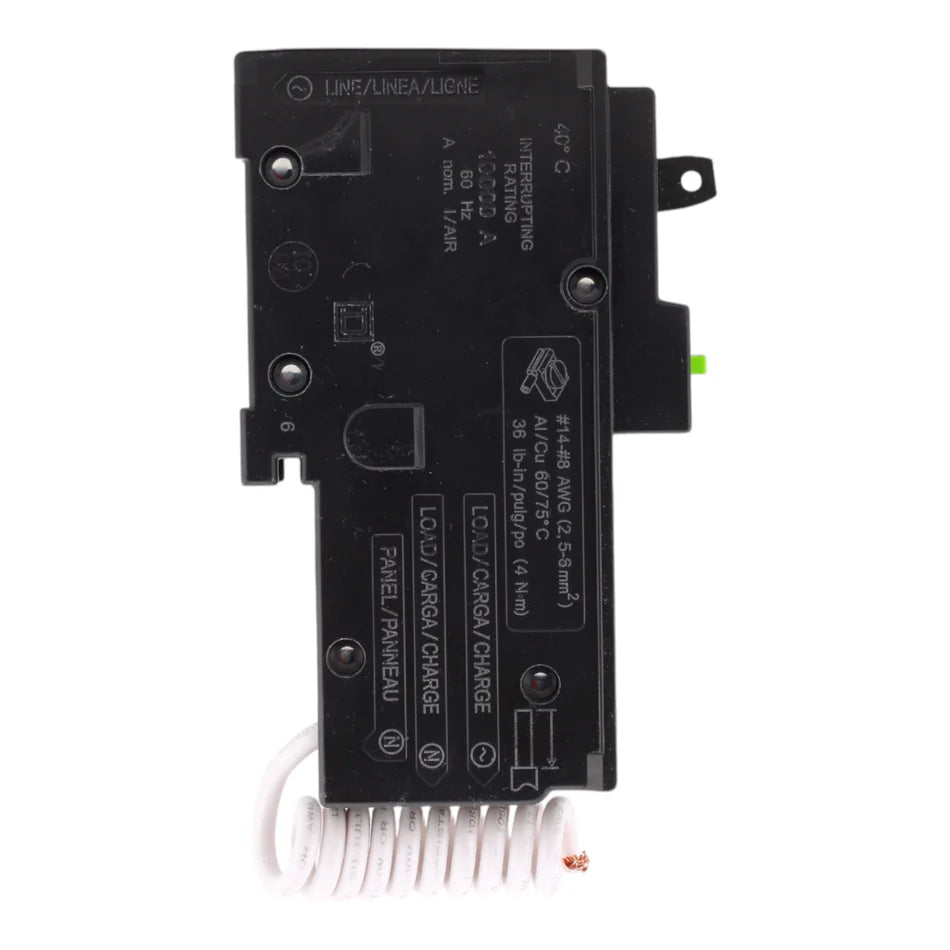

• Wire Size Compatibility:
• 1 × AWG 14–AWG 8 (Copper or Aluminum)
• 2 × AWG 14–AWG 10 (Copper only)
• Tightening Torque: 35.4 lbf·in (4.0 N·m)

Certifications

• UL Listed
• HACR Rated

Physical Specifications

• Dimensions (H × W × D): 3.13 × 1 × 2.98 in (79.50 × 25.4 × 75.69 mm)
• Weight: 10.72 oz (303.91 g)

Product Data

• Brand: Square D
• Manufacturer: Schneider Electric
• Model Number: HOM120AFI
• UPC: 785901301325
