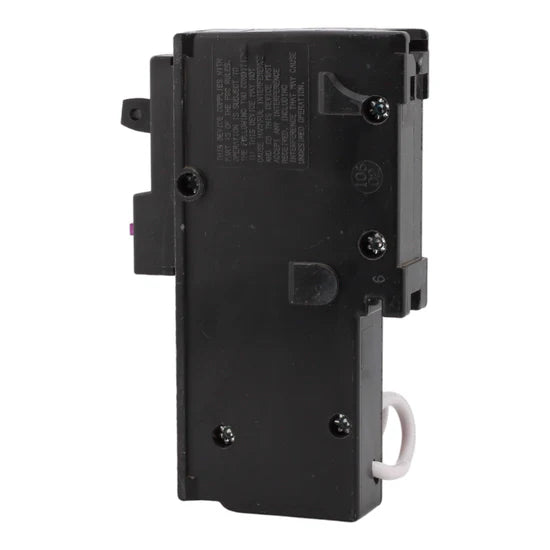

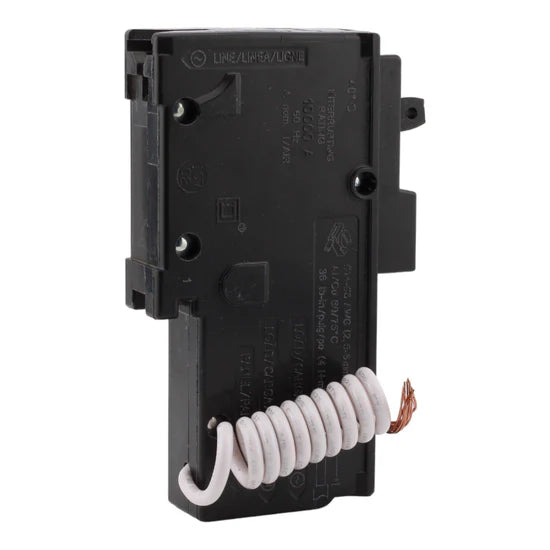

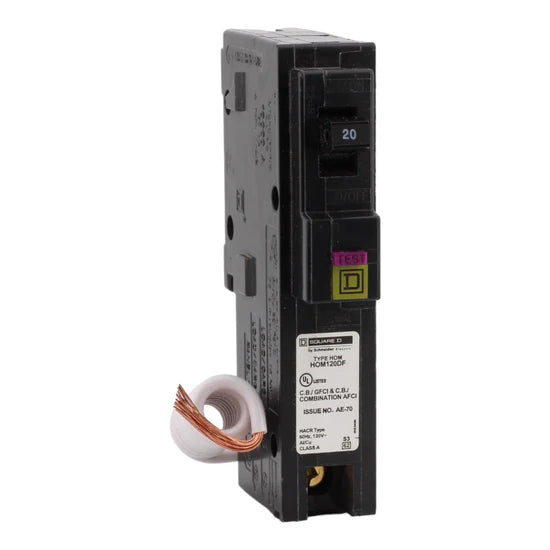

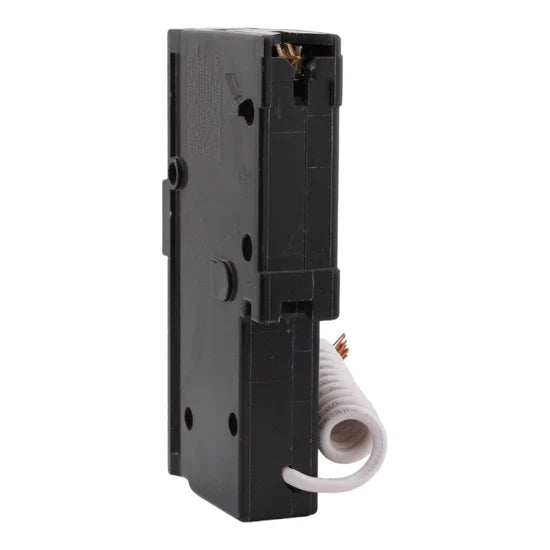

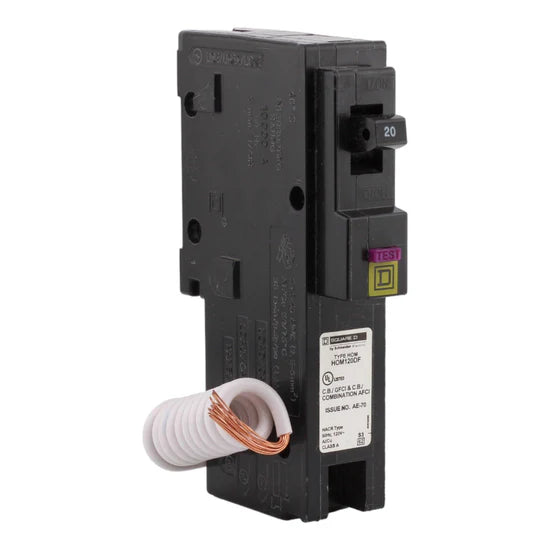

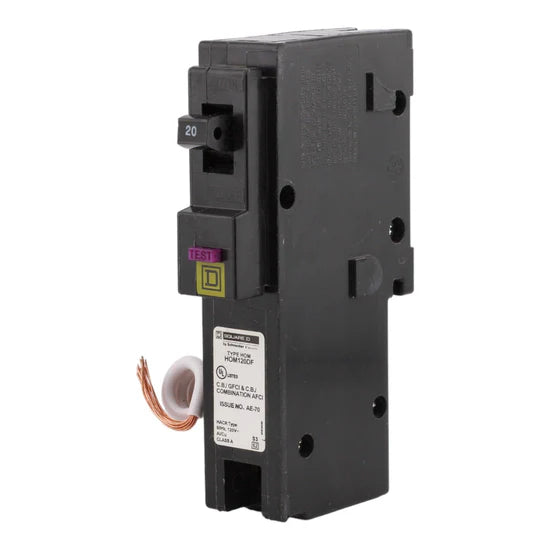

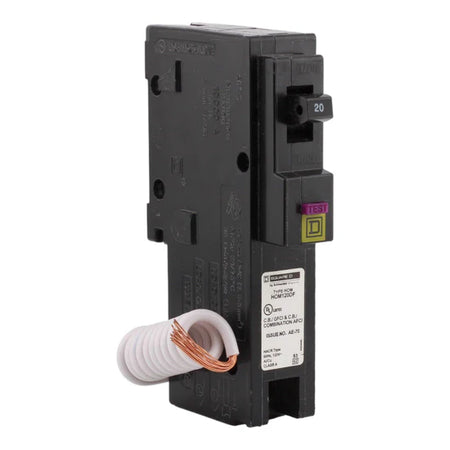

Square D HOM120DF 20A 1-Pole Dual Function (AFCI/GFCI) Circuit Breaker – Plug-On – 120V

The Square D HOM120DF is a 20 Amp single-pole dual-function circuit breaker that provides both Arc Fault (AFCI) and Ground Fault (GFCI) protection for residential branch circuits. Designed for Square D Homeline load centers, this breaker helps protect against arc faults, ground faults, overloads, and short circuits. Its plug-on mounting design allows quick installation while maintaining reliable performance.

Voltage and Rating

• Current Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Interrupt Rating: 10 kA at 120V

Key Specifications

• Breaker Type: Dual Function Circuit Breaker (AFCI/GFCI)
• Number of Poles: 1-Pole
• Trip Type: Thermal Magnetic
• Mounting Type: Plug-On
• Compatibility: Square D Homeline Loadcenters

Technical Specifications

• Wire Size (Copper): 14–8 AWG
• Wire Size (Aluminum): 14–10 AWG
• Net Weight: 0.75 lb

Certifications

• UL Listed
• CSA Approved

Product Data

• • Manufacturer: Schneider Electric (Square D)
  • Model Number: HOM120DF
  • UPC: 785901741367
