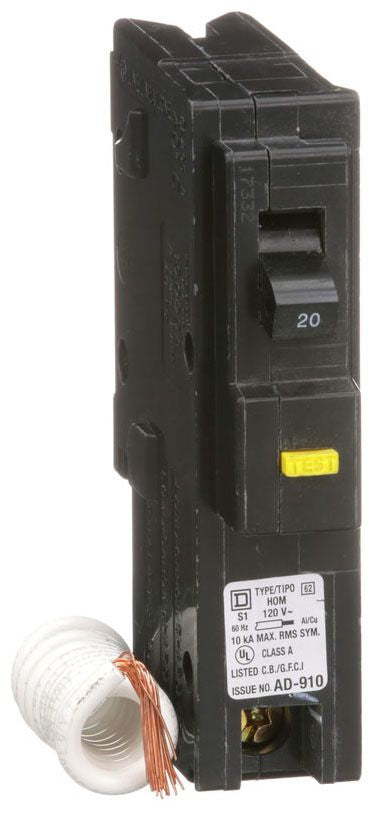

Square D HOM120GFI – 20A 120VAC 1-Pole Homeline GFCI Circuit Breaker, Class A Ground Fault Protection

Description

HOM120GFI The Square D HOM120GFI is a Homeline miniature circuit breaker providing combined overload, short circuit, and ground fault protection. Rated for 20 Amps and 120 VAC, this single-pole breaker is designed for use in Square D Homeline load centers. It features a standard plug-on mounting style for quick installation and reliable performance in residential and light commercial power systems.

This breaker includes Class A ground fault protection, engineered to trip when a fault current to ground exceeds 6 milliamperes, ensuring a high level of safety for personnel and equipment. Built with a thermal magnetic trip unit, it provides long-time and instantaneous (LI) protection and is HACR rated for use with heating, air conditioning, and refrigeration equipment.

Interrupting Ratings

• 10 kA @ 120 VAC – Standard interrupting capacity for Homeline residential and light commercial applications.

Key Specifications

• Manufacturer: Square D (Schneider Electric)

• Part Number: HOM120GFI

• Amperage: 20 A

• Voltage Rating: 120 VAC

• Poles: 1

• Frame Type: HOM (Homeline)

• Mounting Type: Plug-On

• Trip Unit: Thermal Magnetic

• Trip Functions: LI – Long-Time and Instantaneous

• Ground Fault Protection: Class A (6 mA sensitivity)

• Phase: 1

• Certifications: UL Listed, CSA, HACR Rated

Technical Specifications

• Part Number: HOM120GFI

• Category: Circuit Breaker

• Item Subcategory: Miniature Ground Fault (GFCI)

• Family: Homeline

• Type: HOM-GFI

• Voltage: 120 VAC

• Amperage: 20 A

• Phase: 1

• Poles: 1

• AIC Rating: 10 kA @ 120 V

• Connection: Plug-On / Screw Clamp Terminals

• Wire Size: #14 to #10 AWG (Aluminum/Copper)

• Tightening Torque: 36.3 lb-in (4.1 N.m)

• Temperature Rating: 104°F (40°C)

• Protection: Thermal Magnetic

Product Data

• UPC: 785901065371

• GTIN: 00785901065371

• Weight: ~0.65 lb

• Dimensions: 3.13 in (H) x 1.00 in (W) x 2.98 in (D)
