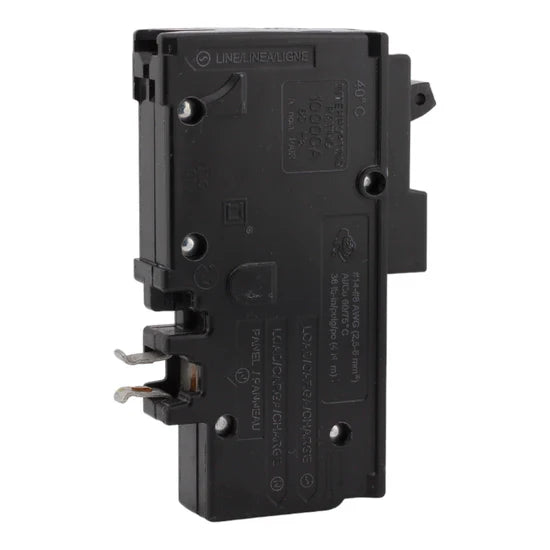

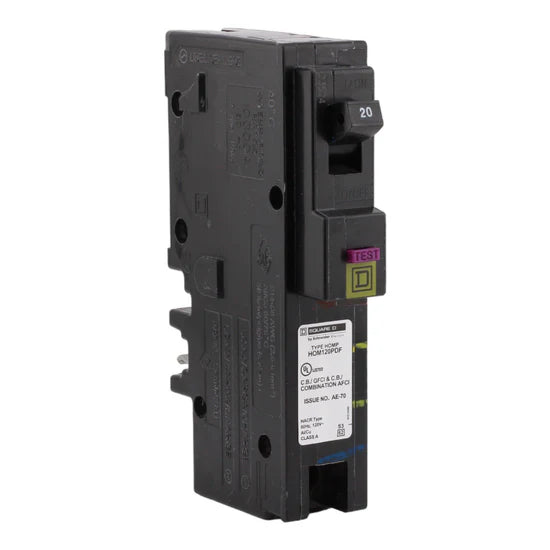

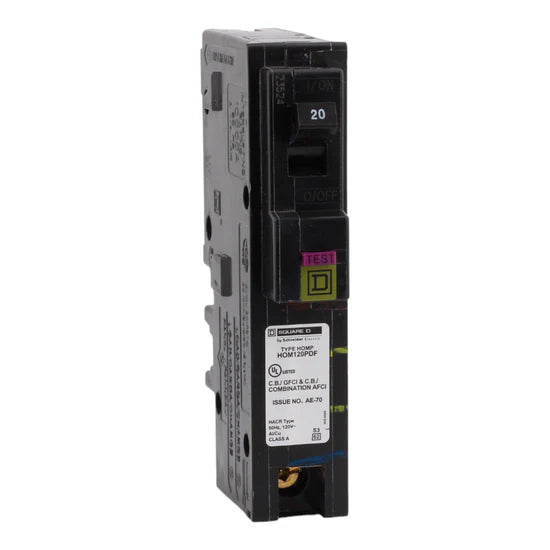

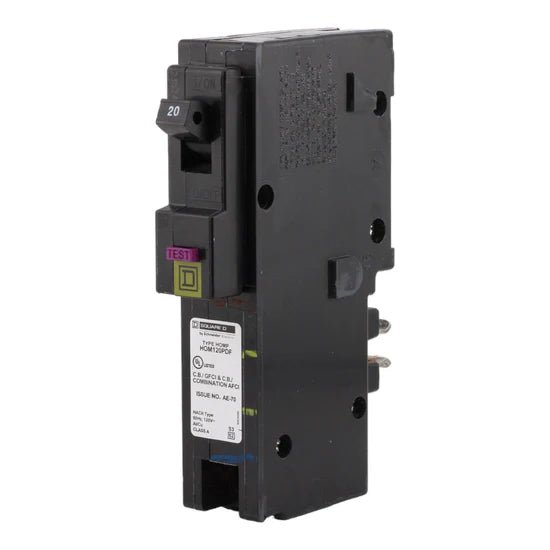

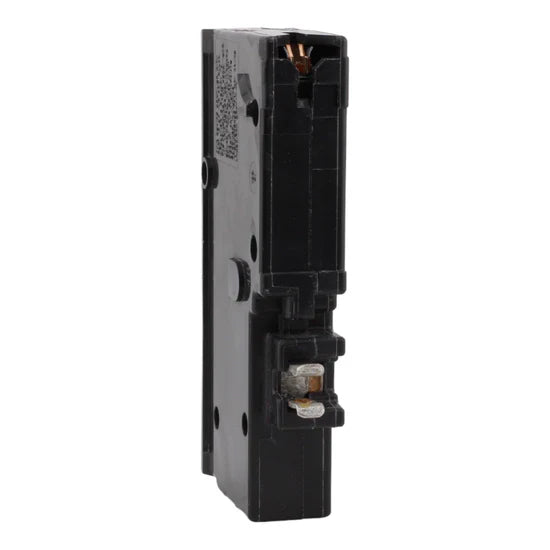

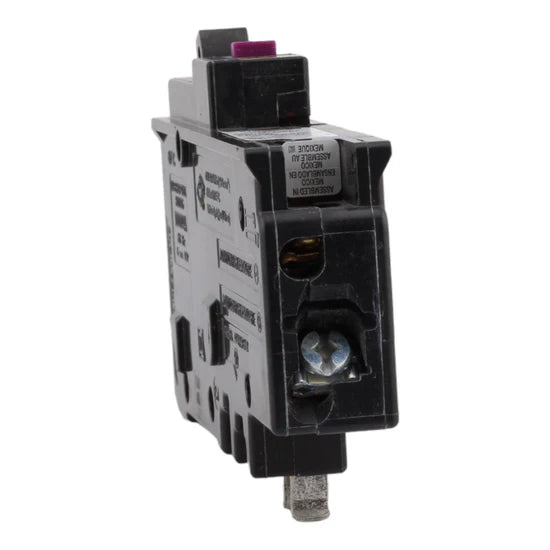

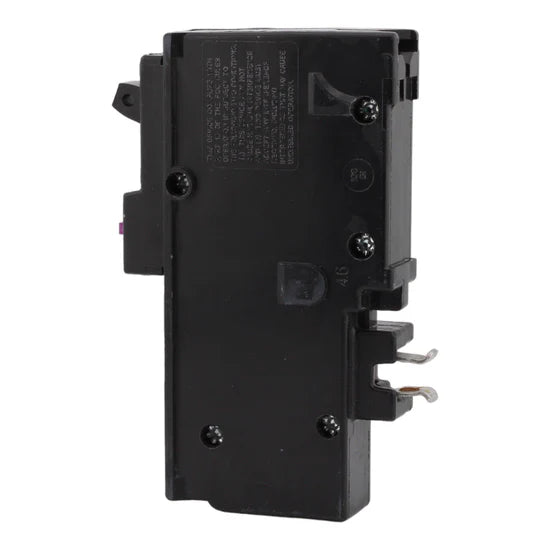

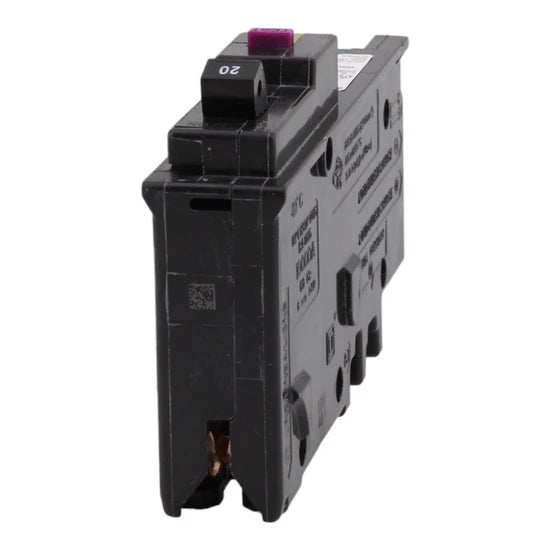

Square D HOM120PDF 20A 1-Pole Dual Function (AFCI/GFCI) Circuit Breaker – Plug-On Neutral – 120V

The Square D HOM120PDF is a 20 Amp single-pole dual-function circuit breaker that provides both Combination Arc-Fault (AFCI) and Class A Ground-Fault (GFCI, 6mA) protection. Designed for Square D Homeline load centers, this breaker helps safeguard residential circuits against arc faults, ground faults, overloads, and short circuits. Its plug-on neutral design simplifies installation and improves panel organization.

Voltage and Rating

• Current Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Interrupt Rating: 10 kA

Key Specifications

• Product Type: Miniature Circuit Breaker
• Breaker Type: Combination Arc-Fault and Ground-Fault (Class A, 6mA)
• Number of Poles: 1-Pole
• Mounting Type: Plug-In
• Connection Type: Plug-On Neutral
• Compatibility: Square D Homeline Loadcenters

Technical Specifications

• Wire Size: AWG 14–8 (Copper or Aluminum)
• Tightening Torque: 35 lbf·in (4 N·m)
• Dimensions (H × W × D): 3.13 × 1.0 × 2.98 in
• Net Weight: 0.48 lb

Certifications

• UL Listed

Product Data

• • Manufacturer: Schneider Electric
  • Brand: Square D
  • Model Number: HOM120PDF
  • UPC: 785901978343
