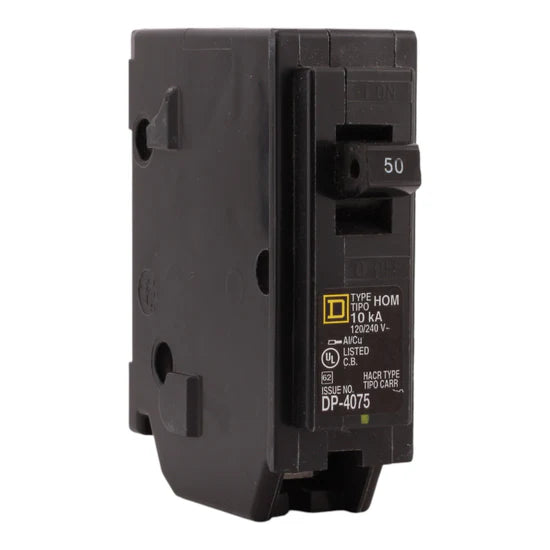

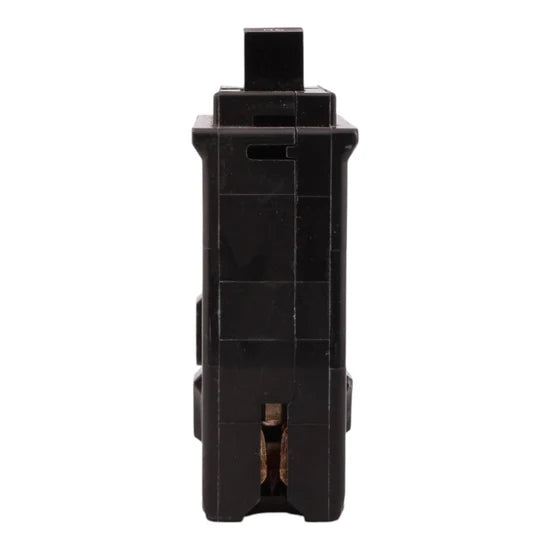

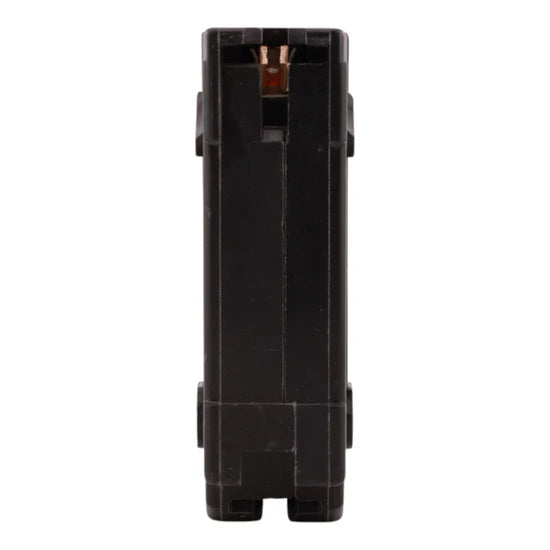

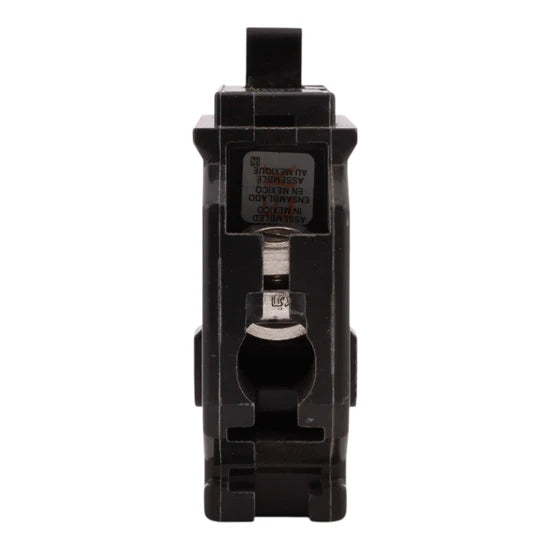

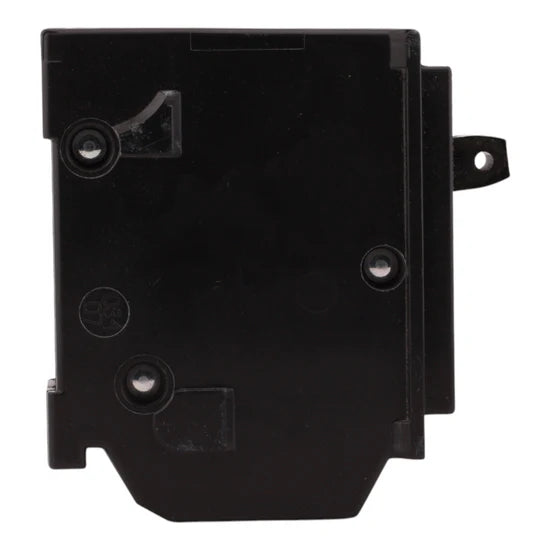

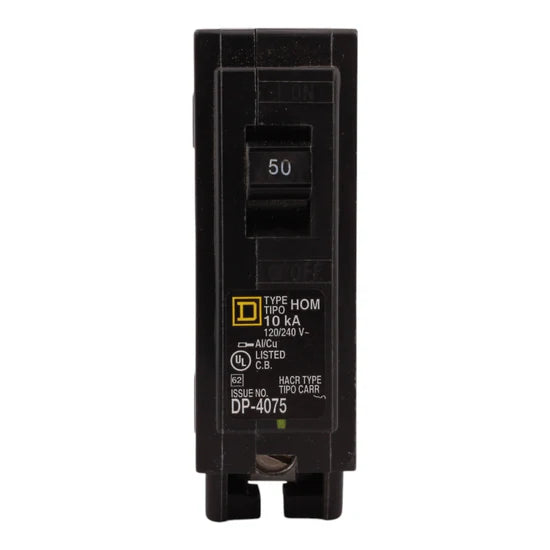

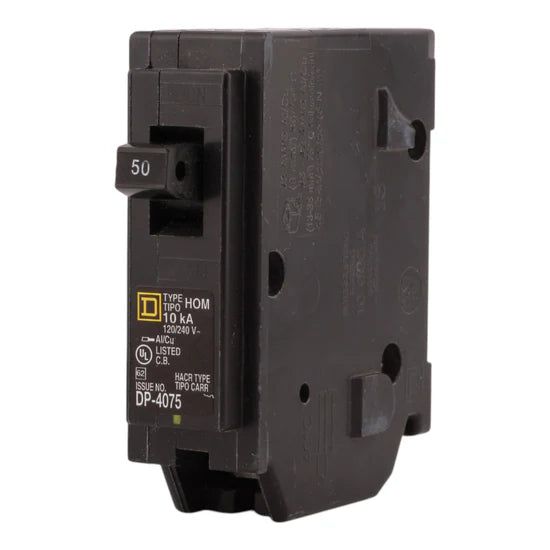

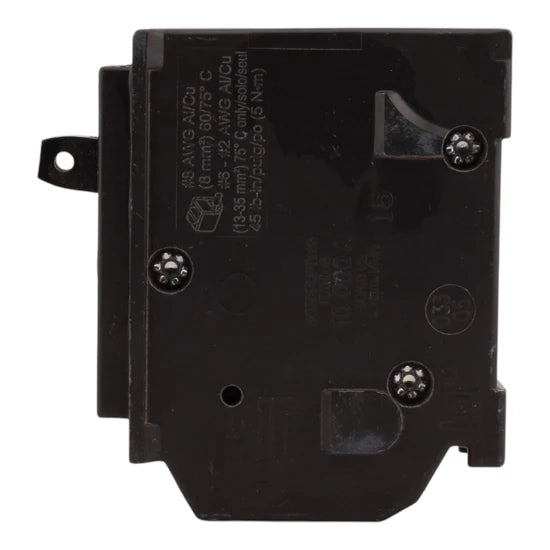

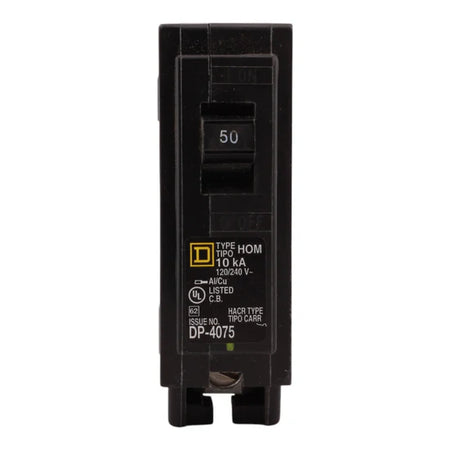

Square D HOM150 50A 1-Pole Standard Miniature – Plug-In – 120/240V

The Square D HOM150 is a 50 Amp, 1-pole standard miniature circuit breaker designed for Homeline load centers and panels. With a 10kA interrupt rating and plug-in mounting, it provides reliable overcurrent protection for residential and commercial 120/240V circuits. HACR rated and UL listed, it meets safety standards for HVAC and general branch circuit applications.

Voltage and Rating:

• Current Rating: 50 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kA

Key Specifications:

• Breaker Type: Standard Miniature Circuit Breaker
• Number of Poles: 1-Pole
• Mounting Mode: Plug-In
• Electrical Connection: Box lugs
• Wire Size: AWG 8–2 (Aluminum/Copper)
• Tightening Torque: 40.7 lbf.in (4.6 N.m)
• Special Features: HACR rated
• Application: Residential and commercial circuit protection

Physical Specifications:

• Dimensions (H × W × D): 3.13 × 1 × 2.98 in
• Weight: 5.44 oz

Product Data

Manufacturer: Schneider Electric
Brand: Square D
Model Number: HOM150
UPC: 785901065258
Range: Homeline Series (For Homeline load centers and panels)
Certifications: UL Listed
