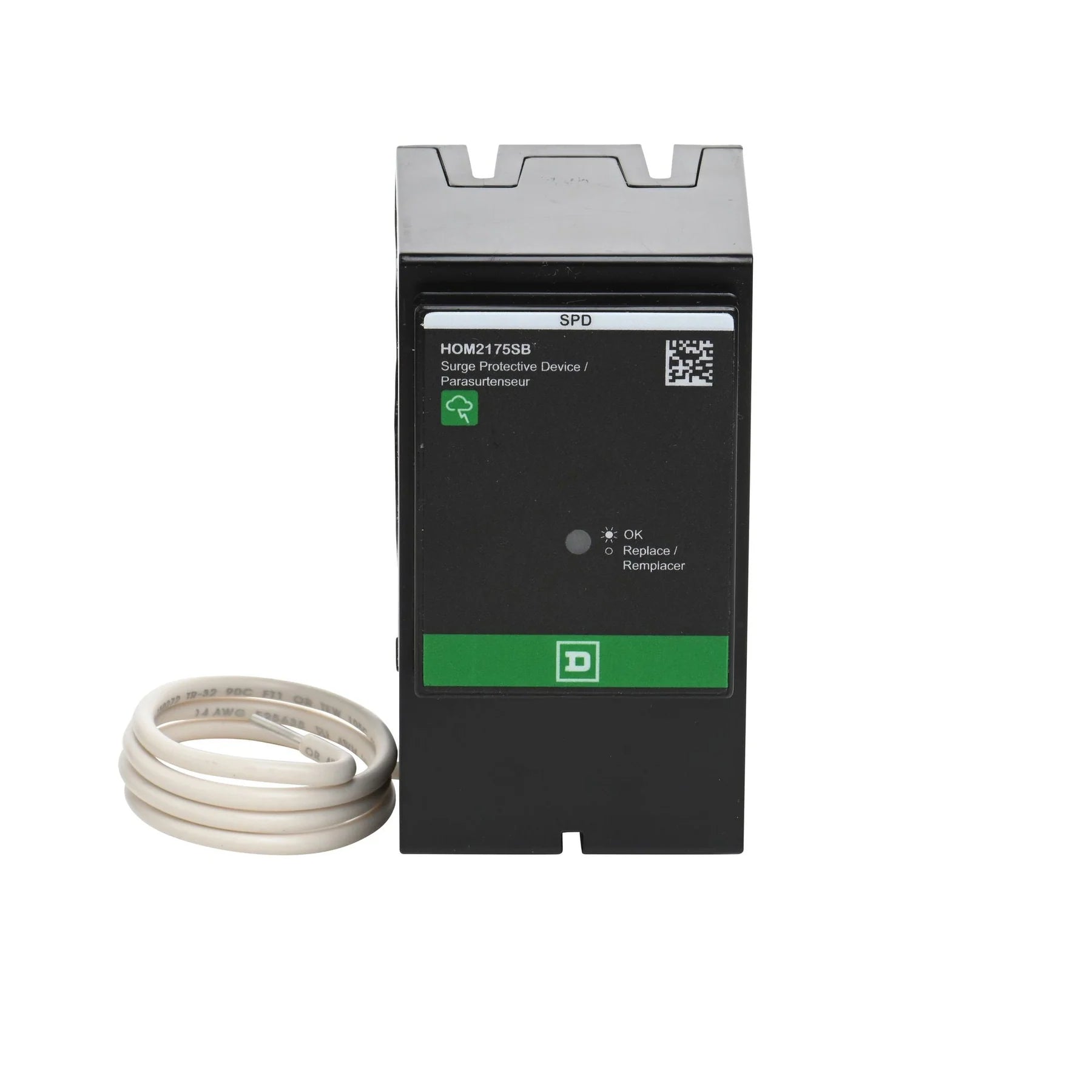

Square D HOM2175SB Homeline Surgebreaker | 22.5kA SPD Type 2

The Square D HOM2175SB is a Type 2 Surge Protective Device (SPD) designed specifically for use with Square D Homeline load centers. Unlike a standard circuit breaker, this "Surgebreaker" provides whole-home surge suppression, protecting major household appliances from voltage spikes caused by lightning, utility switching, and internal electrical disturbances.

It is a plug-on unit that installs directly into two adjacent pole spaces, connecting directly to the panel’s bus bar for the shortest possible lead length, which maximizes its suppression efficiency. It features an LED status indicator to provide a quick visual confirmation that the device is operational and providing protection.

Key Features

• Device Type: Secondary Surge Arrester / Surgebreaker (Type 2 SPD)

• Surge Current Rating: 22.5 kA per phase (some ratings list up to 25 kA)

• Voltage Rating: 120/240 V AC

• Phase: Single-phase, 3-wire

• Mounting Style: Plug-On (occupies 2 pole spaces)

• Diagnostics: Green LED indicator (On = Protected, Off = Replace unit)

• Applications: Residential whole-home surge protection for Homeline panels

• Protection: High-energy circuitry to suppress severe transient activity

Technical Specifications

• Manufacturer: Square D (Schneider Electric)

• Catalog Number: HOM2175SB

• UPC Number: 785901210900

• Short Circuit Current Rating (SCCR): 22 kA

• MCOV (Max Continuous Operating Voltage): 150V L-N / 300V L-L

• Enclosure Rating: NEMA 1 (Indoor)

• Wiring Configuration: 3-wire (L1, L2, Neutral)

• Approvals: UL 1449 4th Edition Listed, CSA Certified
