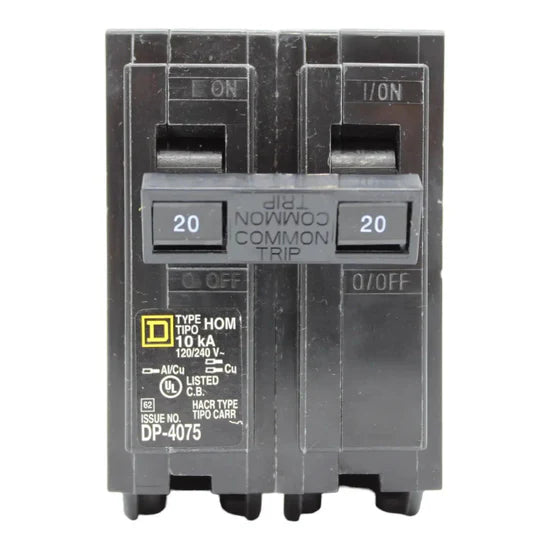

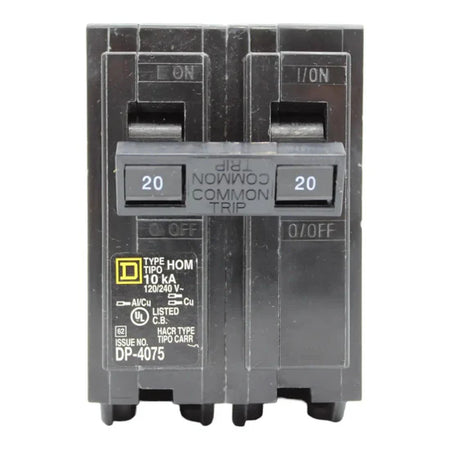

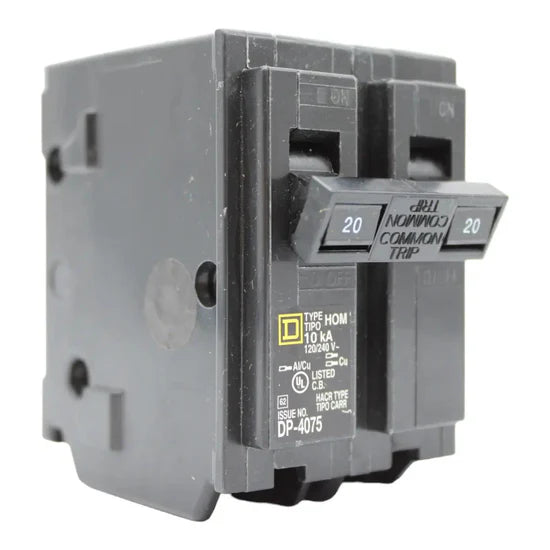

Square D HOM220 20A 2-Pole Standard Circuit Breaker – Plug-In – 120/240V

The HOM220 from Square D, manufactured by Schneider Electric, is a 20-amp, 2-pole standard miniature circuit breaker designed for dependable overload and short-circuit protection in Homeline load centers and subpanels. Rated for 120/240V AC with a 10kA interrupting capacity, this plug-in breaker provides reliable performance for residential and light commercial electrical systems. Its compact design and clamp-terminal connections allow quick installation and flexible wiring while meeting UL and NEC safety requirements.

Voltage and Rating

• Current Rating: 20 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kA AIR

Key Specifications

• Breaker Type: Standard Miniature Circuit Breaker (MCB)
• Number of Poles: 2-Pole

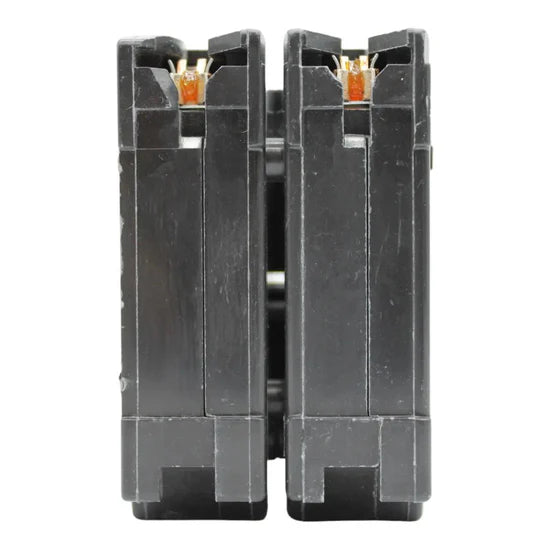

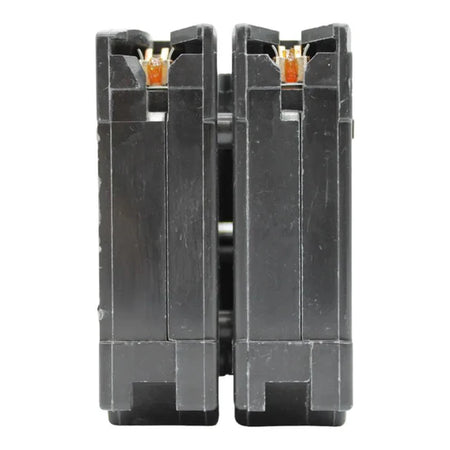

• Mounting Type: Plug-In
• Series: Homeline
• Ground Fault Protection: Not Applicable
• Application: Branch circuit protection in residential and light commercial panels
• Compatible Panels: Homeline Load Centers and Subpanels

Technical Specifications

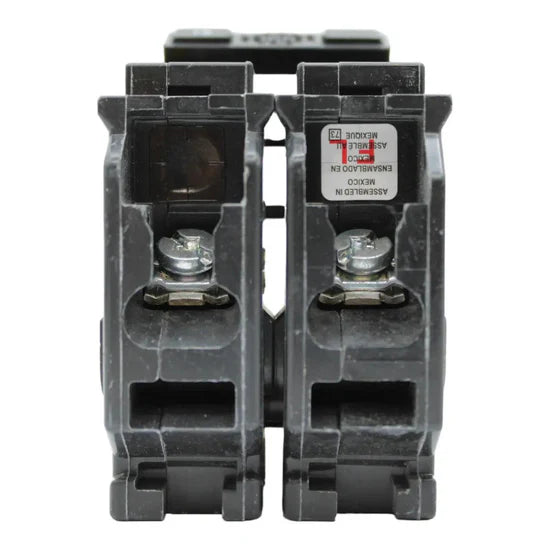

• Electrical Connection: Clamp terminal for 2 wires

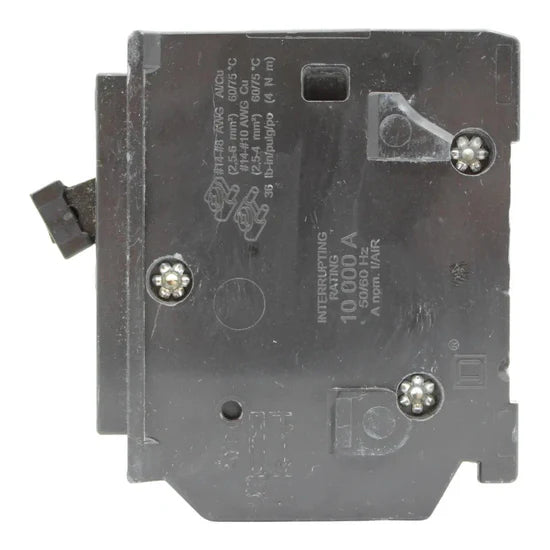

• Wire Size Range:
• 1 × AWG 14–8 (Copper/Aluminum)
• 2 × AWG 14–10 (Copper)
• Terminal Tightening Torque: 35.4 lb-in (4.0 N·m)
• Short Circuit Current Rating (SCCR): 10,000 Amps
• Certifications: UL Listed, HACR Rated
• Compliance: UL 489, NEC Compliant

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: HOM220
• UPC: 785901065289
• Dimensions (H × W × D): 3.13 × 2.00 × 2.98 in
• Weight: 0.65 lbs
