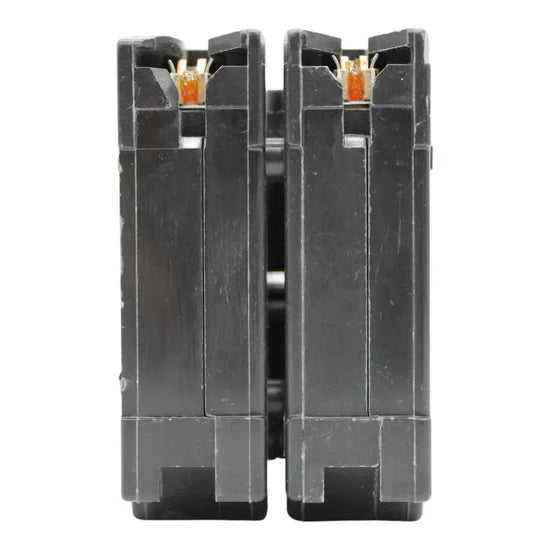

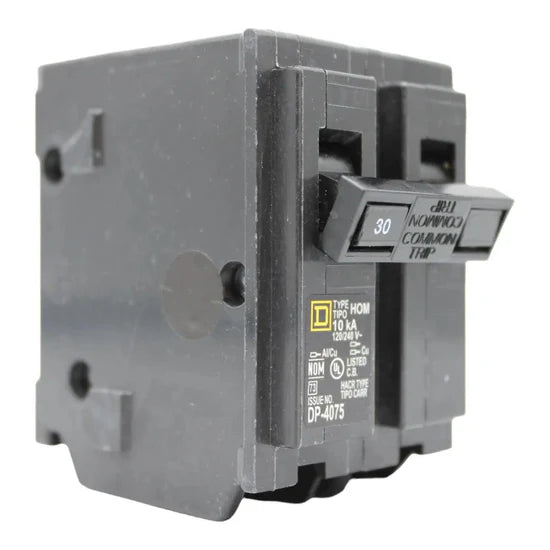

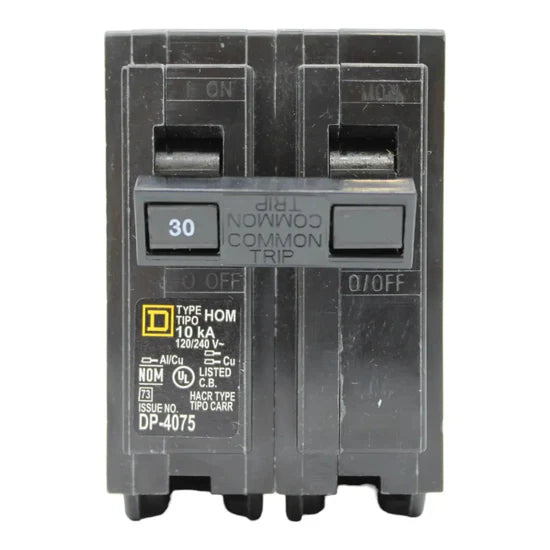

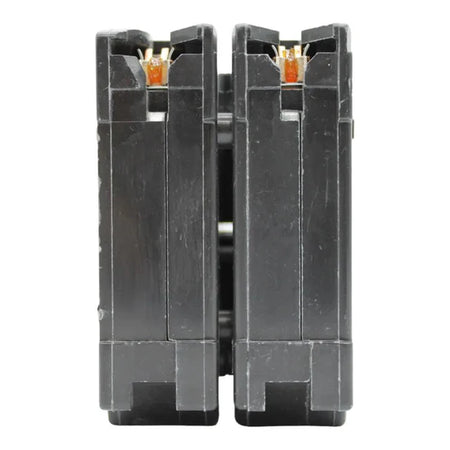

Square D HOM230 30A 2-Pole Standard Circuit Breaker – Plug-In – 120/240V

The Square D HOM230 is a 30-amp, 2-pole standard circuit breaker designed to provide dependable overcurrent and short-circuit protection in Homeline load centers and subpanels. Rated for 120/240V AC with a 10kA interrupting capacity, this plug-in miniature circuit breaker (MCB) is ideal for residential and light commercial applications. Its compact 2-inch width allows efficient panel space utilization, while the clamp terminal design supports secure copper and aluminum conductor connections. UL listed, HACR rated, and NEC compliant, the HOM230 ensures safe, reliable, and code-compliant circuit protection.

Voltage and Rating

• Current Rating: 30 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kA AIR

Key Specifications

• Breaker Type: Standard Miniature Circuit Breaker (MCB)
• Number of Poles: 2-Pole
• Mounting Type: Plug-In
• Series: Homeline
• Ground Fault Protection: Not Applicable
• Application: Residential and light commercial branch circuit protection
• Compatible Panels: Homeline Load Centers and Subpanels

Technical Specifications

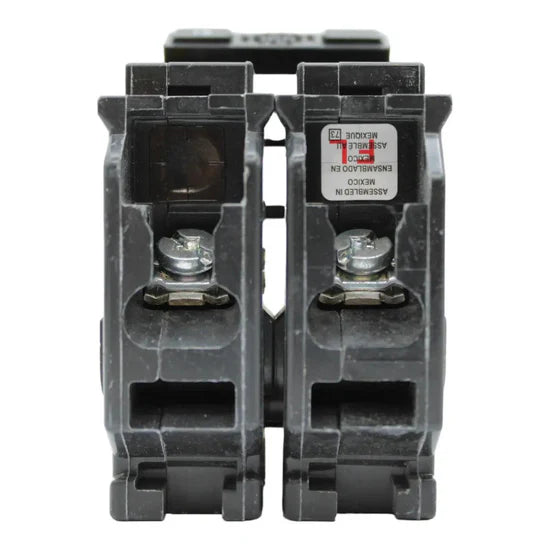

• Electrical Connection: Clamp terminal for 2 wires

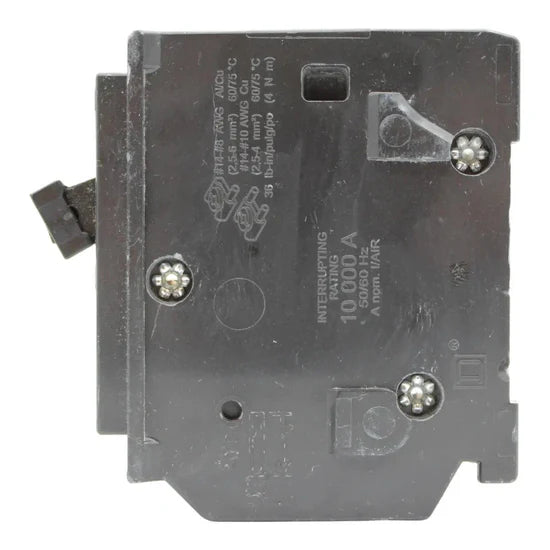

• Wire Size Range:
• 1 × AWG 14–8 (Copper/Aluminum)
• 2 × AWG 14–10 (Copper)
• Terminal Tightening Torque: 35.4 lb-in (4.0 N·m)
• Short Circuit Current Rating (SCCR): 10,000 Amps
• Certifications: UL Listed, HACR Rated
• Compliance: NEC Compliant

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: HOM230
• UPC: 785901065296
• Dimensions (H × W × D): 3.13 × 2.00 × 2.98 in
• Weight: 0.65 lbs
