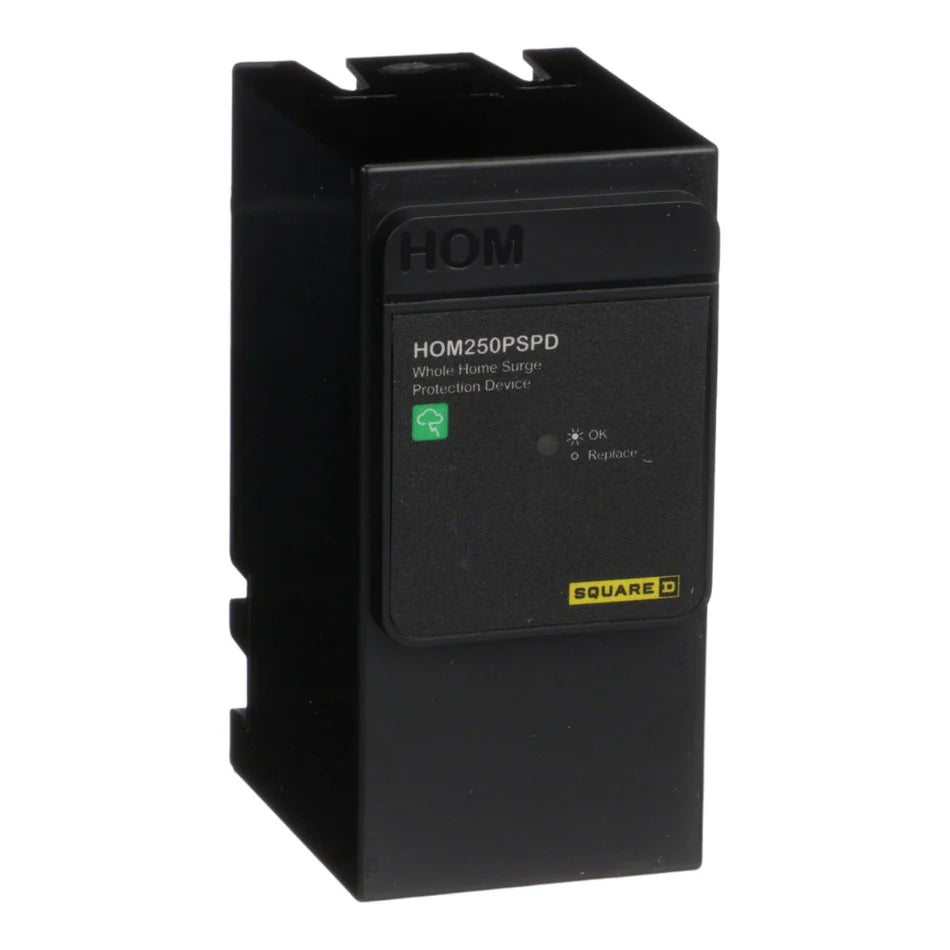

Square D HOM250PSPD Surge Protection Device – Plug-On Neutral – 120/240V
Couldn't load pickup availability
Ask an expert
The Square D HOM250PSPD is a Type 2 surge protection device (SPD) designed to help protect residential electrical systems from transient voltage surges caused by lightning strikes and utility switching events. Manufactured by Schneider Electric, this SPD is part of the Square D Homeline series and is intended for use with Homeline load centers.
Featuring a plug-on neutral connection, the HOM250PSPD allows for quick, secure installation while delivering robust surge suppression performance. With a 50 kA surge current rating, it provides dependable whole-panel protection for single-phase 120/240V systems.
Voltage and Rating
- Voltage Rating: 120/240 Volts AC
- Surge Current Rating: 50 kA
- Nominal Discharge Current: 20 kA
- Maximum Continuous Operating Voltage (MCOV): 150 V
- Short Circuit Current Rating (SCCR): 22 kA
Key Specifications
- Device Type: Surge Protection Device (SPD)
- Series / Range: Homeline
- Number of Phases: 1 Phase
- Wiring Configuration: 3-Wire
- Connection Type: Plug-On Neutral
- Application: Whole-panel surge protection
Technical Specifications
- Dimensions (H × W × D): 3.98 × 1.97 × 2.60 in
- Net Weight: 1 lb
Certifications
- UL Listed
- CSA Approved
Product Data
- Brand: Square D
- Manufacturer: Schneider Electric
- Model Number: HOM250PSPD
- UPC: 785901520290
- Type Circuit Breakers
- Vendor Square D
- Brand Square D
