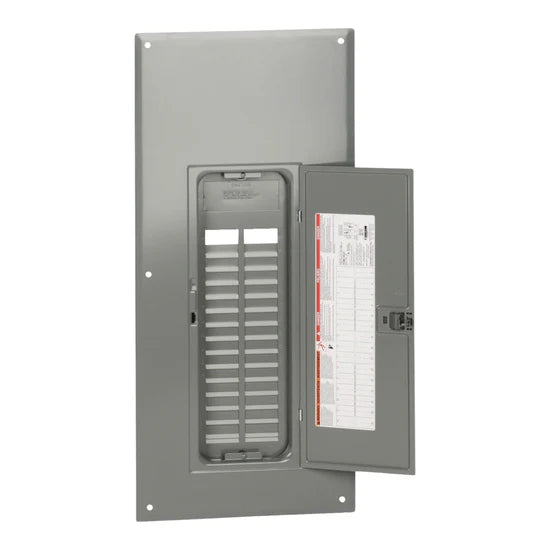

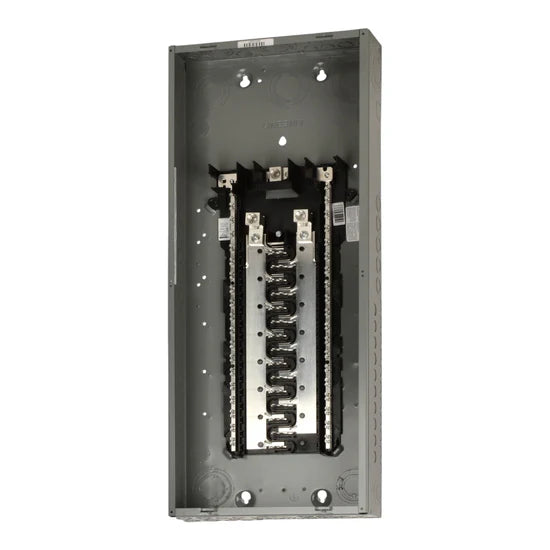

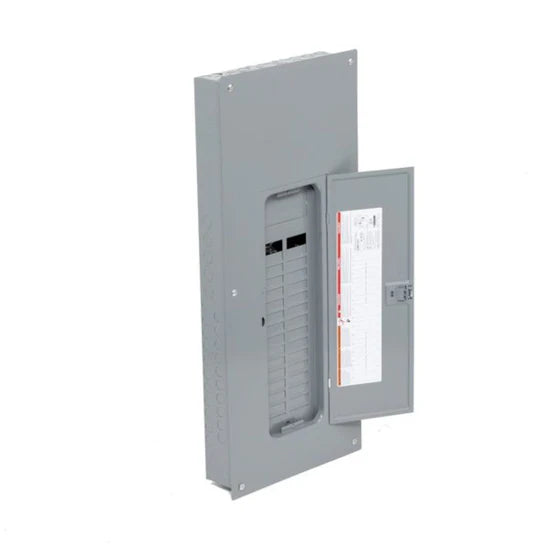

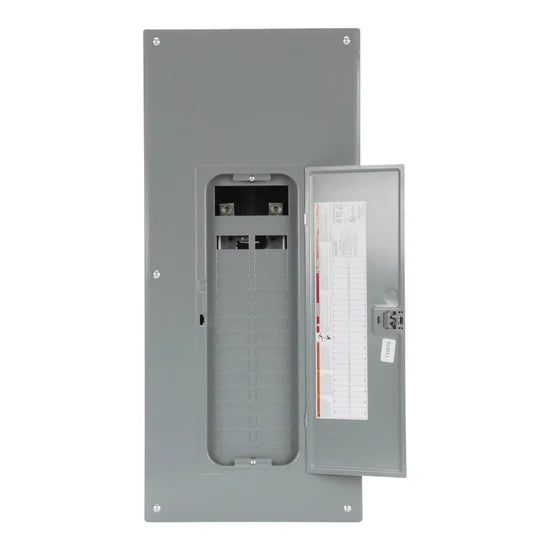

The Square D HOM3060L225PGC, manufactured by Schneider Electric, is a 225 Amp, 1-phase plug-on neutral load center designed for 120/240V residential and light commercial power distribution. Part of the Homeline series, this indoor NEMA 1 load center provides reliable performance with flexible circuit capacity and simplified breaker installation.
Electrical Ratings
- Rated Current: 225 Amps
- Voltage Rating: 120/240 Volts AC
- Phase: 1-Phase (3-wire)
- Short Circuit Current Rating: 10 kAIC
- Circuit Capacity
- Number of Spaces: 30
- Maximum Single-Pole Circuits: 60
- Maximum Tandem Breakers: 30
- Plug-On Neutral Design: Yes (for faster installation and cleaner wiring)
- Construction & Connections
- Product Type: Load Center
- Electrical Connection: Lugs
- Wire Size Range:
- Copper: AWG 4 – 250 kcmil
- Aluminum: AWG 4 – 300 kcmil
- Busbar Material: Tin-plated aluminum
- Ground Bar: Included (not installed)
- Enclosure Rating: NEMA 1 (Indoor)
- Cover Type: Combination flush/surface cover
- Physical Specifications
- Height: 33.8 inches
- Width: 14.3 inches
- Depth: 3.7 inches
- Weight: 30.6 lbs
- Model Number: HOM3060L225PGC
UPC: 7
- Certifications
- UL Listed
- Product Information
- Product Range: Homeline
- 85901977223
This Square D Homeline HOM3060L225PGC load center delivers dependable 225A, single-phase power distribution with 30 spaces and up to 60 circuits, making it ideal for residential and light commercial installations requiring flexible capacity and streamlined plug-on neutral functionality.
