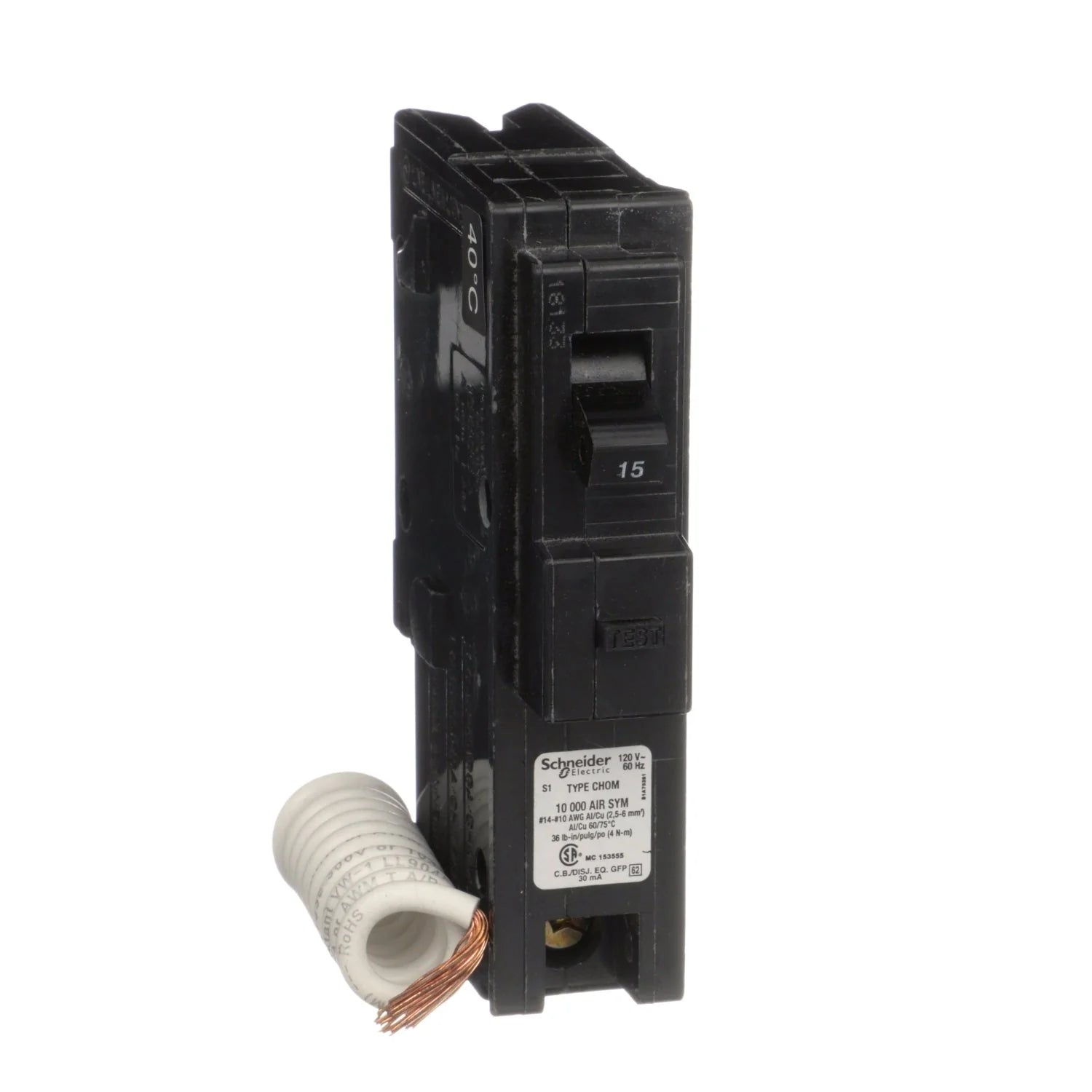

Square D Homeline HOM115EPD 15 Amp 1-Pole GFEP Circuit Breaker – Plug-In – 120V AC

The Schneider Electric Square D Homeline HOM115EPD is a 15 Amp, 1-pole ground-fault equipment protection (GFEP) circuit breaker designed for residential Homeline load centers. It provides thermal-magnetic protection along with equipment ground-fault protection to enhance electrical safety.

This breaker is part of the Homeline series, designed for fast plug-in installation and reliable residential circuit protection.

Electrical Ratings

• Current Rating: 15 Amps
• Voltage Rating: 120 Volts AC
• Phase: 1-Phase
• Interrupting Capacity: 10 kA @ 120V AC
• Frame Type: Homeline
• Application Category: Residential Miniature Circuit Breaker (MCB)
• Protection Type: GFEP (Ground Fault Equipment Protection – 30 mA)

Breaker & Protection Features

• Breaker Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1-Pole
• Trip Unit Technology: Thermal-Magnetic
• Trip Functions: LI (Long-Time and Instantaneous)
• Ground Fault Protection: 30 mA equipment ground fault protection
• Protection Type: Overload, short-circuit, and ground fault (equipment protection)
• Control Type: Toggle mechanism
• Trip Unit: Standard residential plug-in

Mounting & Connection

• Connection Type: Plug-In
• Installation Type: Homeline load center plug-in breaker
• Electrical Connection: Clamp terminal (single wire)
• Compatibility: Square D Homeline load centers
• Wiring Compatibility: Copper or aluminum conductors

Wiring & Termination

• Wire Size Range: AWG 14 to 8 (Cu/Al)
• Terminal Type: Clamp terminal
• Wiring Style: Single-wire termination

Physical Specifications

• Height: 3.13 in
• Width: 2 in
• Depth: 2.98 in
• Weight: 225 lb (as provided, likely incorrect unit labeling in source data)

Certifications & Standards

• UL Listed
• CSA Approved
• Designed for residential electrical protection
• HACR rated
• Complies with Homeline residential breaker standards

Additional Features

• 30 mA equipment ground-fault protection (GFEP)
• Fast plug-in installation for Homeline panels
• Compact residential breaker design
• Thermal-magnetic protection system
• Designed for residential branch circuit safety
• Reliable overload and short-circuit interruption

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D Homeline
• Series: Homeline
• Model: HOM115EPD
