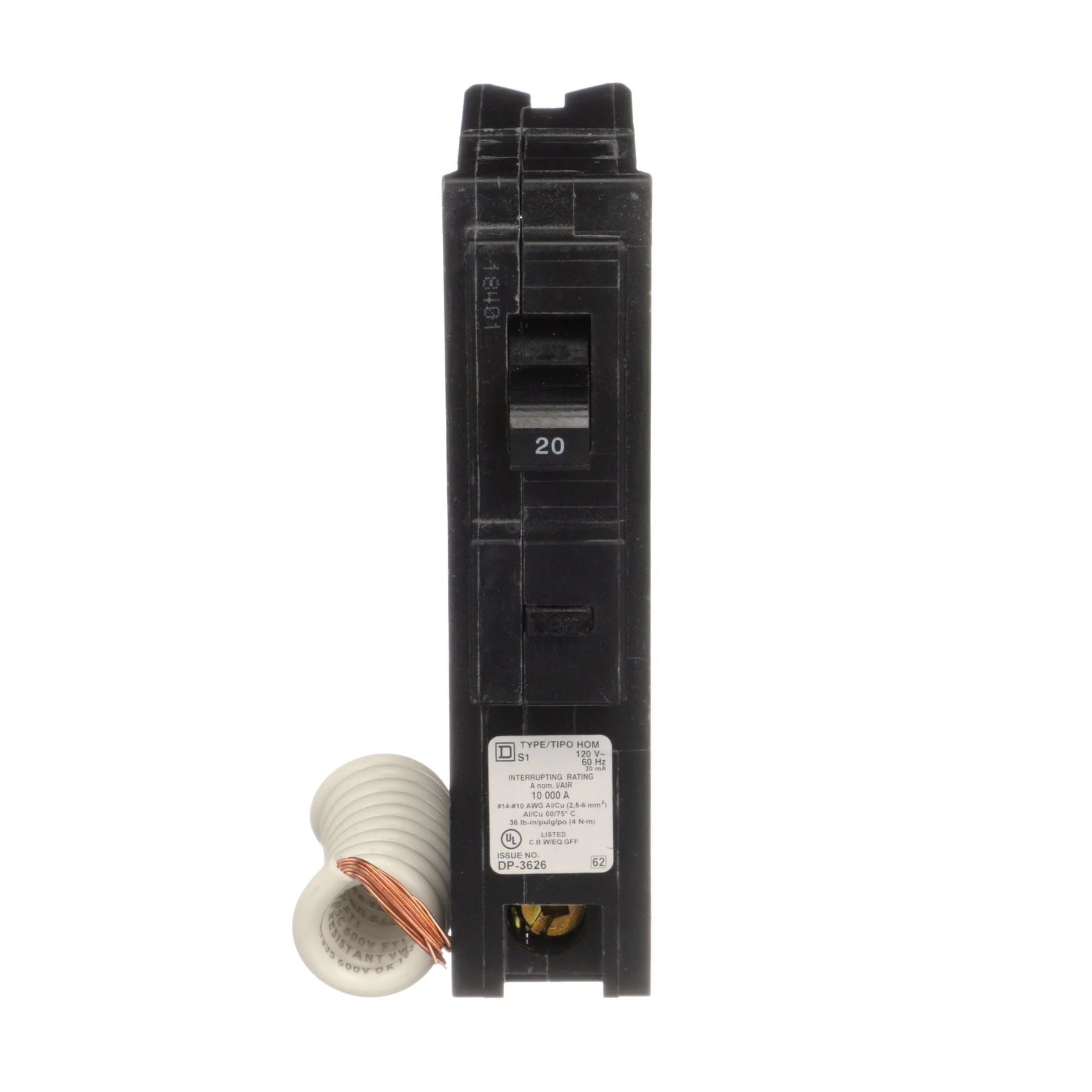

Square D Homeline HOM120EPD 20 Amp 1-Pole GFEP Circuit Breaker – Plug-In – 120V AC

The Schneider Electric Square D Homeline HOM120EPD is a 20 Amp, 1-pole ground-fault equipment protection (GFEP) circuit breaker designed for residential Homeline load centers. It combines thermal-magnetic protection with ground-fault sensing to enhance safety in residential branch circuits.

It is designed for quick plug-in installation and is suitable for standard residential circuit protection applications.

Electrical Ratings

• Current Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Phase: 1-Phase
• Interrupting Capacity: 10 kA @ 120V AC
• Frame Type: Homeline
• Application Category: Residential Miniature Circuit Breaker (MCB)
• Protection Type: GFEP (30 mA equipment ground fault protection)

Breaker & Protection Features

• Breaker Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1-Pole
• Trip Unit Technology: Thermal-Magnetic
• Trip Functions: LI (Long-Time and Instantaneous)
• Ground Fault Protection: 30 mA equipment protection
• Protection Type: Overload, short-circuit, and ground-fault protection
• Control Type: Toggle mechanism
• Trip Unit: Standard residential plug-in

Mounting & Connection

• Connection Type: Plug-In
• Installation Type: Homeline load center compatible breaker
• Electrical Connection: Clamp terminal (single wire)
• Compatibility: Square D Homeline panelboards
• Wiring Compatibility: Copper or aluminum conductors

Wiring & Termination

• Wire Size Range: AWG 14 to 8 (Cu/Al)
• Terminal Type: Clamp terminal (single conductor)
• Wiring Style: Plug-in residential termination system

Physical Specifications

• Height: 3.7 in
• Width: 2 in
• Depth: 2.6 in
• Weight: 1.1 lbs

Certifications & Standards

• UL Listed
• CSA Approved
• HACR rated
• Designed for residential electrical protection systems
• Meets Homeline residential safety standards

Additional Features

• 30 mA equipment ground-fault protection (GFEP)
• Fast plug-in installation for Homeline load centers
• Compact residential breaker design
• Thermal-magnetic LI protection system
• Reliable protection for residential branch circuits
• Suitable for standard household electrical distribution

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D Homeline
• Series: Homeline
• Model: HOM120EPD
