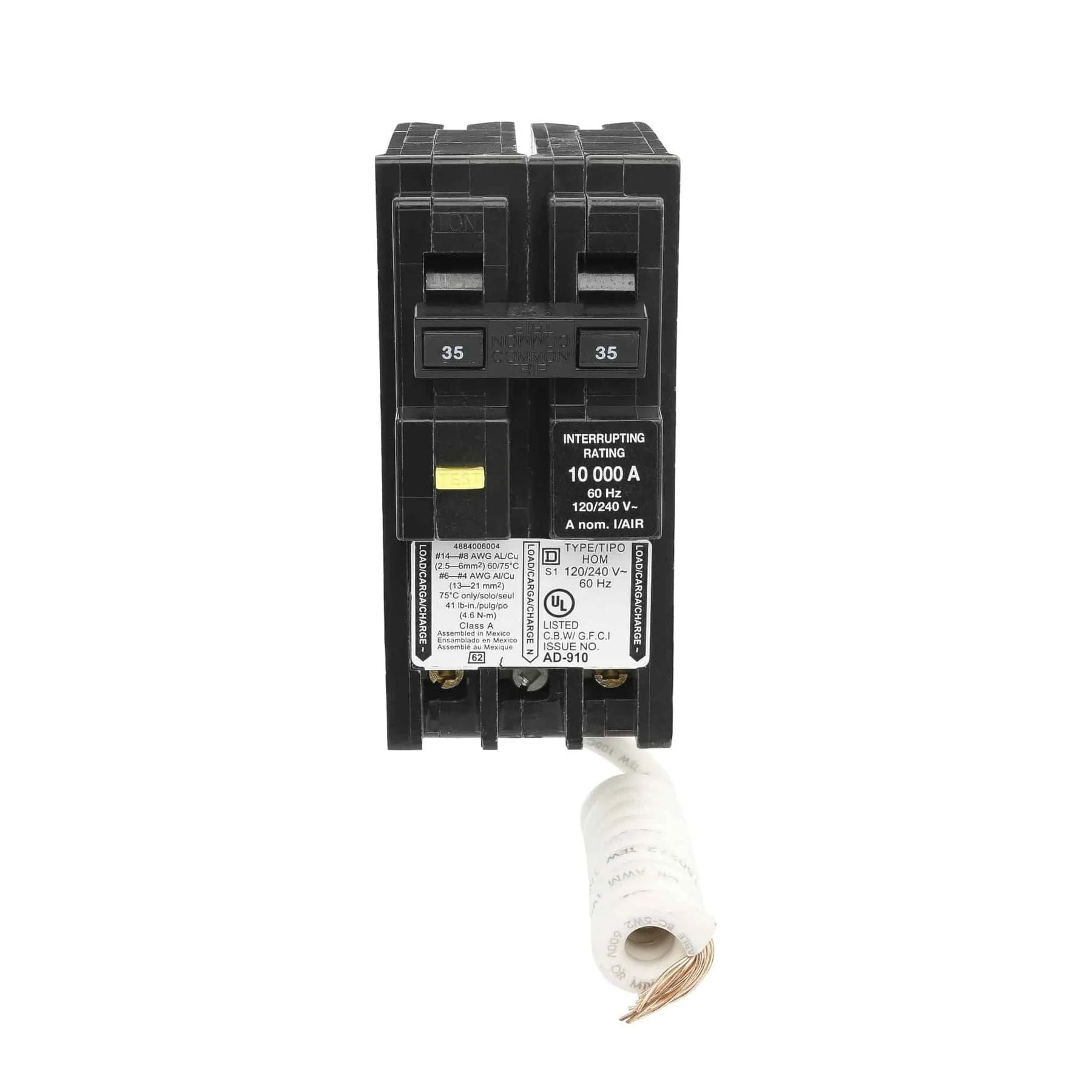

Square D Homeline HOM235GFI 35 Amp 2-Pole GFCI Circuit Breaker – Plug-In – 120/240V AC

The Schneider Electric Square D Homeline HOM235GFI is a 35 Amp, 2-pole ground-fault circuit interrupter (GFCI) breaker designed for residential Homeline load centers. It provides combined overload, short-circuit, and ground-fault protection for improved electrical safety in residential installations.

This model is commonly used in circuits requiring personnel protection against ground-fault shock hazards.

Electrical Ratings

• Current Rating: 35 Amps
• Voltage Rating: 120/240 Volts AC
• Phase: 1-Phase
• Frame Type: Homeline
• Application Category: Residential GFCI Circuit Breaker
• Protection Type: Thermal-Magnetic + Ground Fault Protection

Breaker & Protection Features

• Breaker Type: GFCI Circuit Breaker
• Number of Poles: 2-Pole
• Trip Unit Technology: Thermal-Magnetic
• Trip Functions: LI (Long-Time and Instantaneous)
• Ground Fault Protection: 5 mA sensitivity (Class A personnel protection)
• Protection Type: Overload, short-circuit, and ground-fault protection
• Control Type: Toggle mechanism

Mounting & Connection

• Connection Type: Plug-In
• Installation Type: Homeline load center compatible breaker
• Electrical Connection: Screw clamp terminals
• Panel Compatibility: Square D Homeline load centers
• Wiring Compatibility: Copper or aluminum conductors

Wiring & Termination

• Terminal Type: Screw clamp terminals
• Wiring Style: Dual-terminal clamp connection
• Conductor Support: Standard residential wiring applications

Physical Specifications

• Height: 3.5 in
• Width: 4.5 in
• Depth: 3.5 in
• Weight: 1.1 lbs

Certifications & Standards

• UL Listed
• CSA Approved
• HACR rated
• Designed for residential electrical safety applications
• Meets GFCI personnel protection standards (5 mA trip level)

Additional Features

• Ground-fault protection (5 mA sensitivity for personnel safety)
• Plug-in design for Homeline load centers
• Integrated overload and short-circuit protection
• Suitable for residential wet-location circuits
• Compact residential breaker design
• Reliable shock protection for household circuits

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D Homeline
• Series: Homeline
• Model: HOM235GFI
