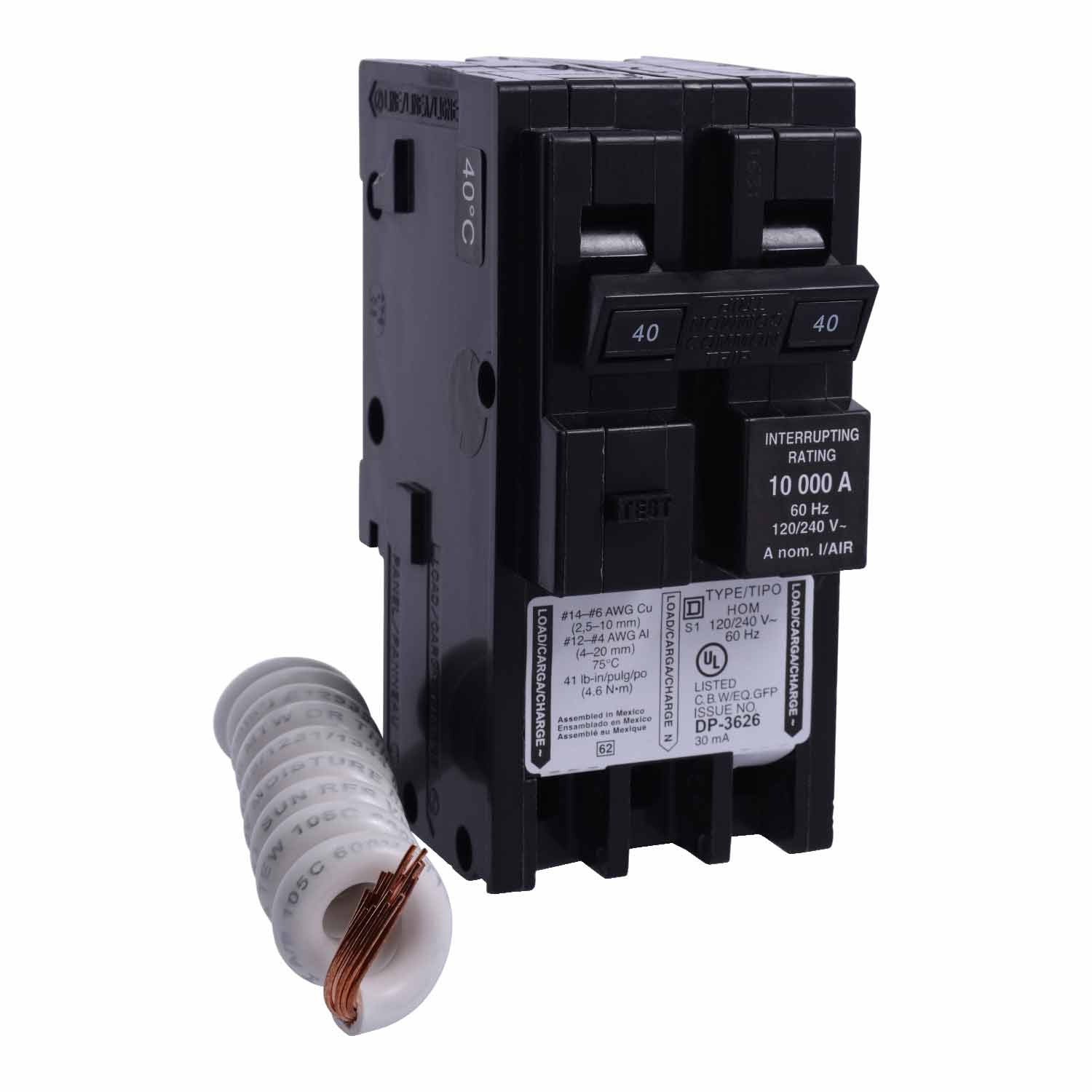

Square D Homeline HOM240EPD 40 Amp 2-Pole GFEP Circuit Breaker – Plug-In – 120/240V AC

The Schneider Electric Square D Homeline HOM240EPD is a 40 Amp, 2-pole ground-fault equipment protection (GFEP) circuit breaker designed for residential Homeline load centers. It provides combined overload, short-circuit, and ground-fault protection to enhance electrical safety in residential branch circuits.

This breaker is designed for quick plug-in installation and is commonly used in residential applications requiring equipment ground-fault protection.

Electrical Ratings

• Current Rating: 40 Amps
• Voltage Rating: 120/240 Volts AC
• Phase: 1-Phase
• Interrupting Capacity: 10 kA @ 240V AC
• Frame Type: Homeline
• Application Category: Residential GFEP Circuit Breaker
• Protection Type: Thermal-Magnetic + Ground Fault (30 mA equipment protection)

Breaker & Protection Features

• Breaker Type: GFEP Circuit Breaker
• Number of Poles: 2-Pole
• Trip Unit Technology: Thermal-Magnetic
• Trip Functions: LI (Long-Time and Instantaneous)
• Ground Fault Protection: 30 mA equipment protection
• Protection Type: Overload, short-circuit, and ground-fault protection
• Control Type: Toggle mechanism

Mounting & Connection

• Connection Type: Plug-In
• Installation Type: Homeline load center compatible breaker
• Electrical Connection: Clamp terminal (single wire)
• Panel Compatibility: Square D Homeline load centers
• Wiring Compatibility: Copper or aluminum conductors

Wiring & Termination

• Wire Size Range: AWG 14 to 8 (Cu/Al)
• Terminal Type: Clamp terminal
• Wiring Style: Residential plug-in termination

Physical Specifications

• Height: 3.13 in
• Width: 1 in
• Depth: 2.98 in
• Weight: 1.21 lbs

Certifications & Standards

• UL Listed
• CSA Approved
• HACR rated
• Designed for residential electrical protection systems
• Meets GFEP safety requirements for equipment protection

Additional Features

• Integrated 30 mA ground-fault equipment protection
• Fast plug-in installation for Homeline panels
• Combined overload, short-circuit, and ground-fault protection
• Compact residential breaker design
• Suitable for residential branch circuits requiring GFEP protection
• Reliable thermal-magnetic operation

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D Homeline
• Series: Homeline
• Model: HOM240EPD
