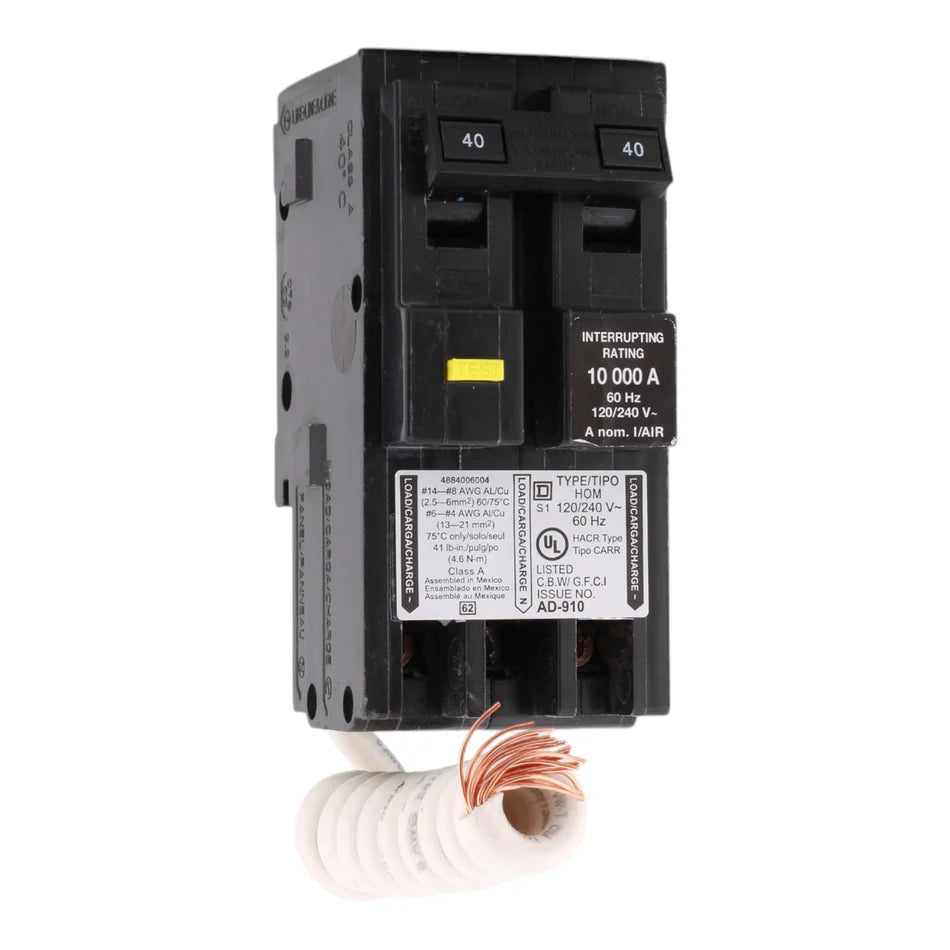

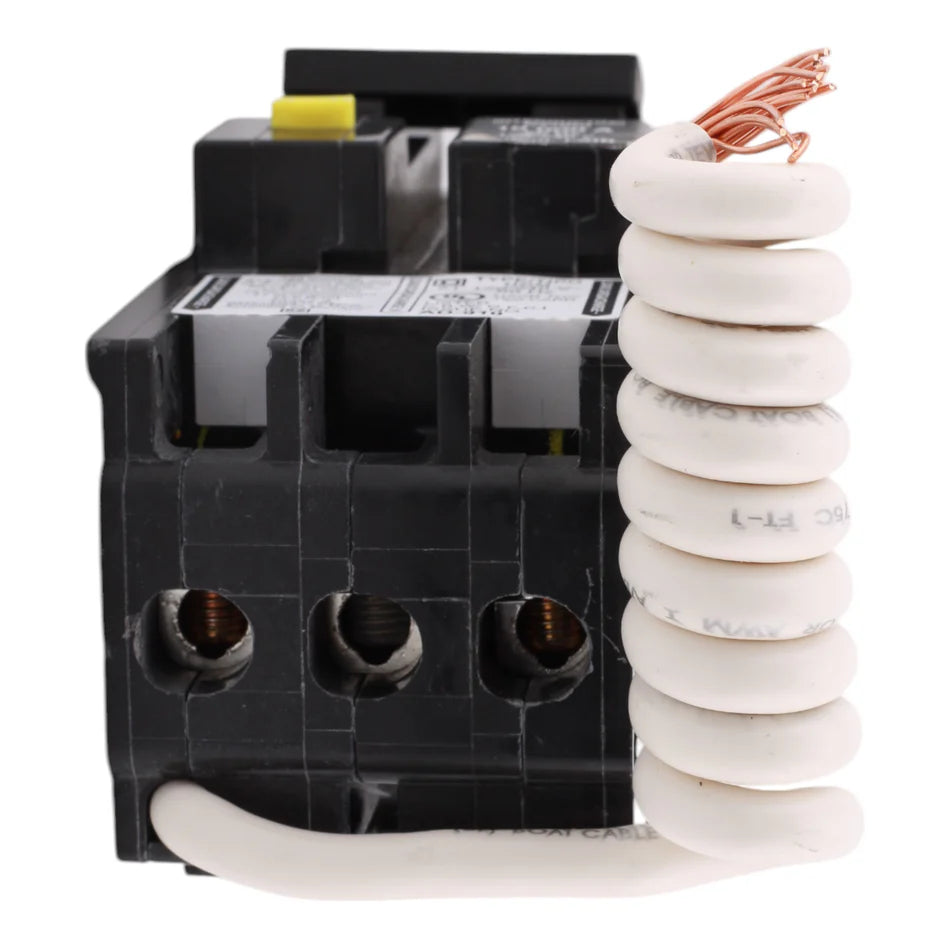

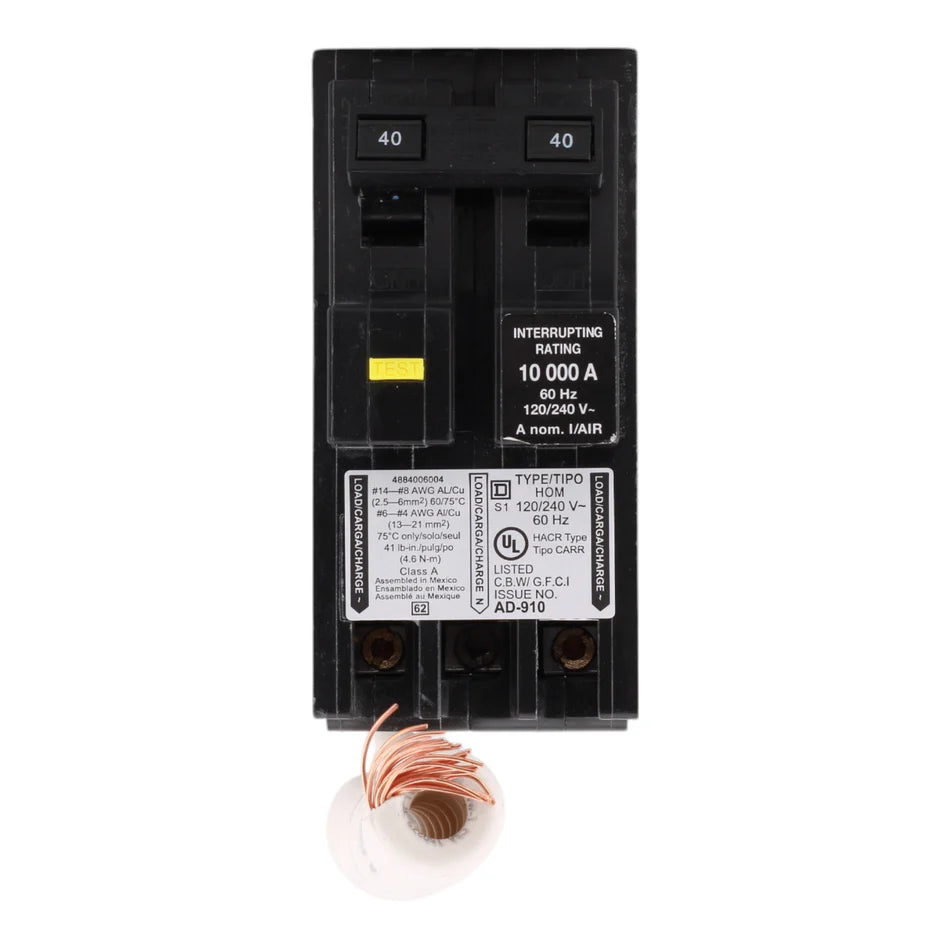

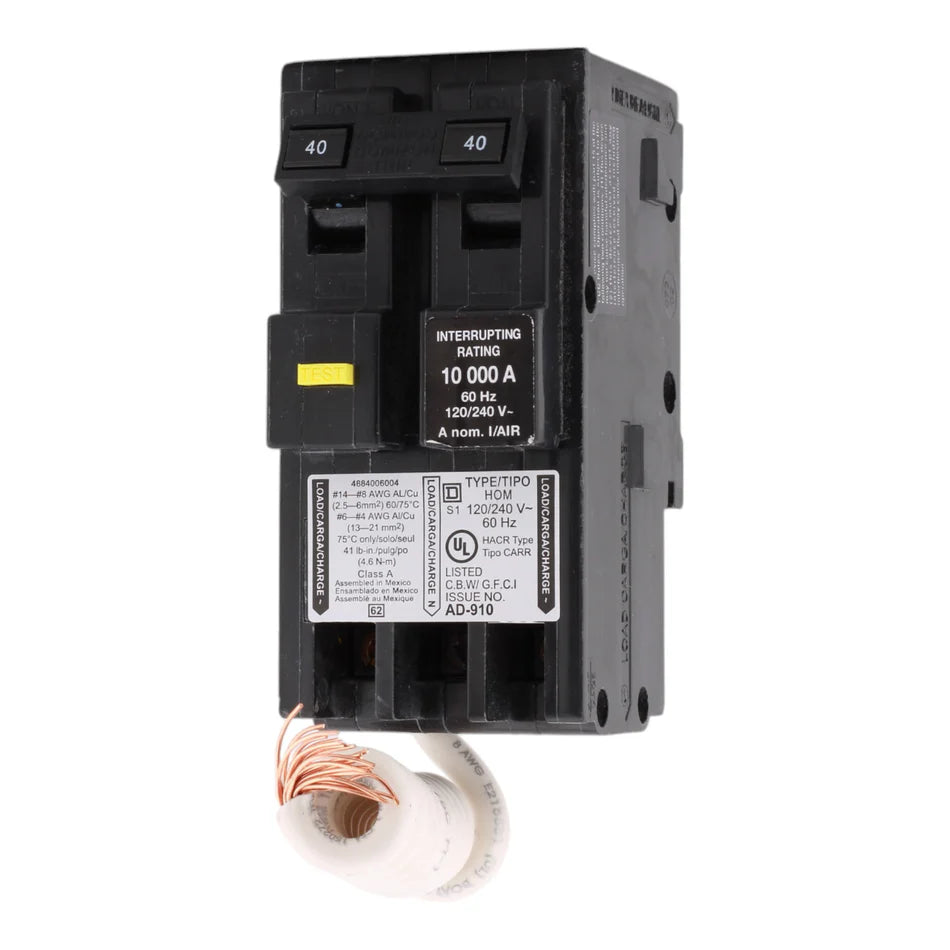

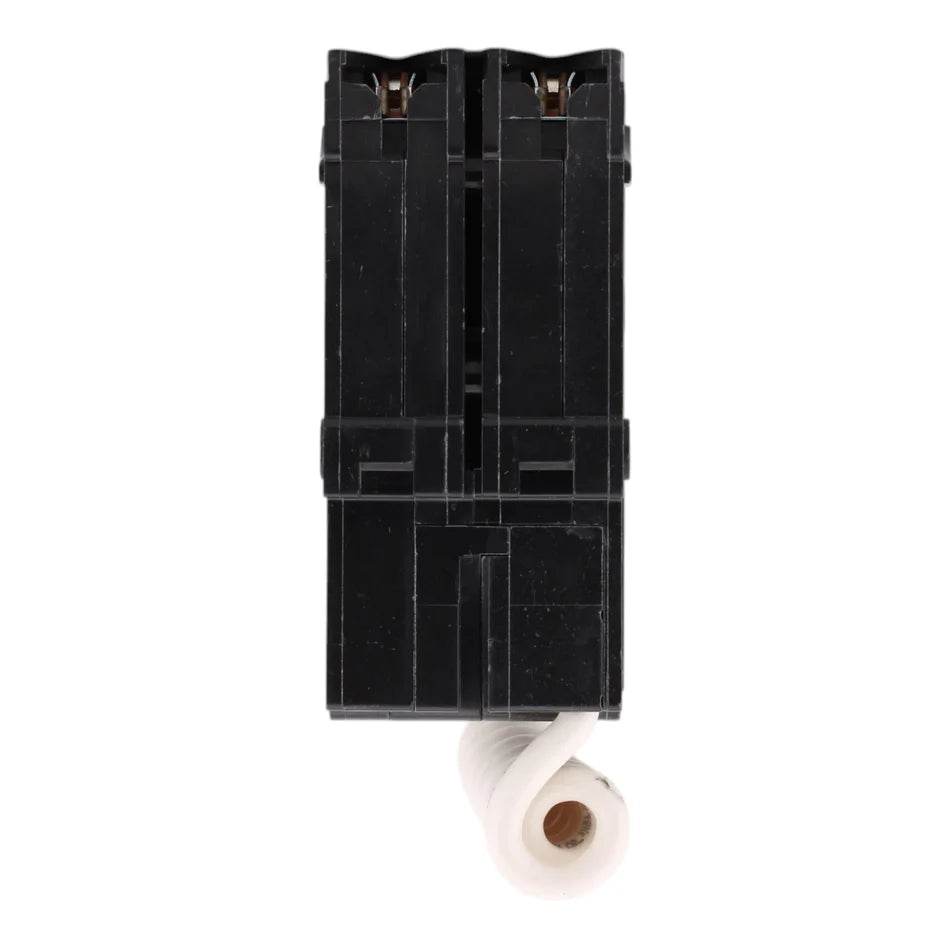

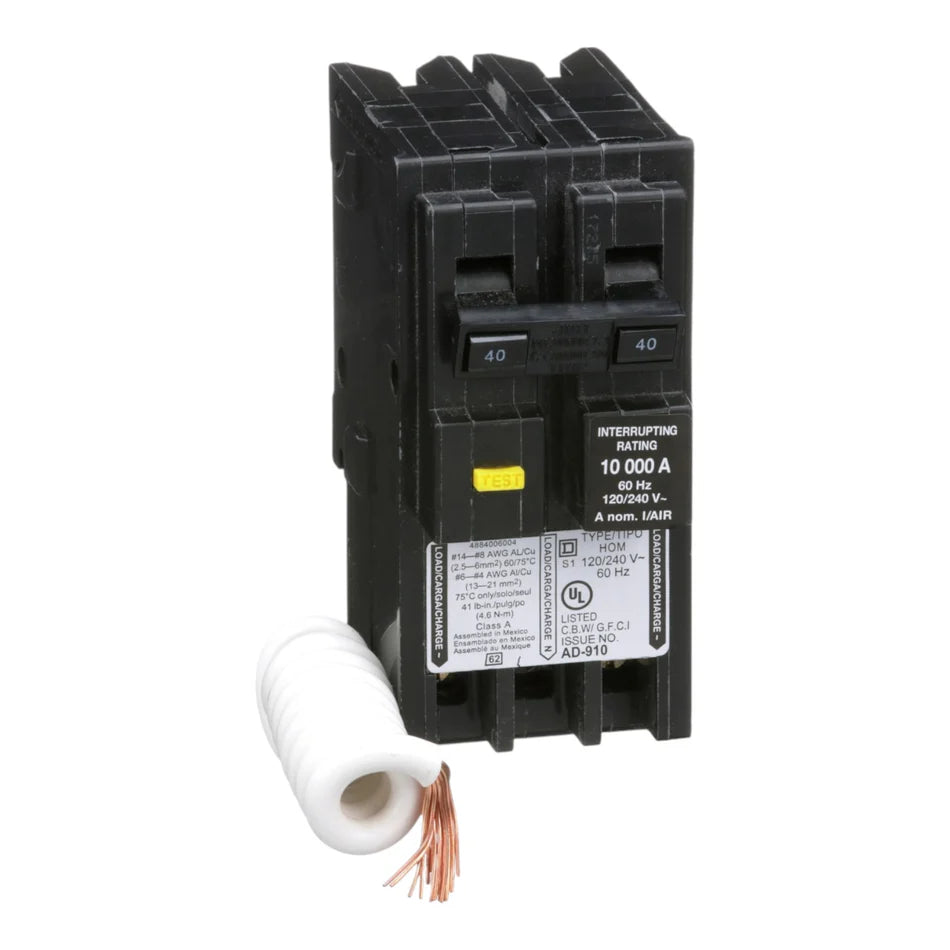

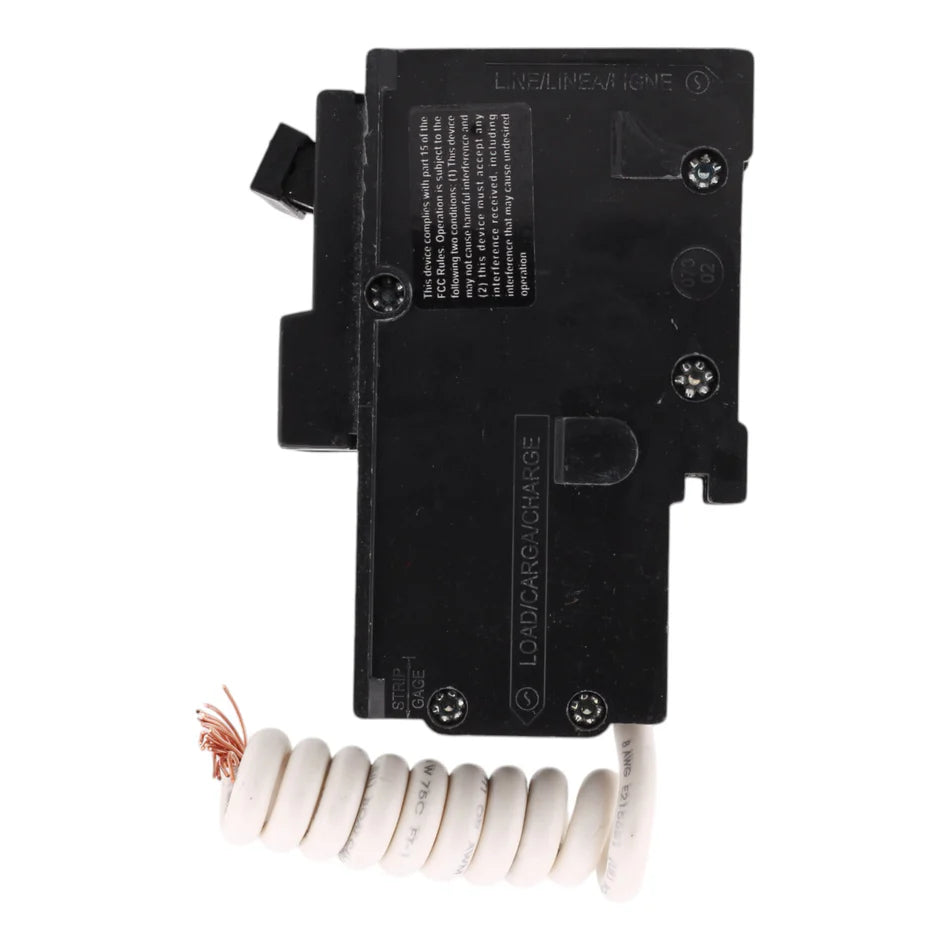

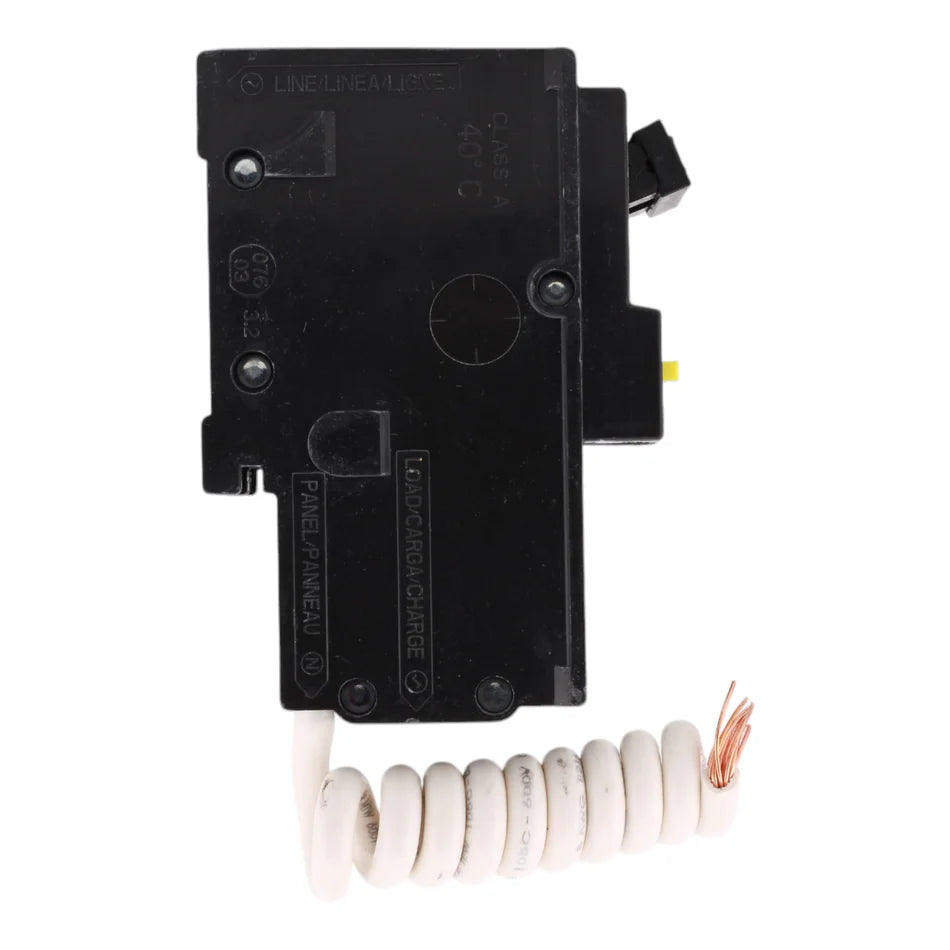

Square D Homeline HOM240GFI 40 Amp Double-Pole GFCI Circuit Breaker – Plug-In – 120/240V

The HOM240GFI GFCI Circuit Breaker from Square D is designed to provide Class A ground-fault protection, helping protect people and equipment from electrical shock hazards. Built for Square D Homeline load centers, this plug-in breaker delivers dependable performance for residential and light commercial applications.

Voltage and Rating

• Current Rating: 40 Amps
• Voltage Rating: 120/240 Volts AC
• Short Circuit Current Rating: 10 kA

Key Specifications

• Breaker Type: Ground Fault Circuit Interrupter (GFCI), Class A (6 mA)
• Number of Poles: 2-Pole
• Number of Spaces: 2
• Mounting Type: Plug-In
• Electrical Connection: Screw Clamp Terminals
• Product Range: Homeline

Technical Specifications

• Wire Size Compatibility:
• Copper: AWG 14 to AWG 6
• Aluminum: AWG 12 to AWG 4
• Tightening Torque: 40.7 lbf-in (4.6 N·m)
• Ambient Operating Temperature: Up to 104°F (40°C)
• Dimensions (H × W × D): 3.13" × 2" × 2.98"
• Net Weight: 1.22 lbs

Certifications and Ratings

• UL Listed
• HACR Rated
• RoHS Compliant
• Halogen Free

Product Data

• • Manufacturer: Schneider Electric
  • Brand: Square D
  • Model Number: HOM240GFI
  • UPC: 785901303466
