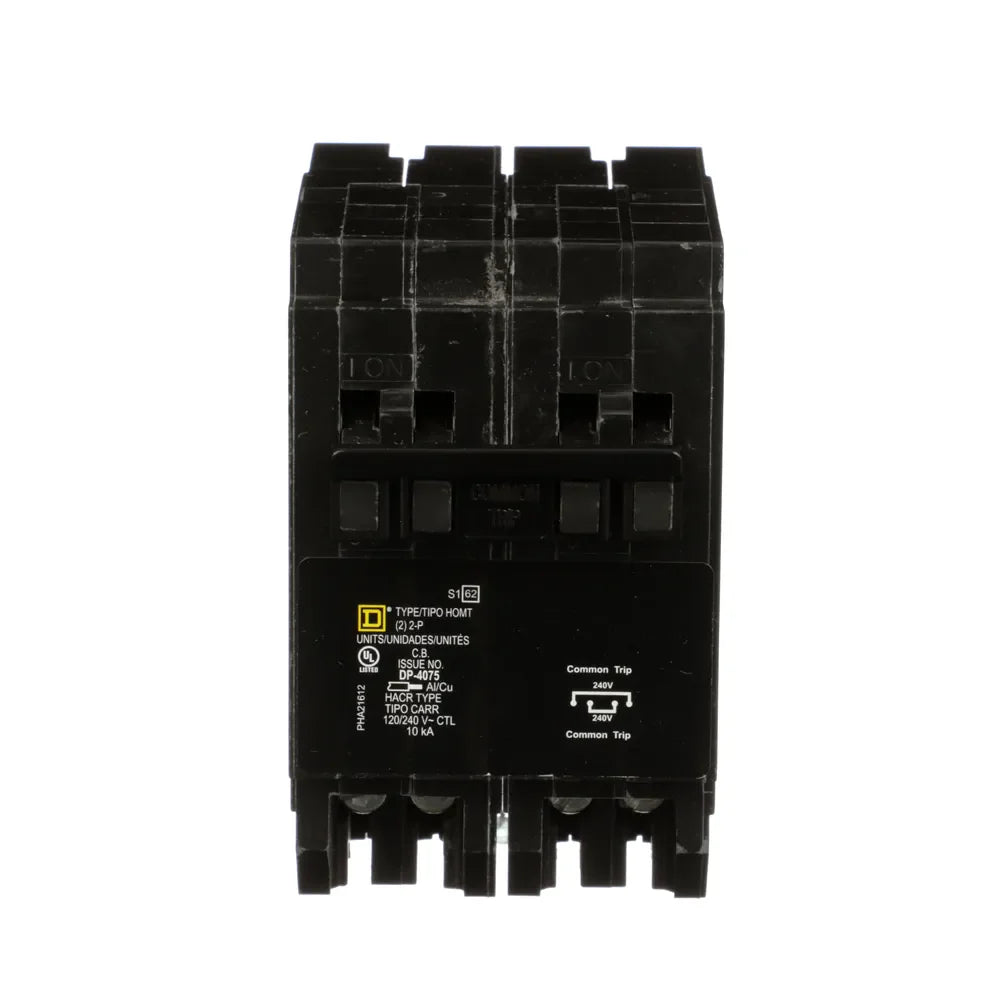

Square D Homeline HOMT215220 Quad Tandem 2 x 2-Pole (15A + 20A) Miniature Circuit Breaker – Plug-In – 120/240V AC

The Schneider Electric Square D Homeline HOMT215220 is a quad tandem miniature circuit breaker designed for Homeline load centers. It combines two separate 2-pole breakers (15A and 20A) into a compact 2-space design, enabling multiple circuit protection while saving panel space.

This breaker is commonly used in residential applications such as HVAC, refrigeration, and general branch circuits where mixed load ratings are required.

Electrical Ratings

• Current Rating: 15A + 20A (two independent 2-pole breakers)
• Number of Poles: 2 × 2-Pole (Quad Tandem configuration)
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kA @ 240V AC
• Application Category: Residential Miniature Circuit Breaker (MCB)
• Frequency: 50/60 Hz

Breaker & Protection Features

• Breaker Type: Quad Tandem Circuit Breaker
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI equivalent)
• Protection Type: Overload and short-circuit protection
• Control Type: Toggle mechanism
• HACR Rated: Yes (suitable for HVAC/R applications)

Mounting & Connection

• Connection Type: Plug-In
• Installation Type: Homeline load center compatible breaker
• Electrical Connection: Box lug terminals
• Panel Space Requirement: 2 spaces (HOM tandem design)
• Panel Compatibility: Square D Homeline load centers

Wiring & Termination

• Wire Size Range: AWG 14 to 8 (Copper/Aluminum)
• Terminal Type: Box lugs
• Wiring Style: Residential branch circuit wiring

Physical Specifications

• Height: 3.13 in
• Width: 2.00 in
• Depth: 2.98 in
• Mounting: Plug-in

Certifications & Standards

• UL Listed
• CSA Approved
• HACR rated
• Designed for residential electrical distribution systems
• Meets standard Homeline safety requirements

Additional Features

• Quad tandem design combining two independent breakers
• Saves panel space (2 circuits per 2-space footprint)
• Mixed rating configuration (15A + 20A)
• Reliable thermal-magnetic protection
• Ideal for HVAC, refrigeration, and residential branch circuits
• Fast plug-in installation

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D Homeline
• Series: Homeline Tandem
• Model: HOMT215220
