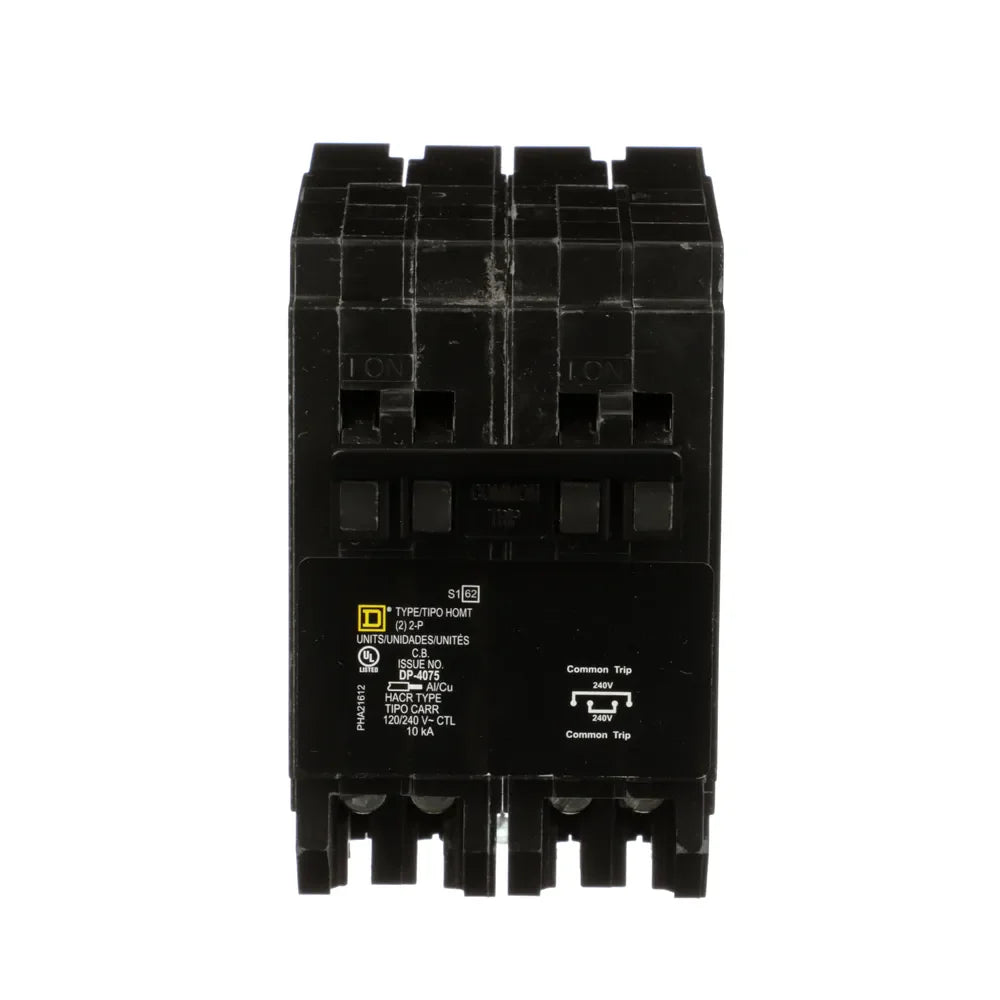

Square D Homeline HOMT215230 Quad Tandem 2 x 2-Pole (15A + 30A) Miniature Circuit Breaker – Plug-In – 120/240V AC

The Schneider Electric Square D Homeline HOMT215230 is a quad tandem miniature circuit breaker designed for Homeline load centers. It combines two independent 2-pole breakers (15A and 30A) in a compact 2-space configuration, allowing multiple circuit protection while conserving panel space.

This type is commonly used in residential installations where mixed-load branch circuits are required.

Electrical Ratings

• Current Rating: 15A + 30A (two independent 2-pole breakers)
• Number of Poles: 2 × 2-Pole (Quad Tandem configuration)
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kA @ 240V AC
• Application Category: Residential Miniature Circuit Breaker (MCB)
• Frequency: 50/60 Hz

Breaker & Protection Features

• Breaker Type: Quad Tandem Circuit Breaker
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous
• Protection Type: Overload and short-circuit protection
• Control Type: Toggle mechanism
• HACR Rated: Yes (HVAC/R compatible applications)

Mounting & Connection

• Connection Type: Plug-In
• Installation Type: Homeline load center compatible breaker
• Electrical Connection: Box lug terminals
• Panel Space Requirement: 2 spaces
• Panel Compatibility: Square D Homeline load centers

Wiring & Termination

• Wire Size Range: AWG 14 to 8 (Copper/Aluminum)
• Terminal Type: Box lugs
• Wiring Style: Residential branch circuit wiring

Physical Specifications

• Height: 3.13 in
• Width: 2.00 in
• Depth: 2.98 in
• Mounting: Plug-in

Certifications & Standards

• UL Listed
• CSA Approved
• HACR rated
• Designed for residential electrical distribution systems
• Standard Homeline safety compliance

Additional Features

• Quad tandem design with two independent breakers
• Space-saving 2-circuit configuration in 2 panel spaces
• Mixed rating configuration (15A + 30A)
• Reliable thermal-magnetic protection
• Ideal for residential HVAC and general branch circuits
• Fast plug-in installation

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D Homeline
• Series: Homeline Tandem
• Model: HOMT215230
