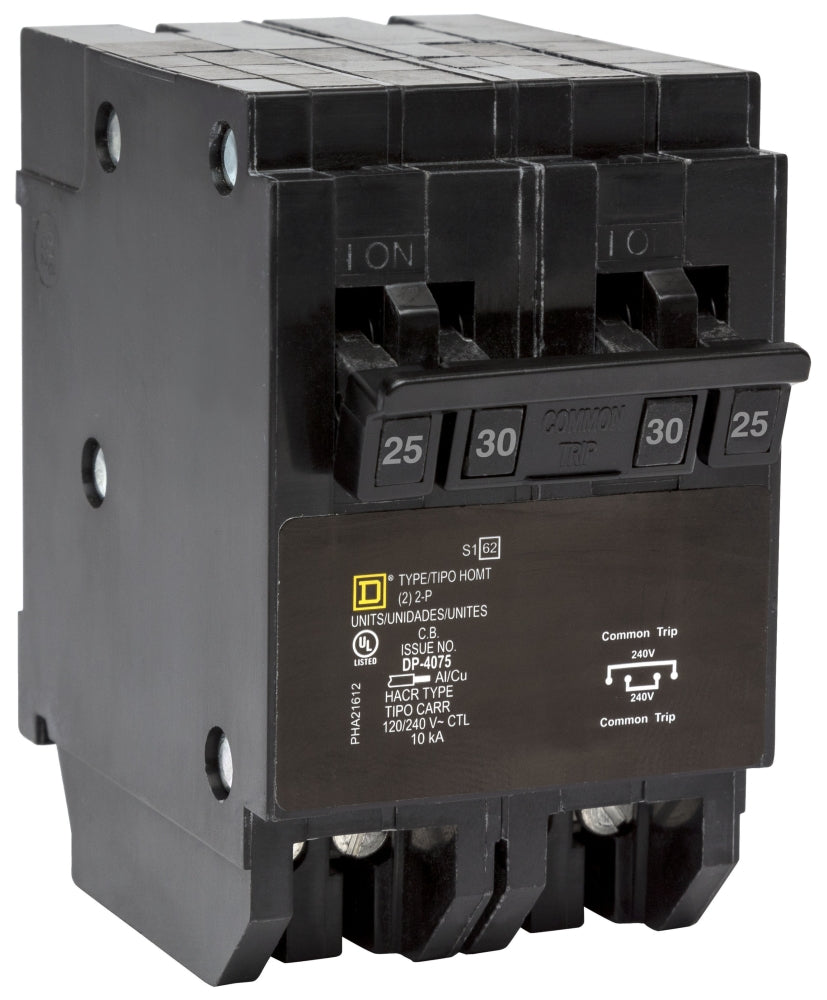

Square D Homeline HOMT225230 Quad Tandem 2 x 2-Pole (25A + 30A) Miniature Circuit Breaker – Plug-In – 120/240V AC

The Schneider Electric Square D Homeline HOMT225230 is a quad tandem miniature circuit breaker designed for Homeline load centers. It integrates two independent 2-pole breakers (25A and 30A) into a compact 2-space configuration, enabling multiple circuit protection while conserving panel space in residential electrical systems.

Electrical Ratings

• Current Rating: 25A + 30A (two independent 2-pole breakers)
• Number of Poles: 2 × 2-Pole (Quad Tandem configuration)
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kA AIR
• Frequency: 50/60 Hz
• Application: Residential branch circuit protection

Breaker & Protection Features

• Breaker Type: Quad Tandem Circuit Breaker
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous
• Protection: Overload and short-circuit protection
• Control Type: Toggle mechanism
• HACR Rated: Yes (Heating, Air Conditioning, Refrigeration applications)

Mounting & Connection

• Connection Type: Plug-In
• Installation Type: Homeline load center compatible breaker
• Electrical Connection: Box lug terminals
• Panel Space Requirement: 2 spaces
• Compatibility: Square D Homeline load centers

Wiring & Termination

• Wire Size Range: AWG 14 to 8 (Copper/Aluminum)
• Terminal Type: Box lugs
• Wiring Style: Residential branch circuits

Physical Specifications

• Configuration: Quad tandem (2 independent 2-pole breakers)
• Mounting: Plug-in
• Compact design for space-saving panel usage

Certifications & Standards

• UL Listed
• CSA Approved
• RoHS compliant
• REACH compliant
• HACR rated
• Designed for residential electrical distribution systems

Additional Features

• Dual independent breaker functionality in one unit
• Space-saving 2-space panel design
• Mixed load capability (25A + 30A circuits)
• Reliable thermal-magnetic protection system
• Fast installation via plug-in design
• Suitable for residential HVAC and general branch circuits

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D Homeline
• Series: Homeline Tandem
• Model: HOMT225230
