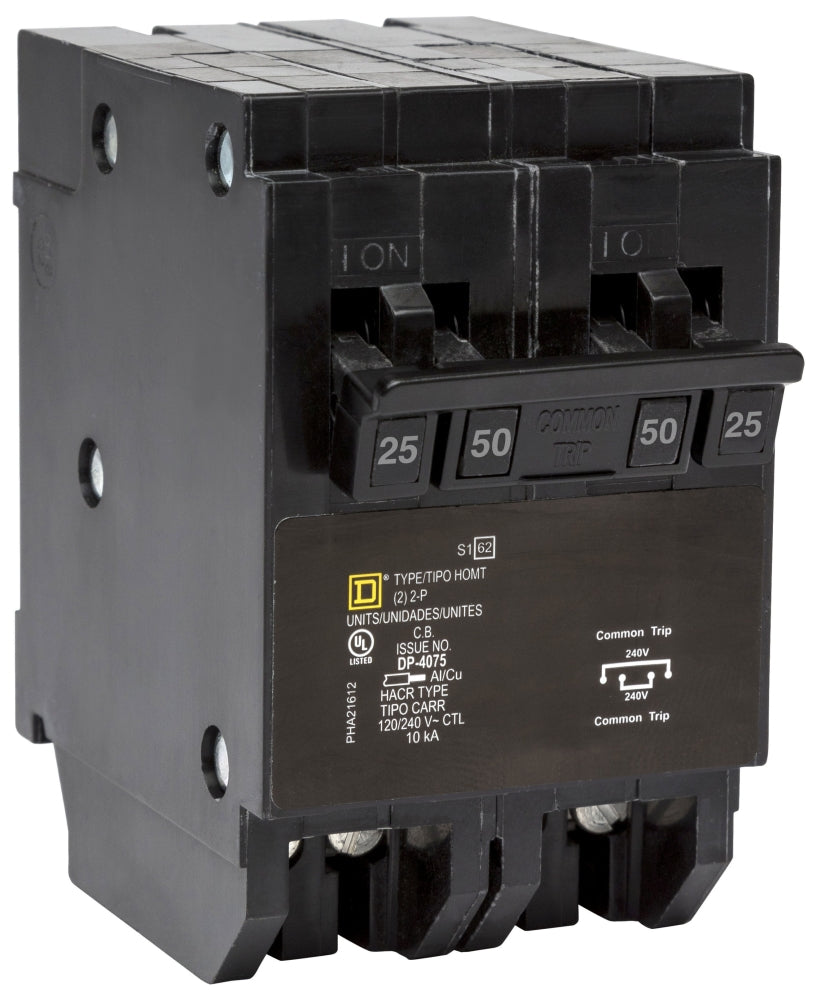

Square D Homeline HOMT225250 Quad Tandem 2 x 2-Pole (25A + 50A) Miniature Circuit Breaker – Plug-In – 120/240V AC

In stock
SKU: HOMT225250 GTIN/UPC: 785901040729
$95.20
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Schneider Electric Square D Homeline HOMT225250 is a quad tandem miniature circuit breaker designed for Homeline load centers. It combines two independent 2-pole breakers (25A and 50A) into a compact 2-space configuration, allowing multiple branch circuits while optimizing panel space.

It is commonly used in residential installations where mixed-load circuits such as HVAC equipment, refrigeration systems, and general branch circuits are required.

Electrical Ratings

  • Current Rating: 25A + 50A (two independent 2-pole breakers)
  • Number of Poles: 2 × 2-Pole (Quad Tandem configuration)
  • Voltage Rating: 120/240 Volts AC
  • Interrupting Capacity: 10 kA AIR
  • Frequency: 50/60 Hz
  • Application: Residential branch circuit protection

Breaker & Protection Features

  • Breaker Type: Quad Tandem Circuit Breaker
  • Trip Technology: Thermal-Magnetic
  • Trip Functions: Long-Time and Instantaneous
  • Protection: Overload and short-circuit protection
  • Control Type: Toggle mechanism
  • HACR Rated: Yes (Heating, Air Conditioning, Refrigeration applications)

Mounting & Connection

  • Connection Type: Plug-In
  • Installation Type: Homeline load center compatible breaker
  • Electrical Connection: Box lug terminals
  • Panel Space Requirement: 2 spaces
  • Compatibility: Square D Homeline load centers

Wiring & Termination

  • Wire Size Range: AWG 14 to 8 (Copper/Aluminum)
  • Terminal Type: Box lugs
  • Wiring Style: Residential branch circuits

Physical Specifications

  • Configuration: Quad tandem (2 independent 2-pole breakers)
  • Mounting: Plug-in
  • Compact design for space-saving panel usage

Certifications & Standards

  • UL Listed
  • CSA Approved
  • RoHS compliant
  • REACH compliant
  • HACR rated
  • Designed for residential electrical distribution systems

Additional Features

  • Dual independent breaker functionality in one unit
  • Space-saving 2-space panel design
  • Mixed load capability (25A + 50A circuits)
  • Reliable thermal-magnetic protection system
  • Fast installation via plug-in design
  • Suitable for residential HVAC and general branch circuits
  • Type Circuit Breakers
  • Vendor Square D
  • Brand Square D
