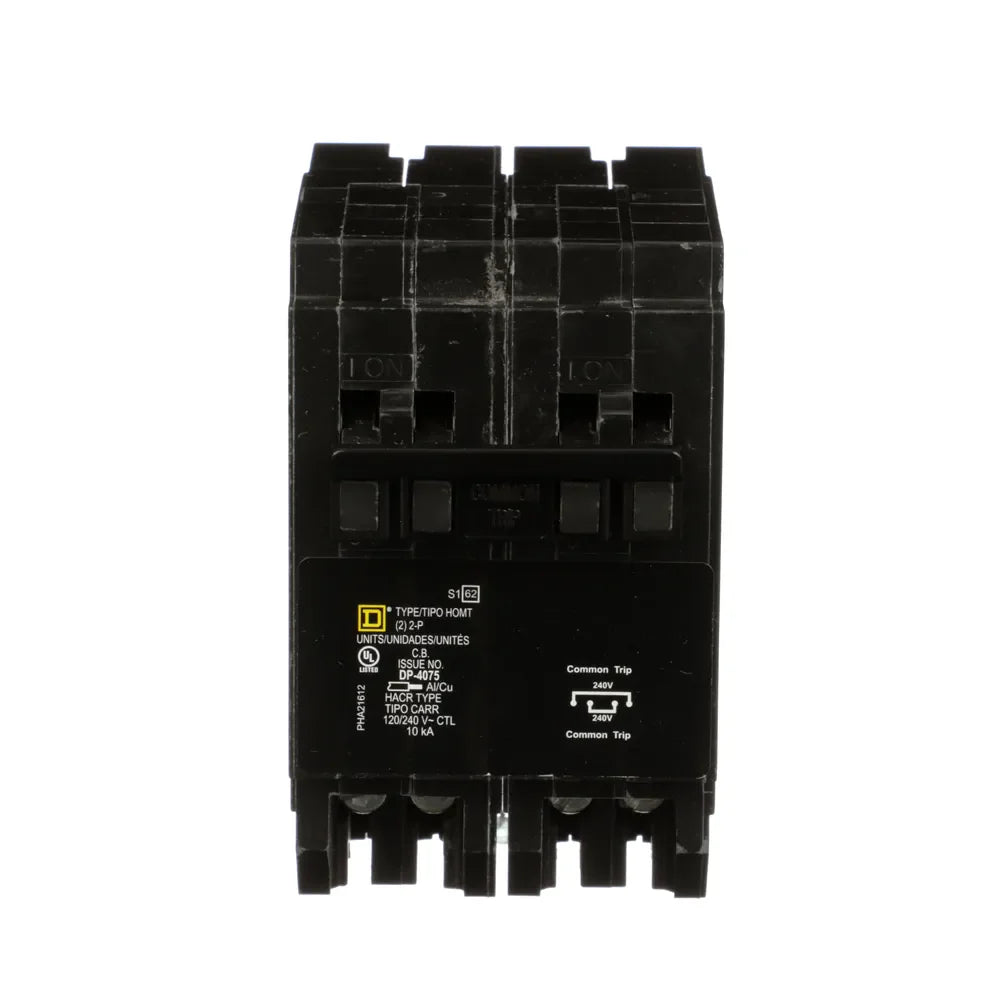

Square D Homeline HOMT230240 Quad Tandem 2 x 2-Pole (30A + 40A) Miniature Circuit Breaker – Plug-On – 120/240V AC

The Schneider Electric Square D Homeline HOMT230240 is a quad tandem miniature circuit breaker designed for Homeline load centers and CSED devices. It provides two independent 2-pole circuits (30A and 40A) in a compact footprint, allowing additional 240V loads without requiring extra panel space.

It is commonly used in residential applications, especially for HVAC and mixed-load branch circuits.

Electrical Ratings

• Current Rating: 30A + 40A (two independent 2-pole breakers)
• Number of Poles: 4 poles (quad tandem configuration)
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC @ 120/240V AC
• Phase: 1
• Frequency: 50/60 Hz
• Application: Residential branch circuit protection

Breaker & Protection Features

• Breaker Type: Quad Tandem Circuit Breaker
• Trip Technology: Thermal-Magnetic
• Trip Function Code: LI
• Trip Functions: Long-Time and Instantaneous
• Trip Adjustability: Fixed
• Protection: Overload and short-circuit protection
• Common Trip: Yes
• HACR Rated: Yes (Heating, Air Conditioning, Refrigeration equipment)

Mounting & Connection

• Mounting Style: Plug-On
• Connection Type: Plug-in to Homeline load centers / CSED devices
• Terminal Type: Box lugs
• Panel Compatibility: Square D Homeline load centers
• Application Fit: Residential distribution panels

Wiring & Termination

• Wire Range:
  • 30A circuit: 14–8 AWG (Cu/Al)
  • 40A circuit: 14–6 AWG (Cu/Al)
• Maximum Wire Size: 6 AWG
• Minimum Wire Size: 14 AWG
• Terminal Type: Box lug connections

Physical & Construction Features

• Configuration: Quad tandem (2 × 2-pole breakers)
• Design: Compact space-saving breaker body
• Temperature Rating: 40°C
• Control Type: Fixed toggle mechanism
• Construction Features: HACR rated, common trip design

Standards & Certifications

• UL 489 Listed
• CSA C22.2 No. 5 Certified
• CSA Approved
• HACR Rated
• Designed for residential electrical distribution systems
• Complies with standard North American electrical safety codes

Additional Features

• Adds two 240V circuits in a single compact device
• Reduces need for larger load center enclosures
• Plug-on installation for fast replacement
• Reliable thermal-magnetic protection system
• Suitable for HVAC, refrigeration, and residential loads
• Factory-configured fixed trip characteristics

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D Homeline
• Series: HOMT
