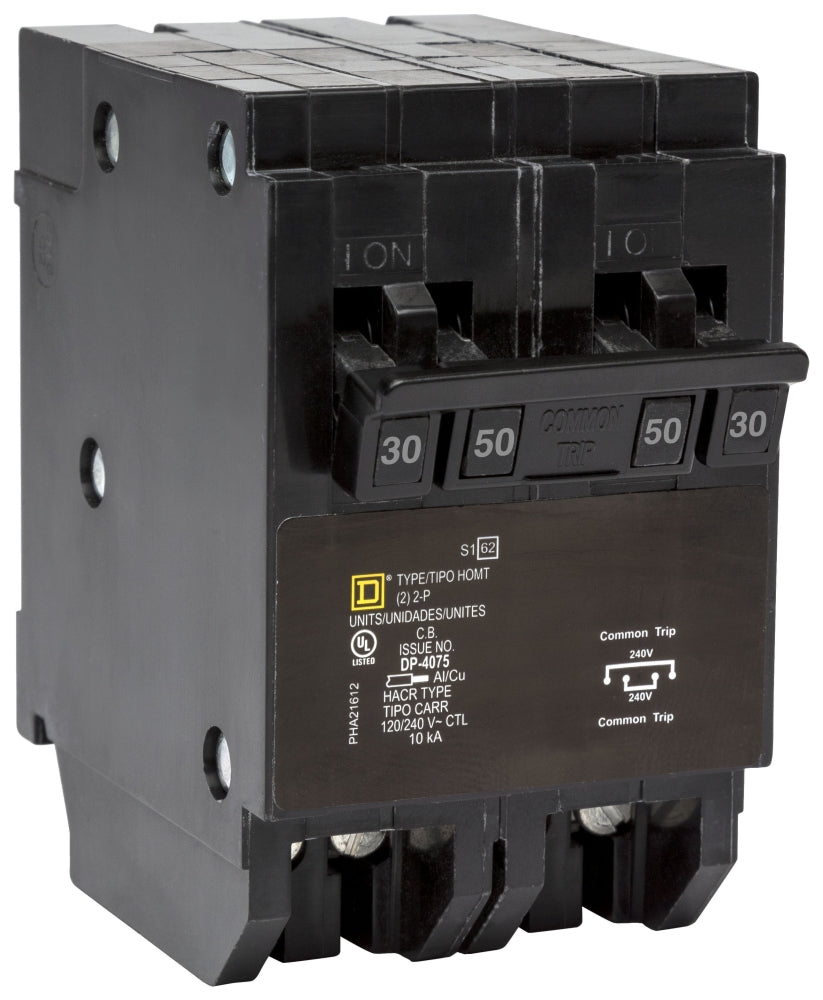

Square D Homeline HOMT230250 Quad Tandem 2 x 2-Pole (30A + 50A) Miniature Circuit Breaker – Plug-On – 120/240V AC

The Schneider Electric Square D Homeline HOMT230250 is a quad tandem miniature circuit breaker designed for Homeline load centers. It combines two independent 2-pole breakers (30A and 50A) in a compact 2-space configuration, allowing additional 240V circuits without increasing panel size.

It is commonly used in residential applications such as HVAC systems, refrigeration equipment, and mixed residential branch circuits.

Electrical Ratings

• Current Rating: 30A + 50A (two independent 2-pole breakers)
• Number of Poles: 2 × 2-Pole (Quad Tandem configuration)
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kA AIR
• Phase: 1
• Application: Residential branch circuit protection
• Frequency: 50/60 Hz

Breaker & Protection Features

• Breaker Type: Quad Tandem Circuit Breaker
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous
• Trip Code: LI (implicit per Homeline standard)
• Protection: Overload and short-circuit protection
• Control Type: Toggle mechanism
• HACR Rated: Yes (Heating, Air Conditioning, Refrigeration equipment)

Mounting & Connection

• Mounting Style: Plug-On
• Connection Type: Plug-in for Homeline load centers
• Terminal Type: Box lugs
• Panel Compatibility: Square D Homeline load centers
• Installation Type: Residential load center mounting

Wiring & Termination

• Wire Size Range:
  • 30A circuit: AWG 14–8 (Cu/Al)
  • 50A circuit: AWG 14–6 (Cu/Al)
• Terminal Type: Box lug terminals
• Max Wire Size: 6 AWG
• Min Wire Size: 14 AWG

Physical Specifications

• Configuration: Quad tandem (two independent 2-pole breakers)
• Dimensions: Approx. 1.97 in W × 3.29 in D × 3.13 in H
• Temperature Rating: 104°F (40°C)
• Compact space-saving design: 2 panel spaces

Certifications & Standards

• UL Listed
• CSA Approved
• RoHS compliant
• REACH compliant
• HACR rated
• Designed for residential electrical distribution systems

Additional Features

• Dual independent breaker configuration (30A + 50A)
• Saves panel space in Homeline load centers
• Plug-in installation for fast replacement
• Reliable thermal-magnetic protection
• Suitable for HVAC, refrigeration, and residential branch circuits
• Designed for mixed-load residential applications
