Square D

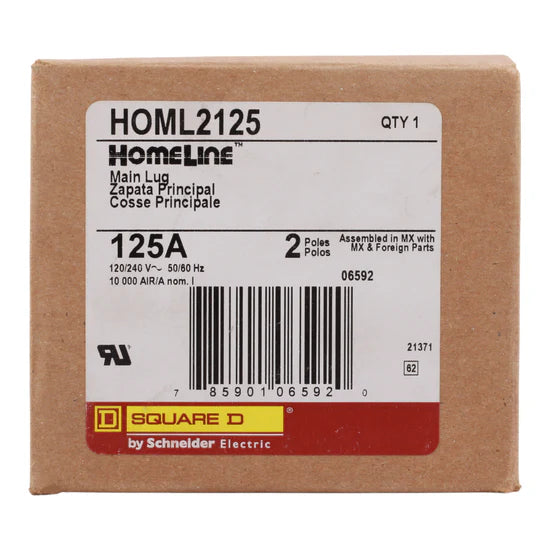

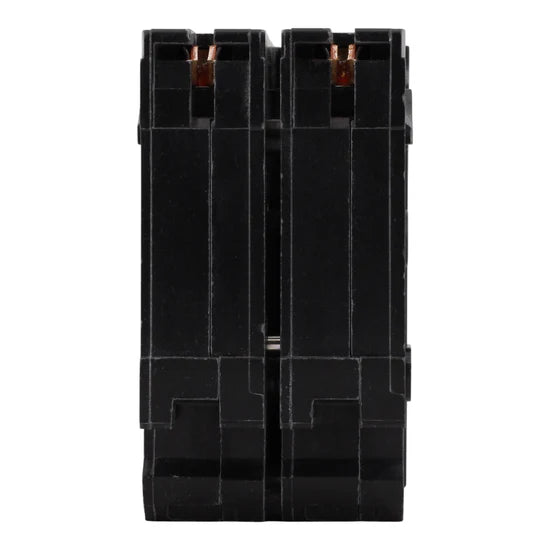

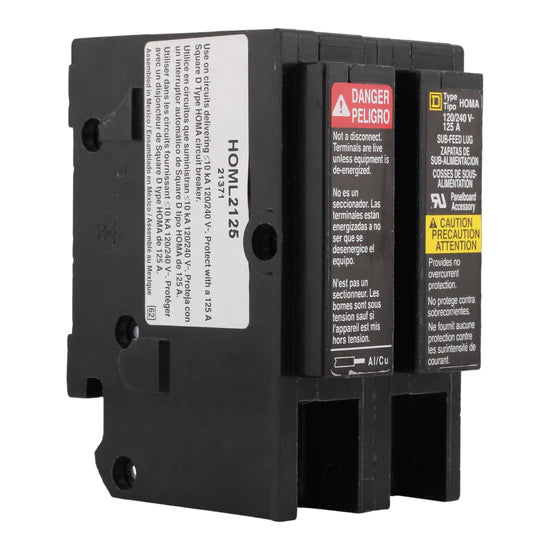

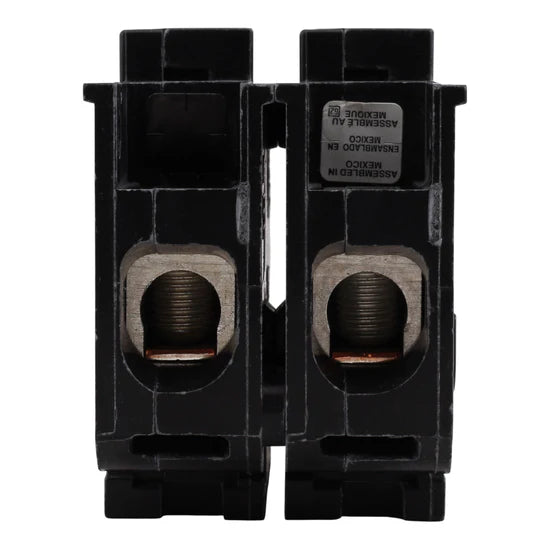

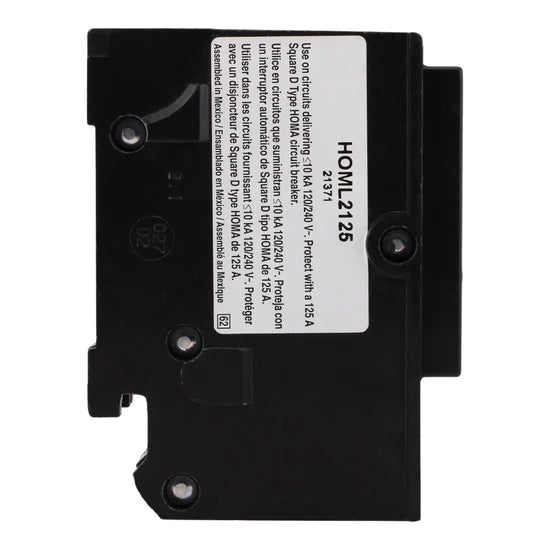

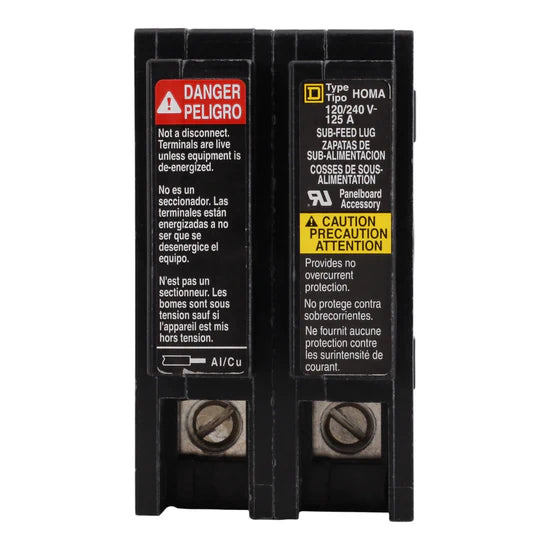

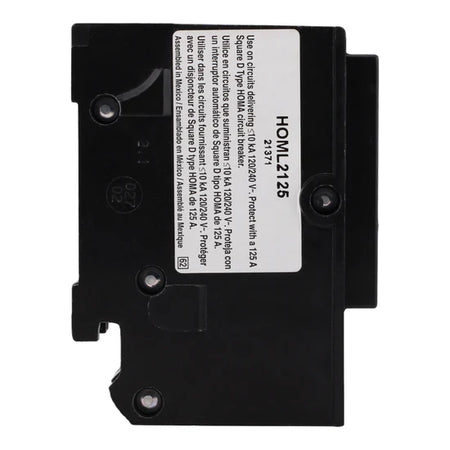

Square D HOML2125 125A 2-Pole Subfeed Lug Kit – Field-Installable – For Homeline Load Centers

In stock
SKU: HOML2125 GTIN/UPC: 785901065920
$58.75
SELECT ITEM CONDITION
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D HOML2125 is a 125 Amp, 2-pole subfeed lug kit designed for Homeline load centers. This field-installable kit allows main lug load centers to be converted for subfeeding power to another panel or device. It accepts AWG 1 to 300 kcmil copper or aluminum conductors, providing a reliable and flexible solution for residential and light commercial applications. The kit requires only two spaces in the panel and comes UL listed for safety compliance.

Electrical Ratings:

  • Amperage: 125 Amps
  • Poles: 2-Pole
  • Wire Size: AWG 1–300 kcmil Cu/Al
  • Tightening Torque: 248 lb-in (28 N·m)
  • Cable Cross Section: 0.08–0.2 in² (50–150 mm²)

Key Specifications:

  • Product Type: Subfeed Lug Kit
  • Application: Residential and light commercial load centers
  • Mounting Mode: Field-Installable

Technical Specifications:

  • Dimensions: 2.30" H × 3.50" W × 3.90" D
  • Weight: 0.741 lbs
  • Certifications: UL Listed

Product Data:

    • Manufacturer: Schneider Electric
    • Brand: Square D
    • Model Number: HOML2125
    • UPC: 785901065920
  • Type Circuit Breakers
  • Vendor Square D
  • Brand Square D
