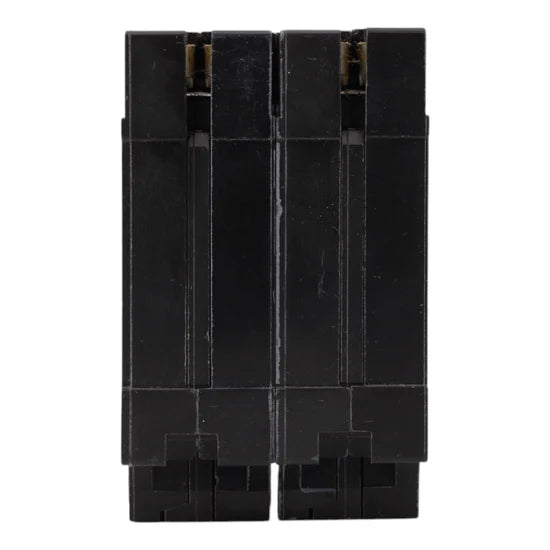

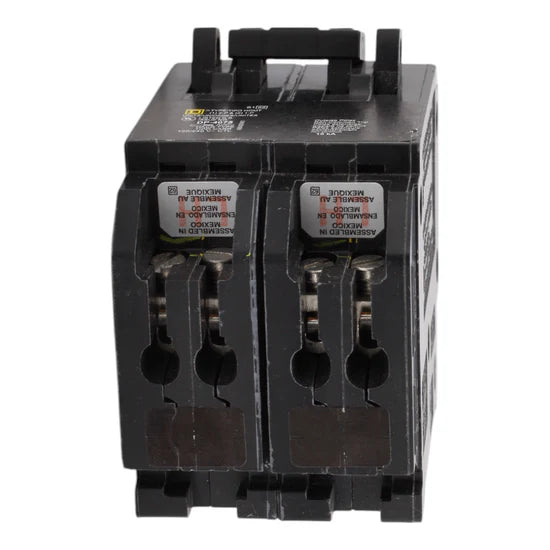

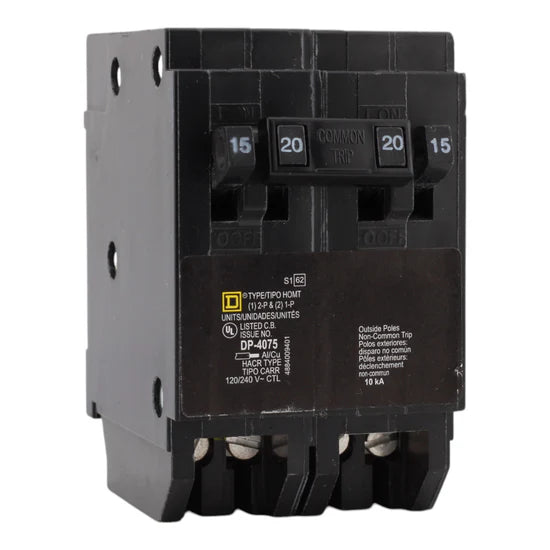

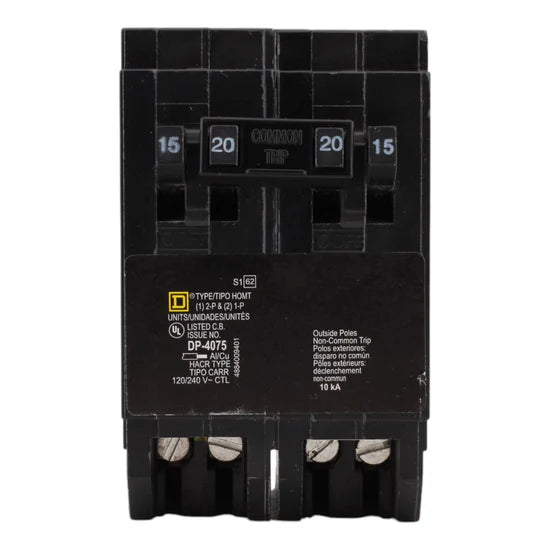

Square D HOMT1515220 15A/20A Quad Thermal Magnetic Circuit Breaker – Plug-In – 120/240V

The Square D HOMT1515220 quad tandem circuit breaker delivers space-saving multi-circuit protection for Homeline load centers. This unit combines two single-pole circuits and one double-pole circuit in a compact design that occupies only two panel spaces. The plug-in configuration enables fast installation, while thermal-magnetic technology provides dependable overload and short-circuit protection for residential and light commercial electrical systems.

Voltage and Rating

• Amperage Rating: 15 Amps (Single Pole), 20 Amps (Double Pole)
• Voltage Rating: 120/240 Volts AC

Key Specifications

• Type: Quad Tandem Circuit Breaker
• Number of Poles: 2 × Single-Pole, 1 × Double-Pole
• Breaker Technology: Thermal Magnetic
• Connection Type: Plug-In
• Short Circuit Current Rating: 10 kAIC
• Compatibility: Square D Homeline Load Centers
• Panel Space: Occupies two load center spaces

Technical Specifications

• Circuit Protection: Thermal magnetic
• Mounting Style: Plug-in breaker
• Protection Function: Overload and short-circuit protection

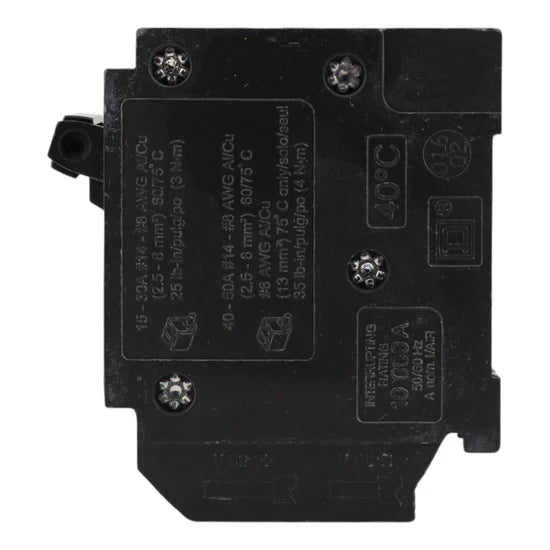

• Wire Size: AWG 14–8 (Copper or Aluminum)
• Tightening Torque: 35.4 lbf.in (4.0 N.m)
• Certifications: UL Listed, HACR Rated

Product Data

• • Brand: Square D
  • Manufacturer: Schneider Electric
  • Model Number: HOMT1515220
  • UPC: 785901101000
  • Dimensions (H × W × D): 3.13 × 2 × 2.98 inches
  • Weight: 0.84 lb
