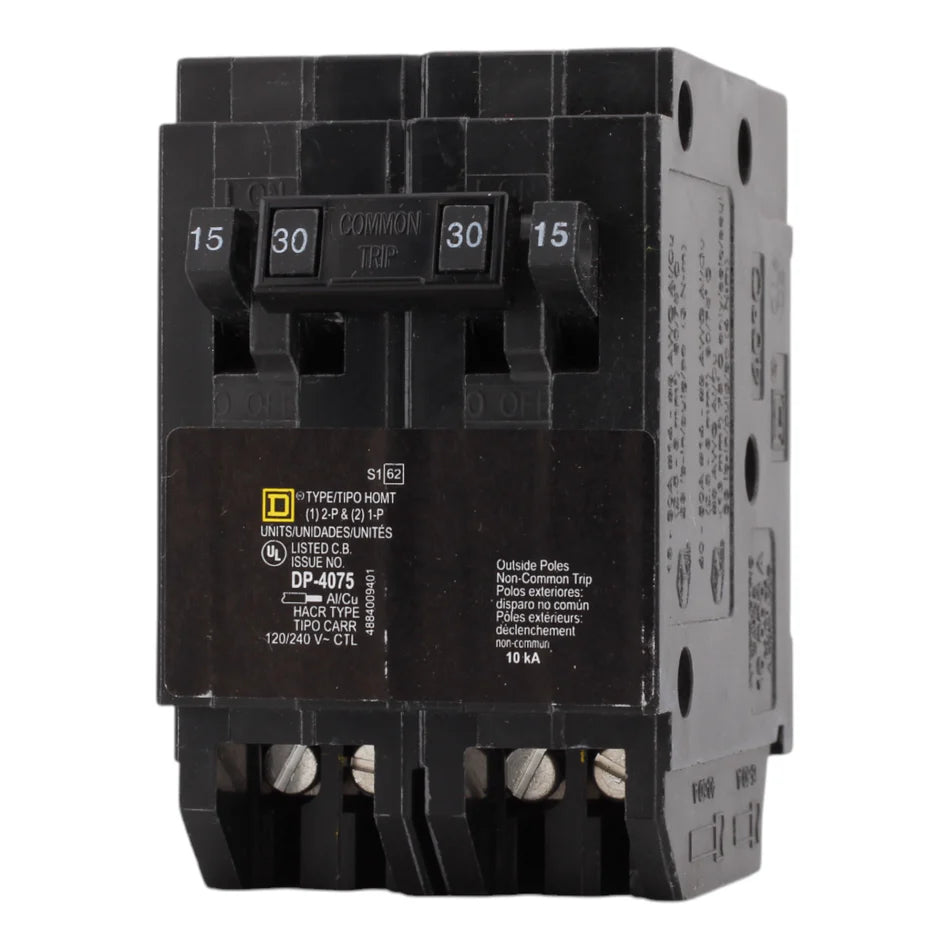

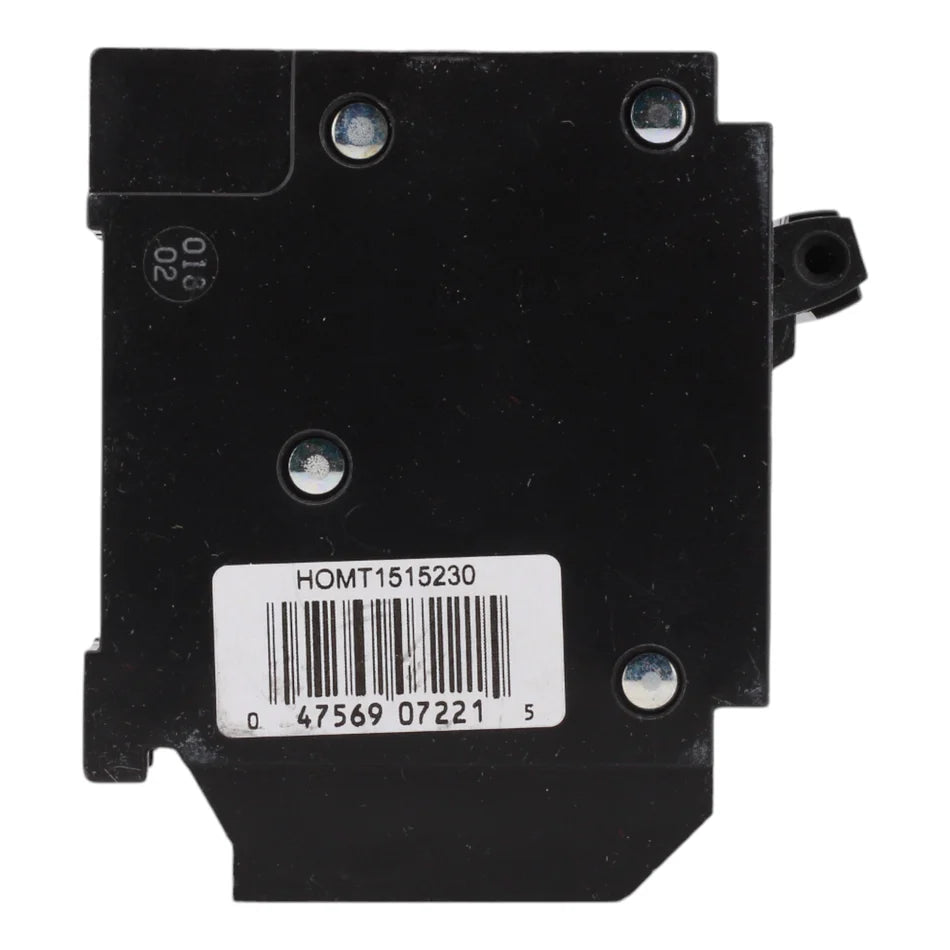

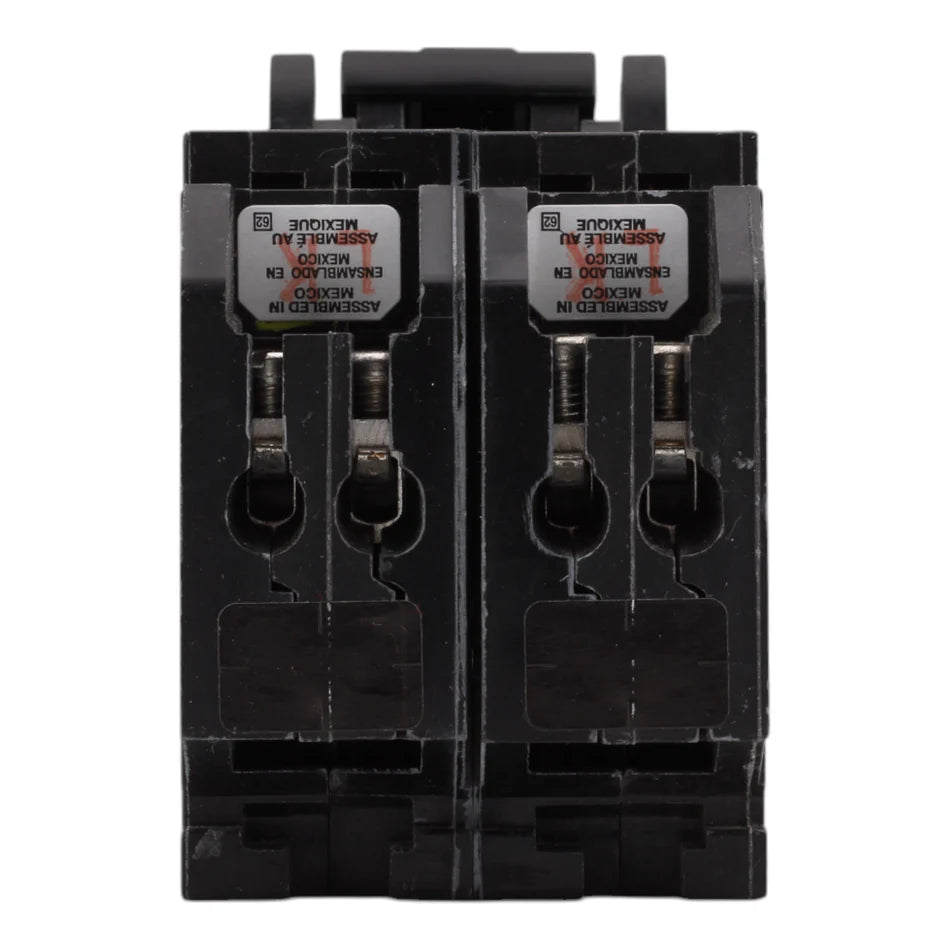

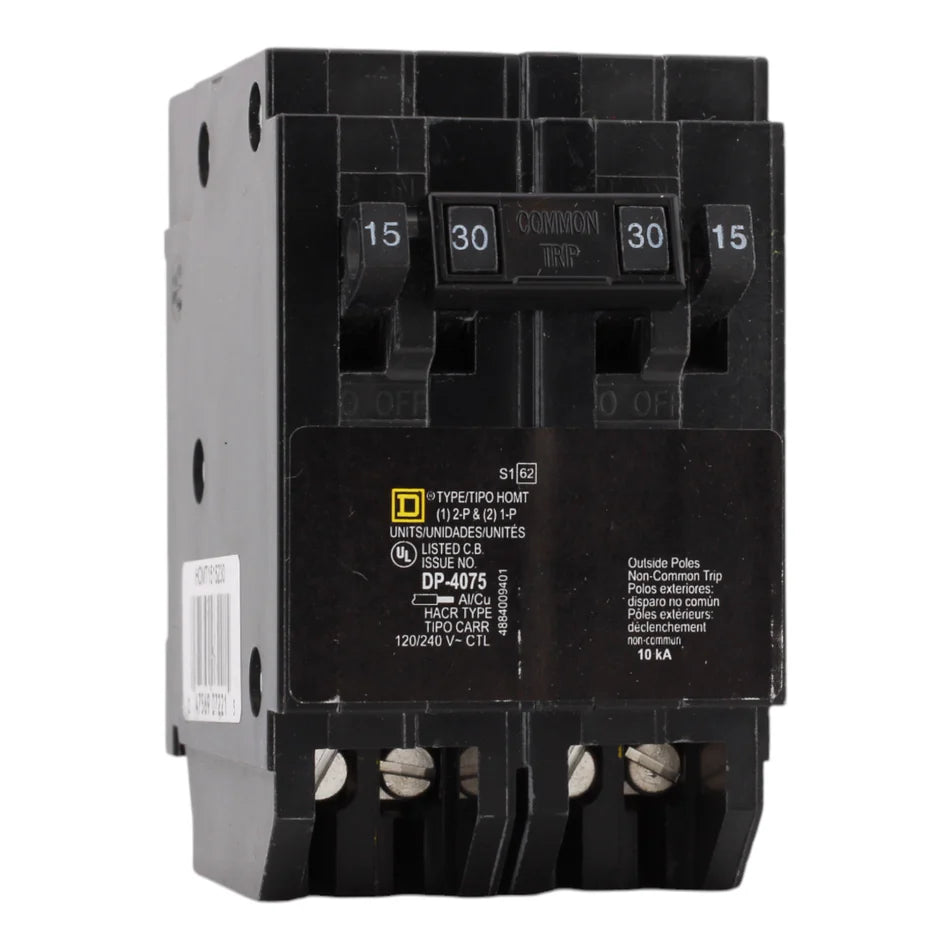

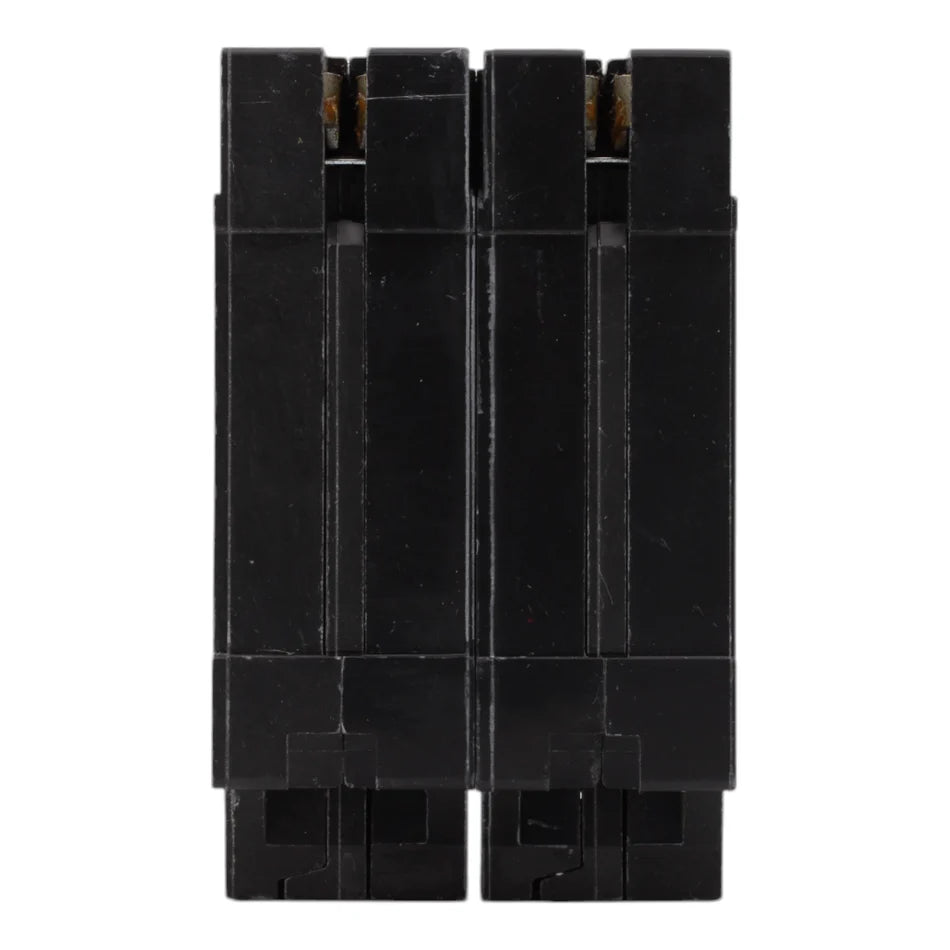

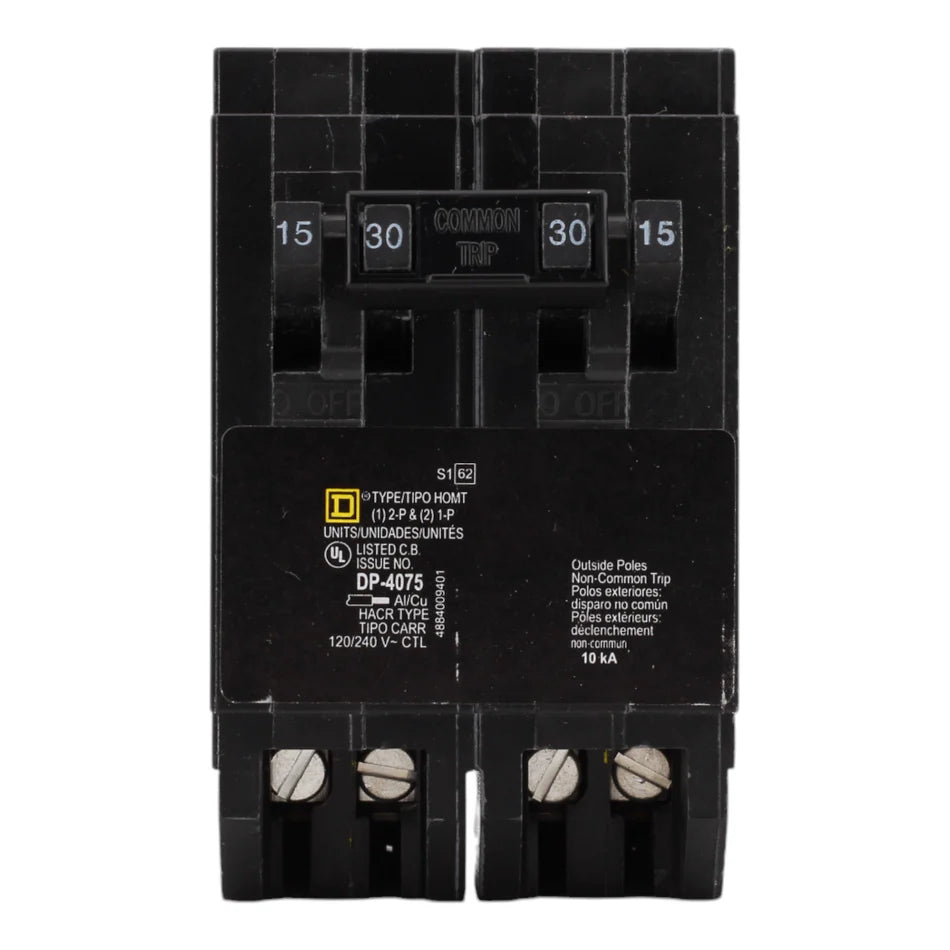

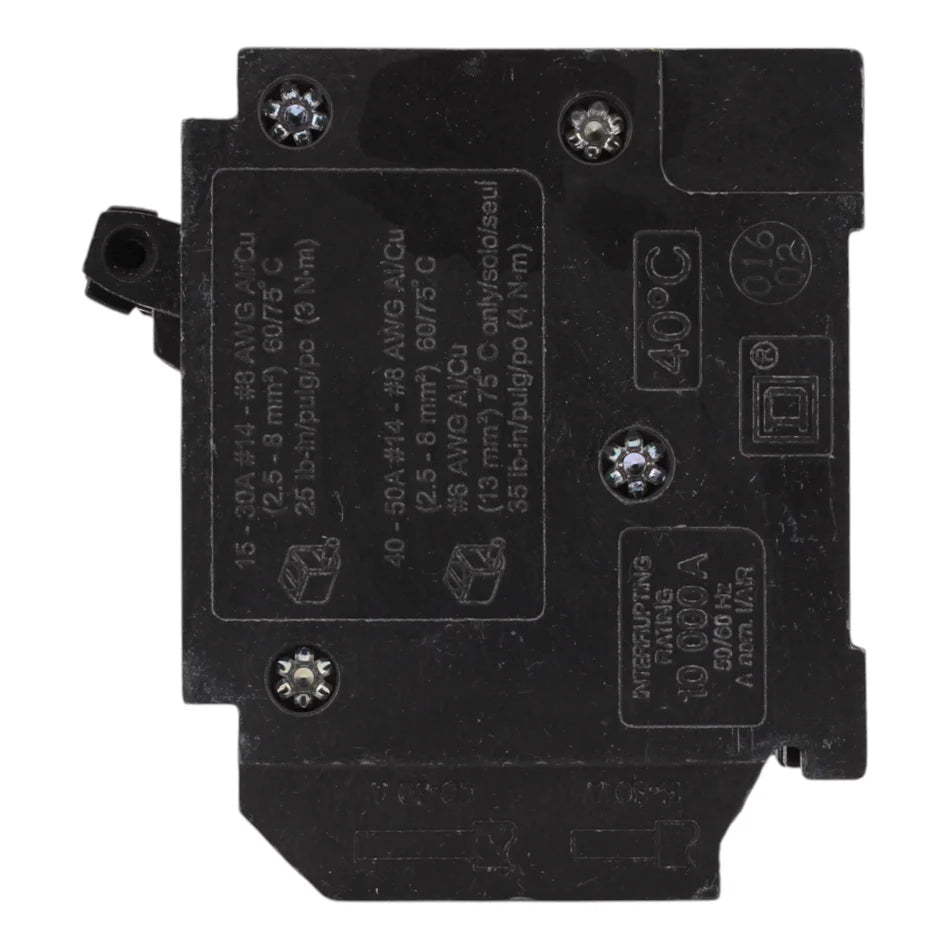

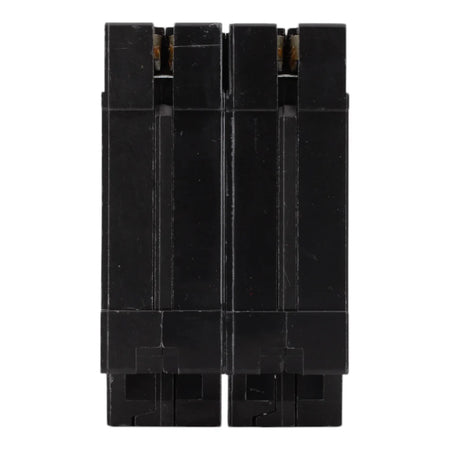

Square D HOMT1515230 Quad Tandem Circuit Breaker – 15A/30A – 120/240V – Plug-In – Homeline

The HOMT1515230 Quad Tandem Circuit Breaker from Square D is engineered to expand circuit capacity in Homeline load centers without adding panel space. This quad tandem configuration combines two 15-amp single-pole circuits and one 30-amp double-pole circuit in a compact, plug-in design—ideal for residential applications requiring mixed branch and 240V loads.

Voltage and Rating

• Current Rating: 15 Amps (2 × 1-Pole) / 30 Amps (1 × 2-Pole)
• Voltage Rating: 120/240 Volts AC
• Interrupt Rating: 10 kA

Breaker Details

• Breaker Type: Quad Tandem Circuit Breaker
• Number of Poles: 2 × 1-Pole + 1 × 2-Pole
• Mounting Type: Plug-In
• Panel Compatibility: Square D Homeline Load Centers

Technical Specifications

• Wire Size Compatibility: 14–8 AWG (Copper / Aluminum)
• Dimensions (H × W × D): 3.13 × 2.00 × 2.98 in
• Weight: 0.85 lb

Certifications

• UL Listed

Product Data

• • Brand: Square D
  • Manufacturer: Schneider Electric
  • Model Number: HOMT1515230
  • UPC: 785901101017
