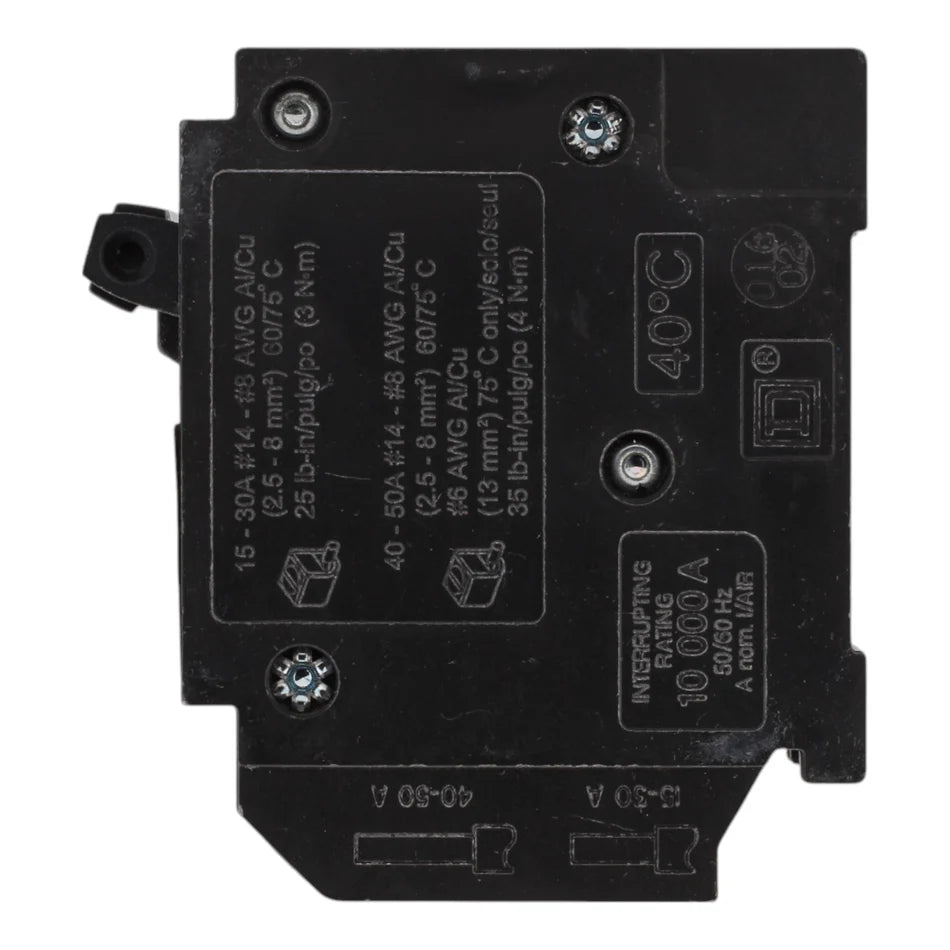

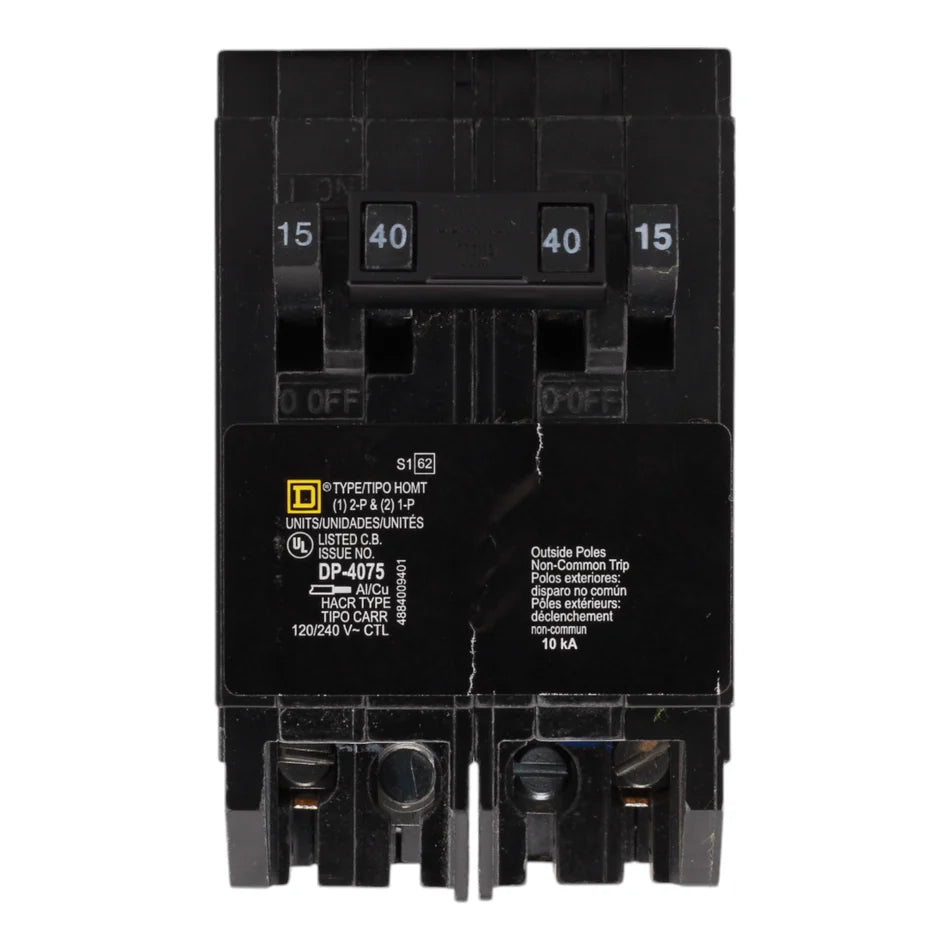

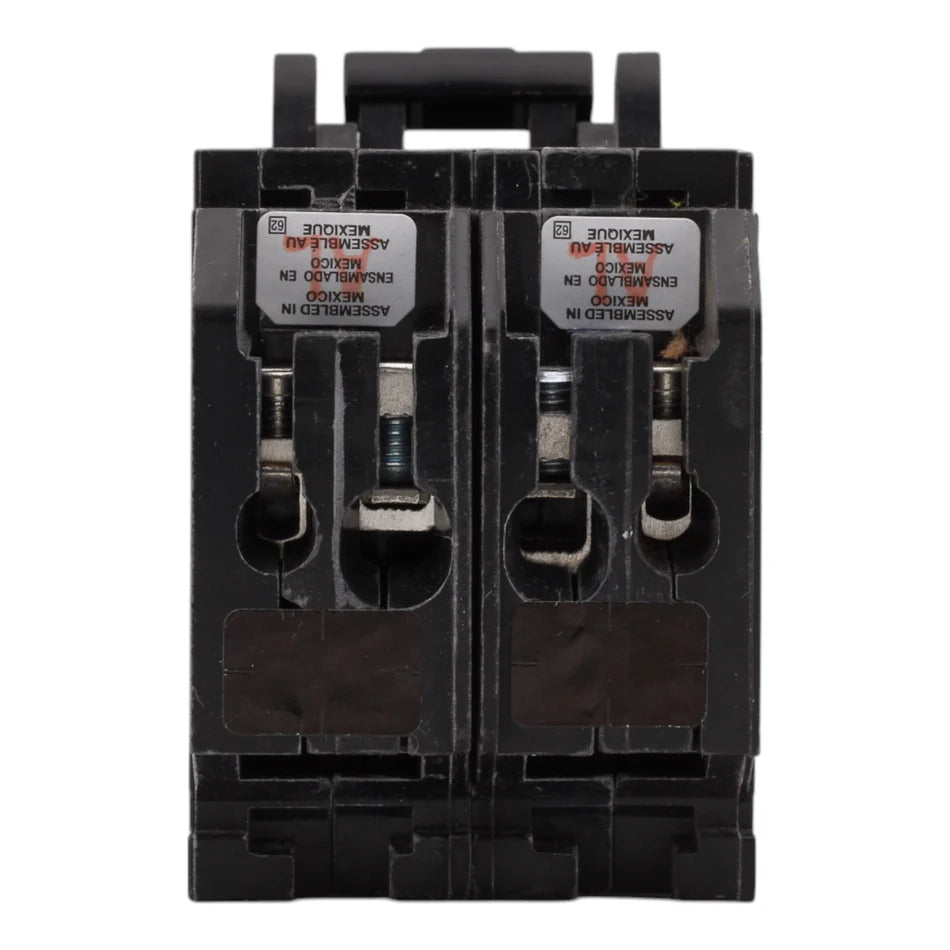

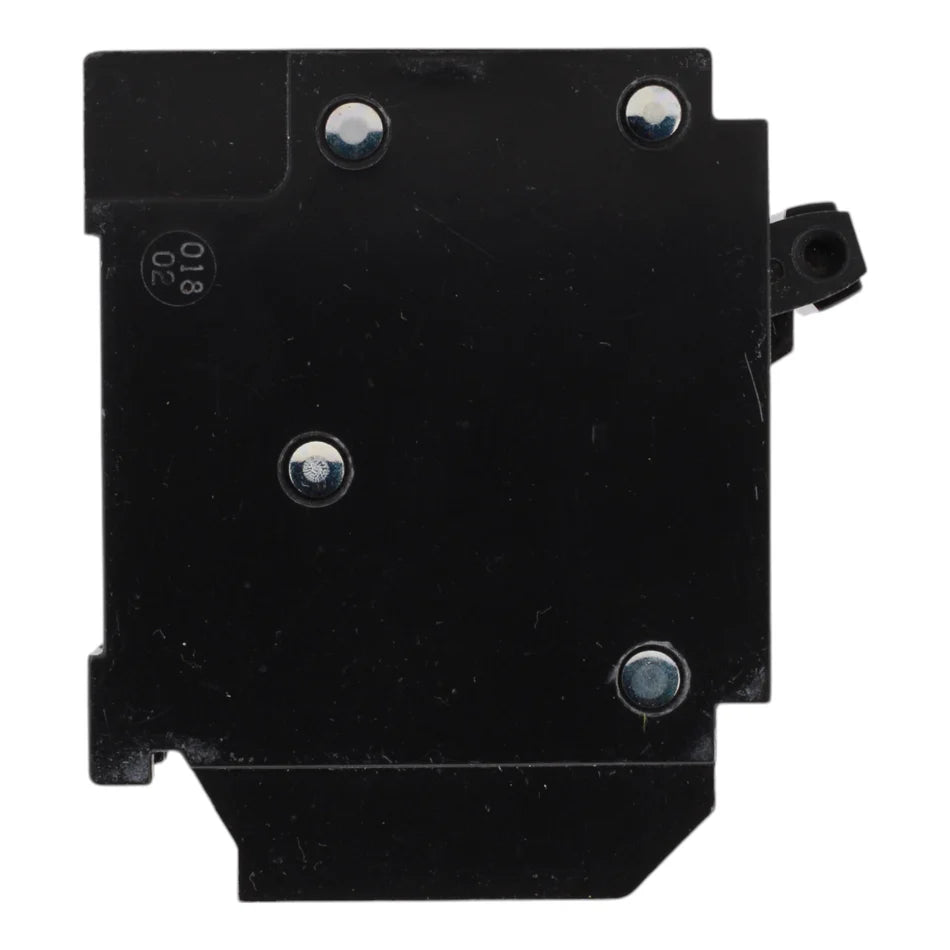

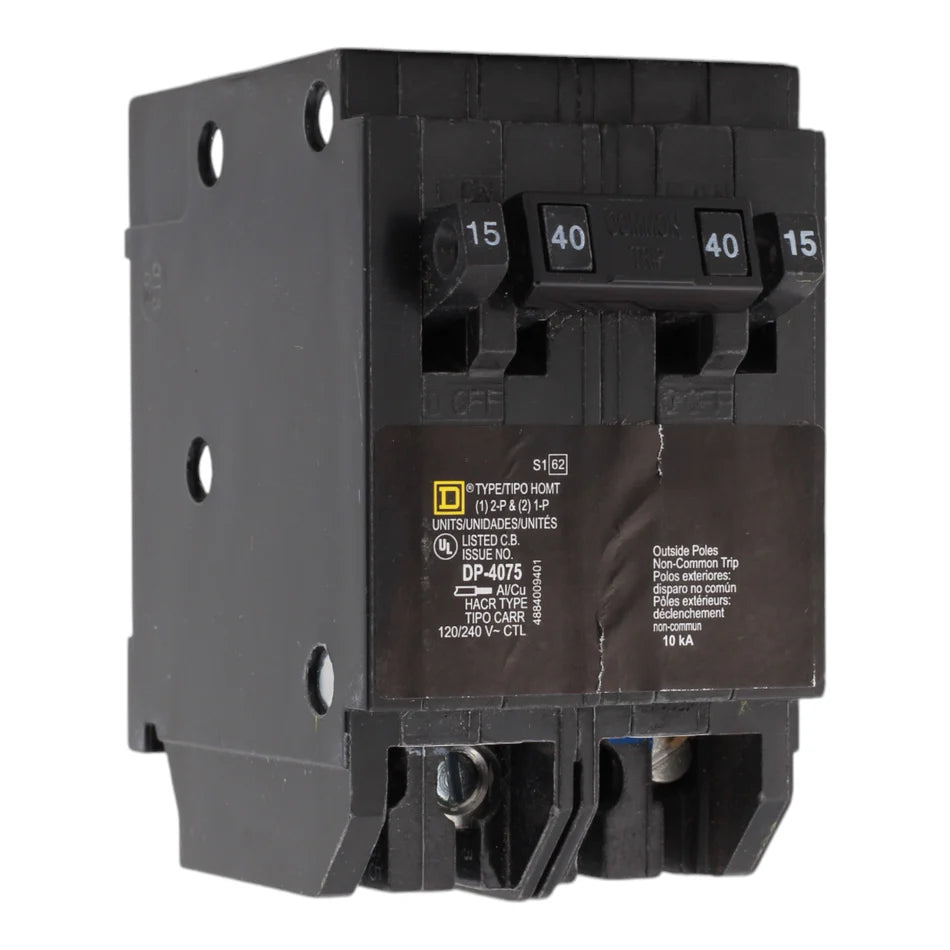

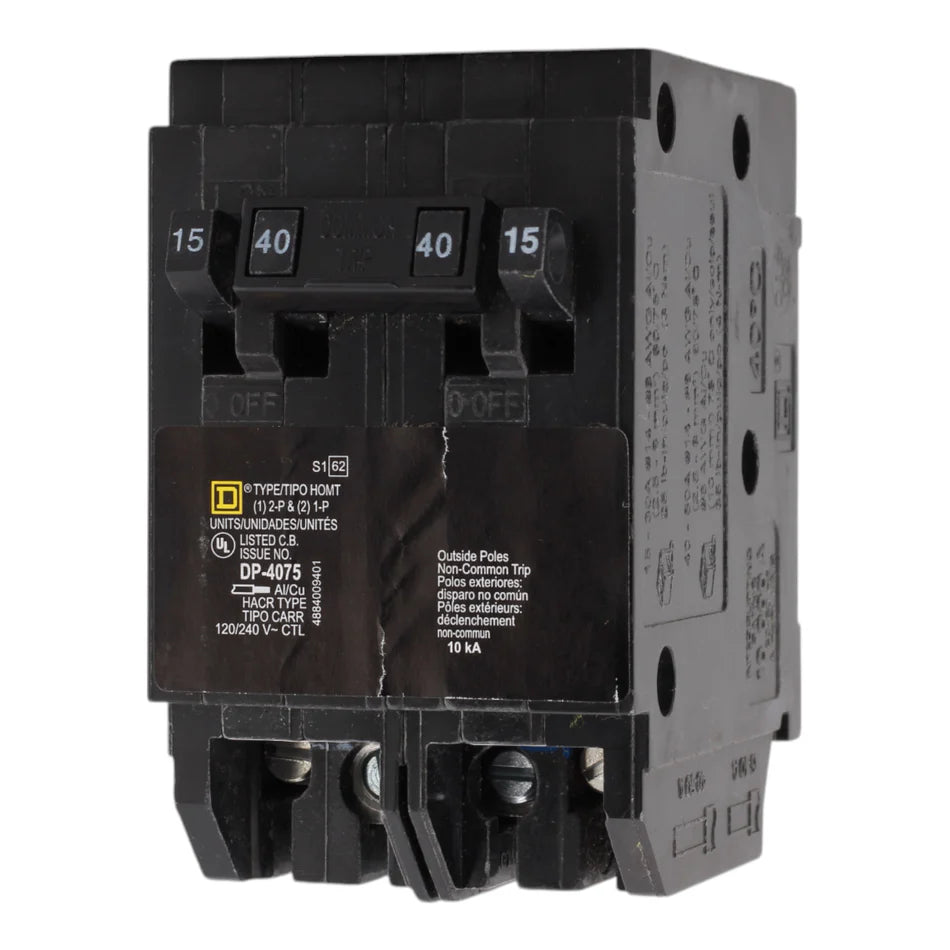

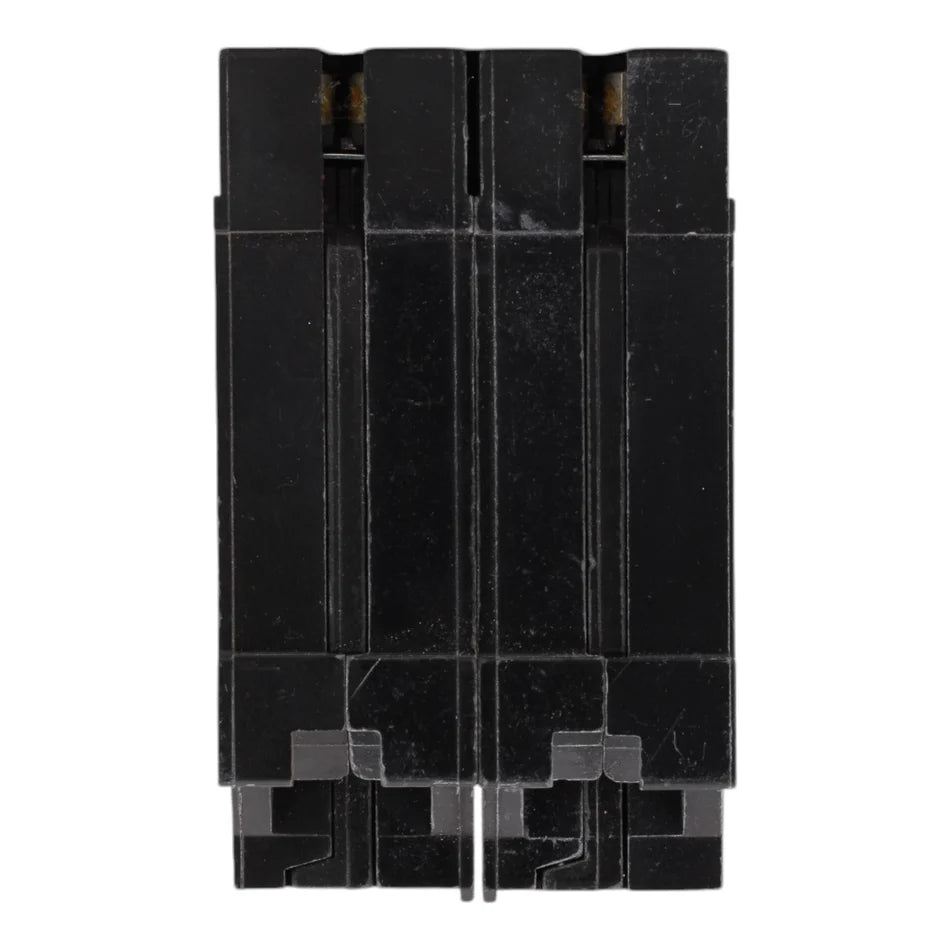

Square D HOMT1515240 15/15/40A 120/240V Quad Tandem Circuit Breaker – Homeline Series

The HOMT1515240 from Square D is a quad tandem thermal magnetic circuit breaker designed for use in Homeline load centers. It combines two 15-amp single-pole breakers and one 40-amp double-pole breaker into a single compact unit, maximizing panel space while providing versatile circuit protection.

Rated for 120/240V applications, this breaker delivers reliable overload and short-circuit protection with a 10 kAIC interrupt rating, making it suitable for most residential installations.

Electrical Configuration

• Amperage Rating:
• Two 1-Pole: 15 Amps each
• One 2-Pole: 40 Amps
• Voltage Rating: 120/240 Volts
• Poles: Two 1-Pole + One 2-Pole (Quad Configuration)
• Interrupt Rating: 10 kAIC
• Circuit Protection: Thermal Magnetic
• Mounting Type: Plug-In

Installation & Wiring

• Wire Size Compatibility:
• AWG 14–8 (Aluminum/Copper)
• AWG 14–6 (Copper)
• AWG 12–6 (Aluminum)
• Tightening Torque: 40.7 lbf·in (4.6 N·m)
• Ambient Operating Temperature: 104°F (40°C)

Physical Specifications

• Dimensions: 3.13 in (H) × 2 in (W) × 2.98 in (D)
• Net Weight: 13.6 oz (0.85 lb)

Compliance & Compatibility

• Certifications: UL Listed, HACR Rated
• Compatibility: Suitable for Square D Homeline Load Centers

Product Data

• • Brand: Square D
  • Manufacturer: Schneider Electric
  • Model Number: HOMT1515240
  • GTIN / UPC: 785901377023
  • Product Type: Quad Tandem Thermal Magnetic Circuit Breaker
  • Series: Homeline
  • Compatibility: Fits Square D Homeline Load Centers
  • Product Lifecycle: Active Product
