Square D HOMT1515250 15/15/50A 120/240V Quad Tandem Circuit Breaker – Homeline – UL
Couldn't load pickup availability
Ask an expert

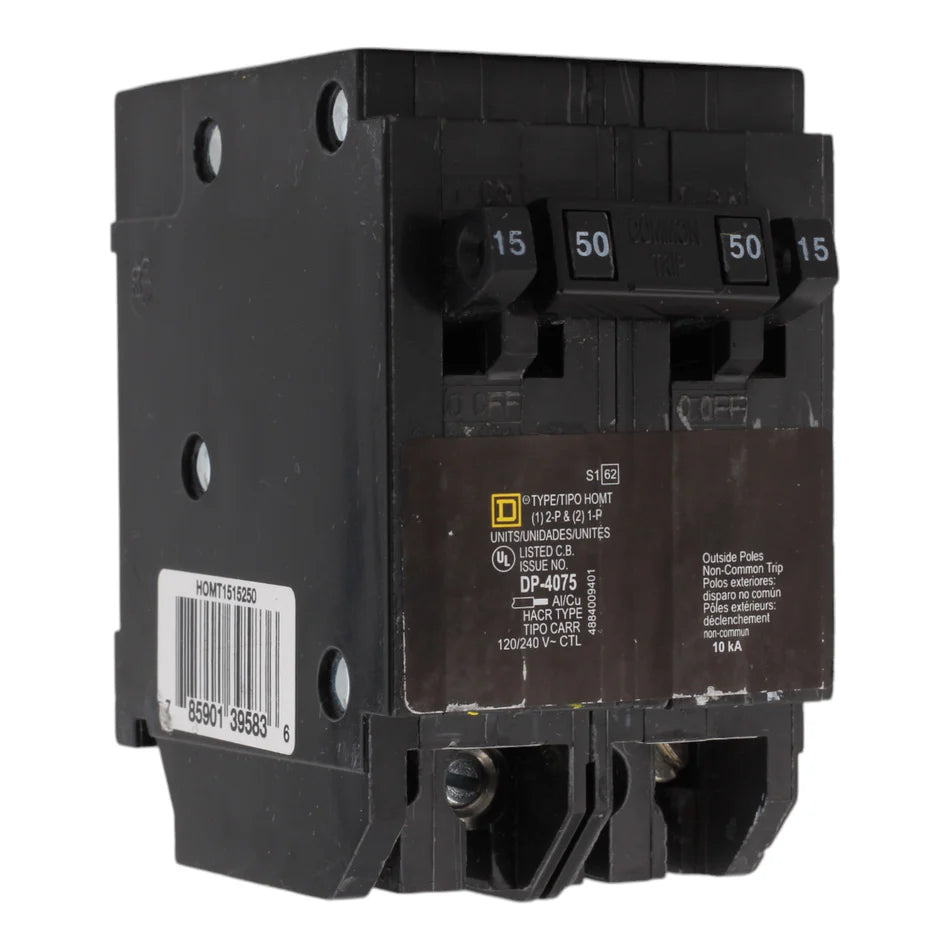

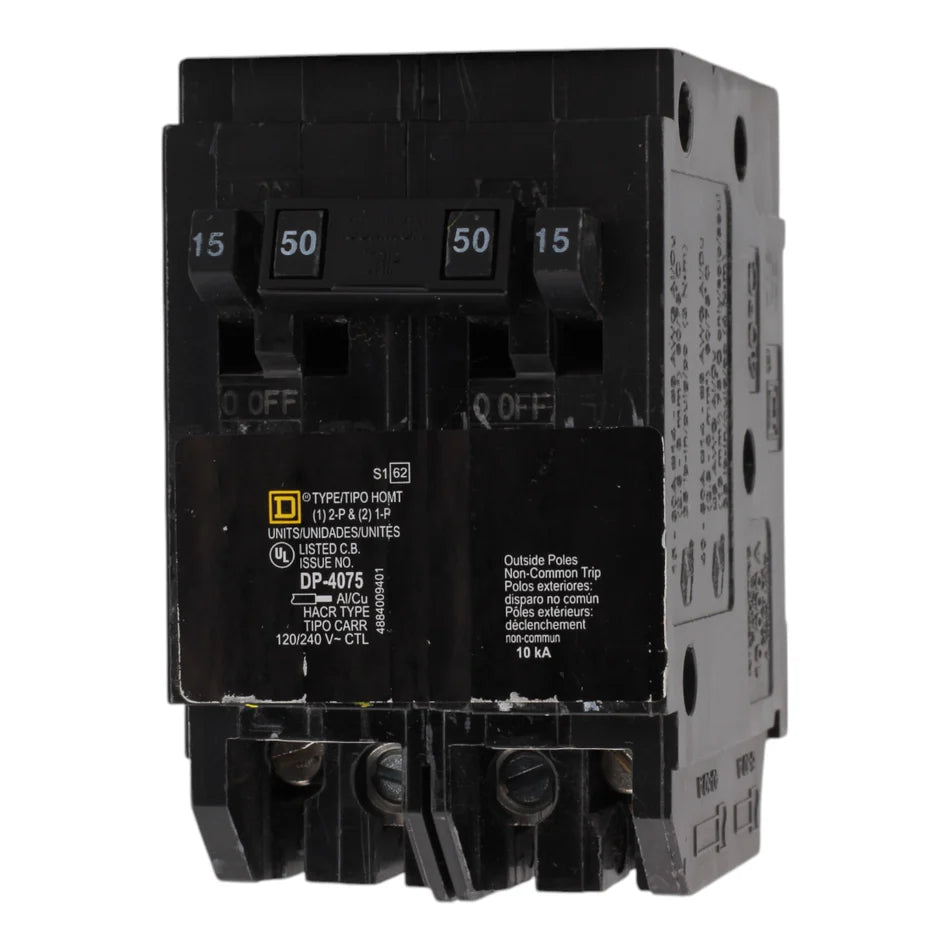

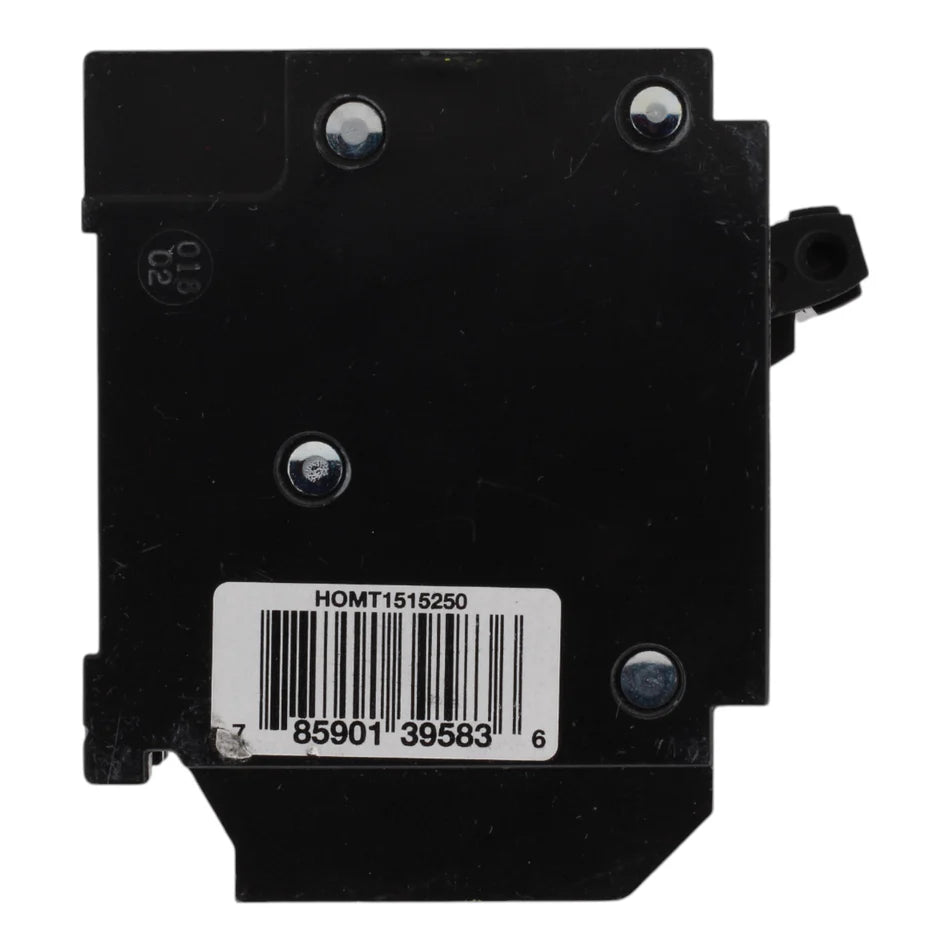

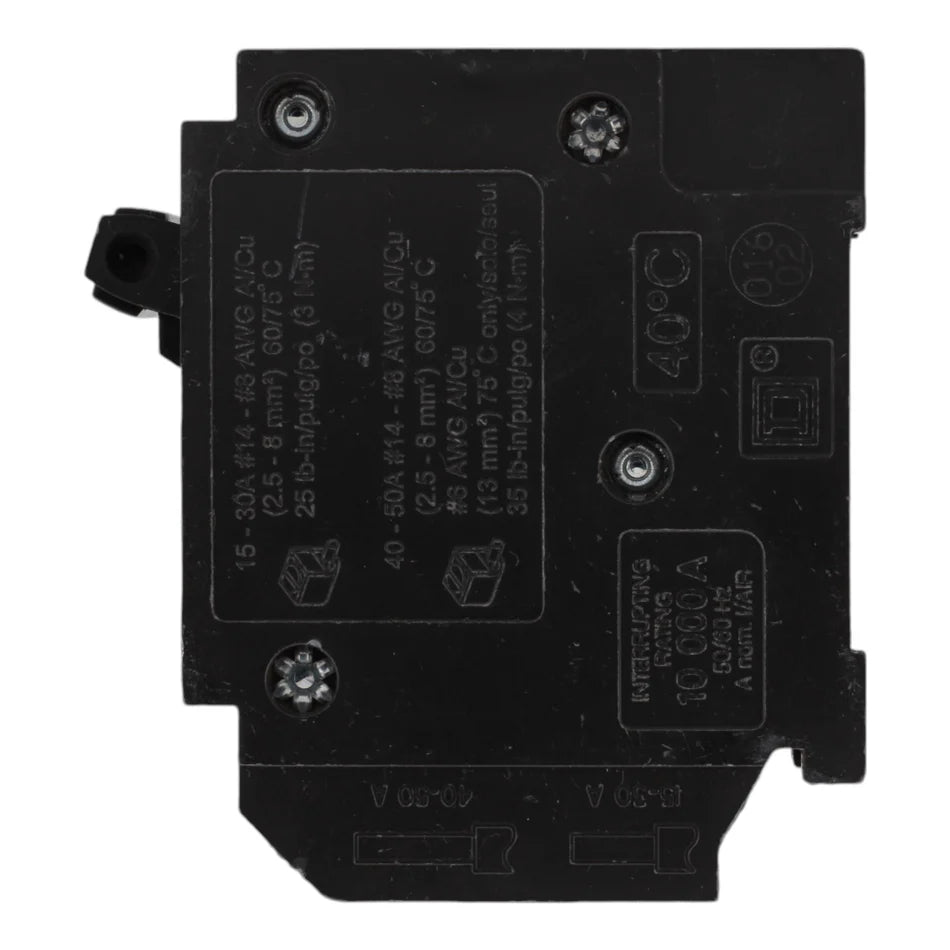

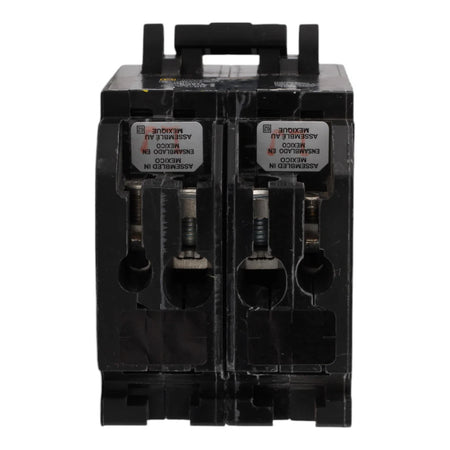

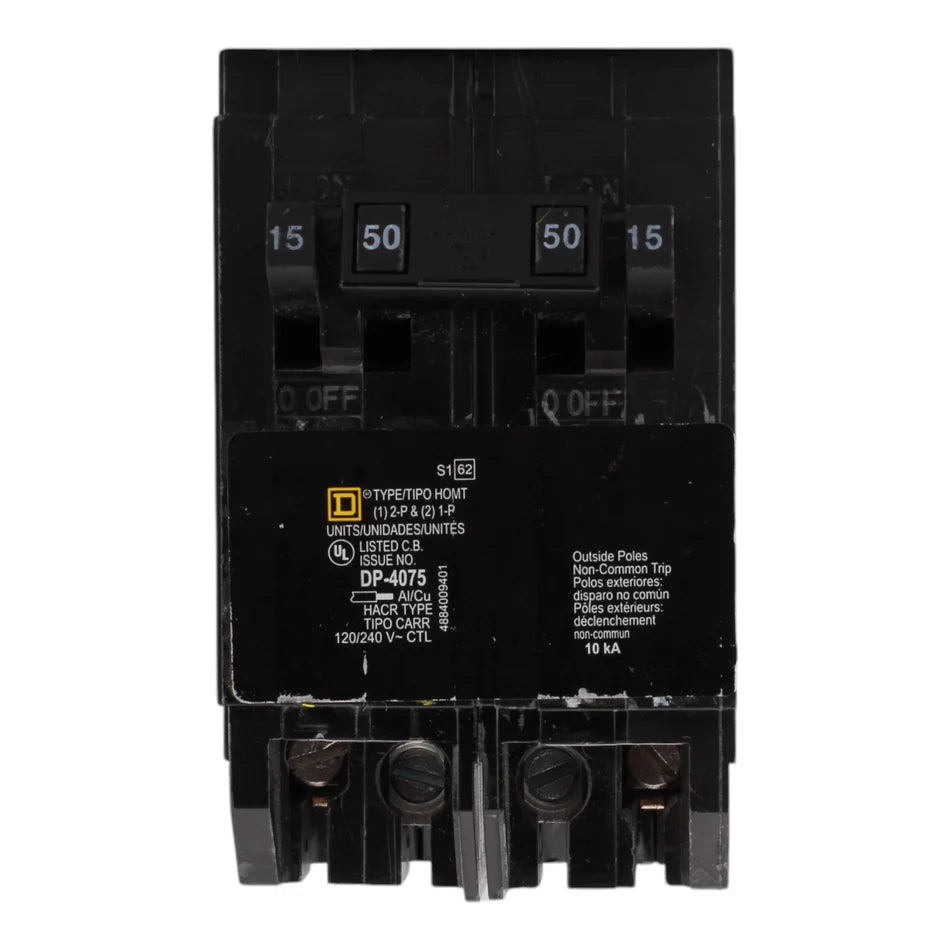

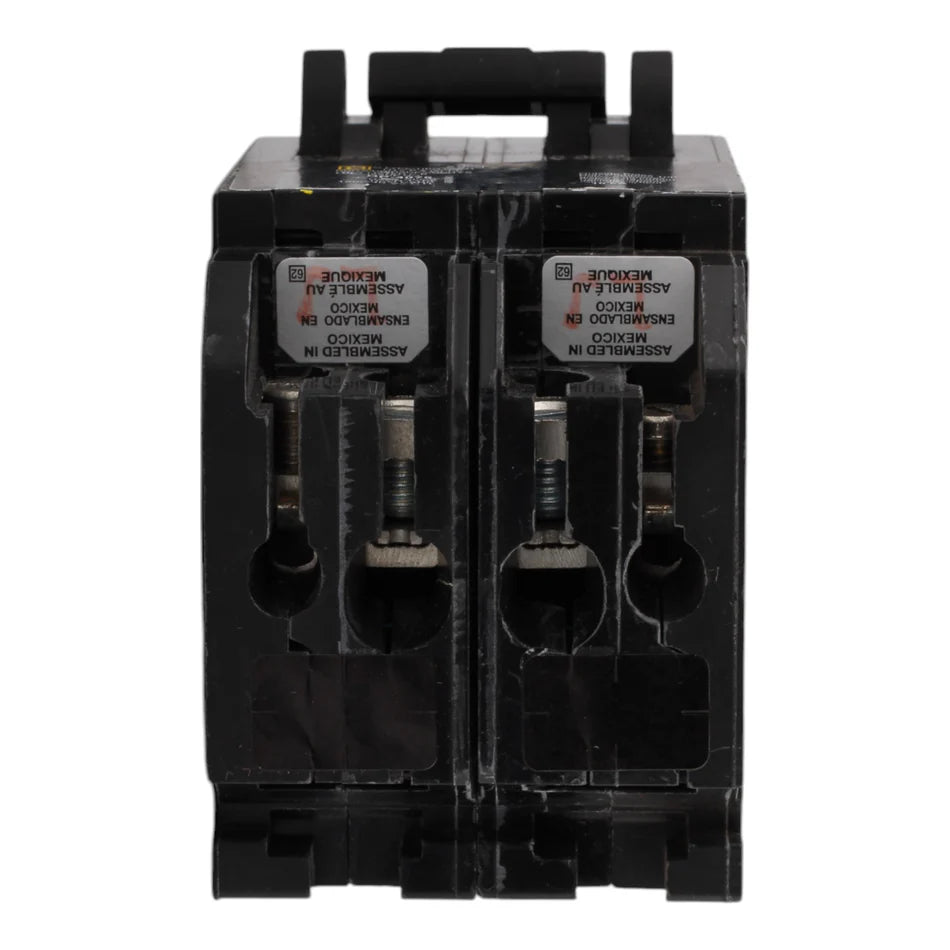

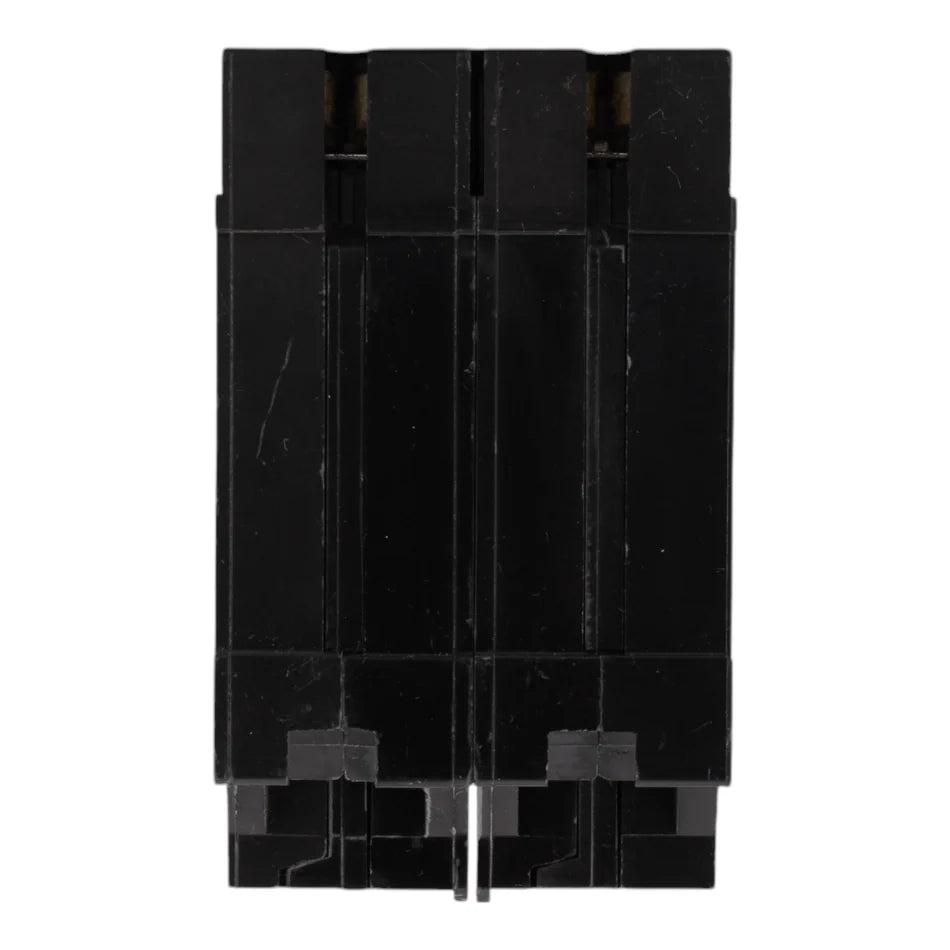

The HOMT1515250 from Square D, manufactured by Schneider Electric, is a quad tandem circuit breaker designed to maximize circuit capacity in Homeline™ load centers without expanding the panel footprint.
This breaker combines two 15-amp single-pole circuits and one 50-amp double-pole circuit in a single plug-in unit, making it ideal for applications where space is limited but higher circuit density is required—such as panel upgrades, remodels, or load balancing projects.
Electrical Ratings
- Amperage Rating: 15 A / 15 A / 50 A
- Voltage Rating: 120/240 Volts AC
- Pole Configuration:
- (2) × 15A Single-Pole (1P)
- (1) × 50A Double-Pole (2P)
- Short-Circuit Rating: 10 kA
Breaker Details
- Breaker Type: Quad Tandem Circuit Breaker
- Connection Type: Plug-In
- Panel Compatibility: Square D Homeline Load Centers
- Application: Space-saving multi-circuit protection
Wiring Information
- Wire Size (2-Pole / 50A): 14 AWG to 6 AWG Copper
- Wire Size (1-Pole / 15A): 14 AWG to 8 AWG Copper or Aluminum
Physical Specifications
- Dimensions (H × W × D): 3.13 × 2.0 × 2.98 inches
- Weight: 0.85 lbs
Product Data
-
- Brand: Square D
- Manufacturer: Schneider Electric
- Model Number: HOMT1515250
- UPC: 785901377030
- Type Circuit Breakers
- Vendor Square D
- Brand Square D
