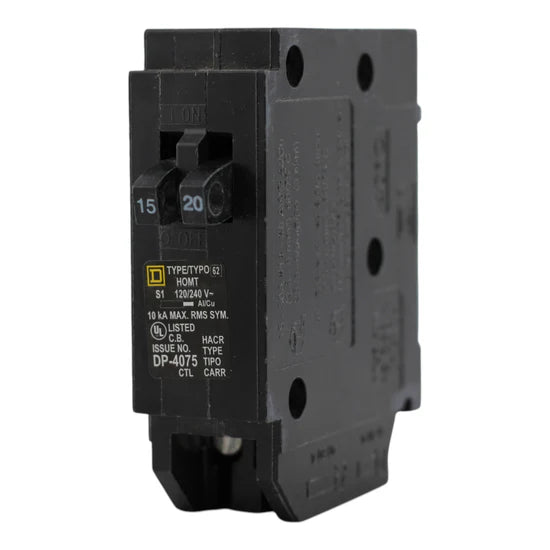

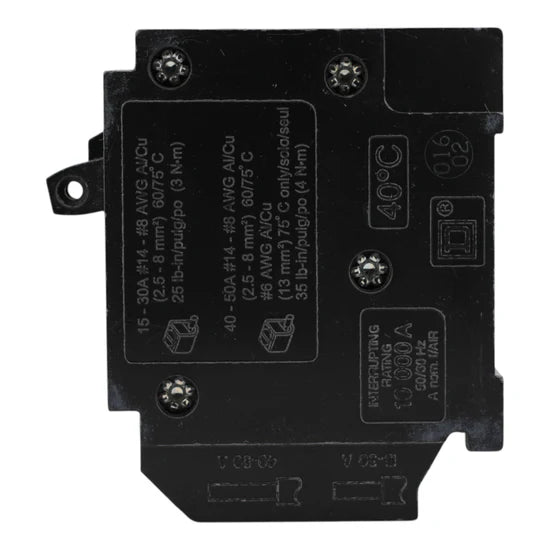

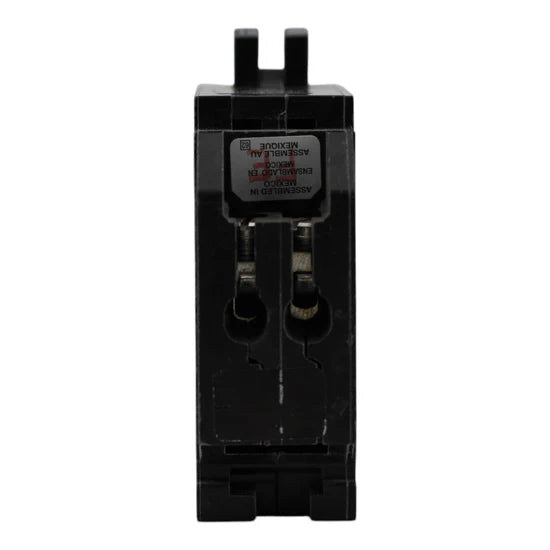

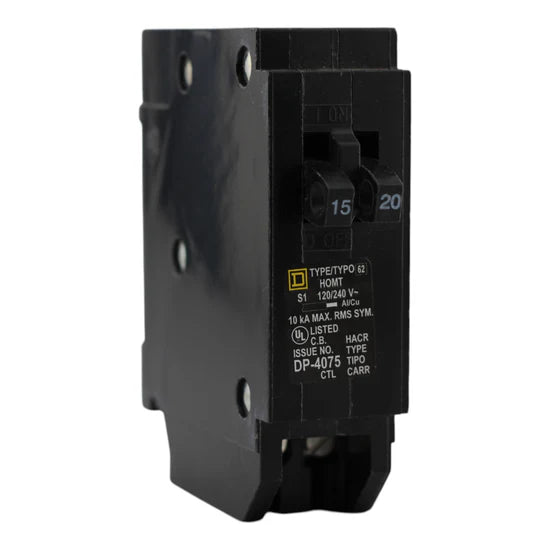

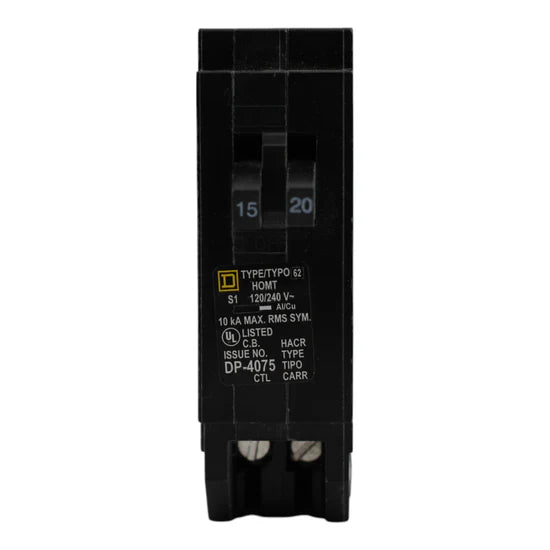

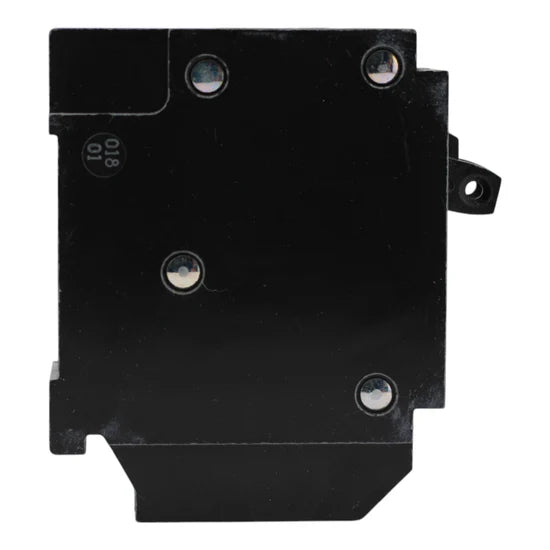

The Square D HOMT1520 Homeline tandem circuit breaker combines a 15A and a 20A single-pole breaker in one panel space, providing efficient circuit protection for residential applications. With a 10 kA interrupt rating and thermal-magnetic trip design, it delivers reliable overload and short-circuit protection. HACR rated and UL listed, this plug-in breaker ensures safe operation with individual switching and tripping for each pole.
Voltage and Rating
- Current Rating: 15A/20A (One 15A and one 20A pole)
- Voltage Rating: 120/240V AC
- Interrupting Capacity: 10 kA
- Poles: Two 1-Pole breakers
Key Specifications
- Breaker Type: Homeline Tandem Circuit Breaker
- Trip Type: Thermal Magnetic
- Mounting Type: Plug-In
- Number of Panel Spaces: 1
- Application: Residential
- Ratings: HACR (Heating, Air Conditioning, Refrigeration)
- Features: Individual switching and tripping action for each pole
- Electrical Connection: Box lugs
- Wire Size: AWG 12 to AWG 8 (aluminum)
- Tightening Torque: 35.4 lbf.in (4.0 N·m)
- Ambient Operating Temperature: 104°F (40°C)
Certifications
-
UL Listed
Product Data
-
- Manufacturer: Schneider Electric
- Brand: Square D
- Model Number: HOMT1520
- UPC: 785901065418
- Dimensions (H × W × D): 3.13 × 1 × 2.98 in
- Weight: 6.88 oz (0.43 lb)
