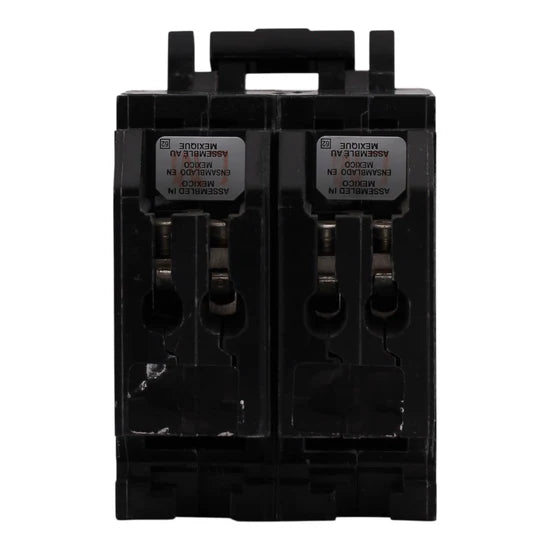

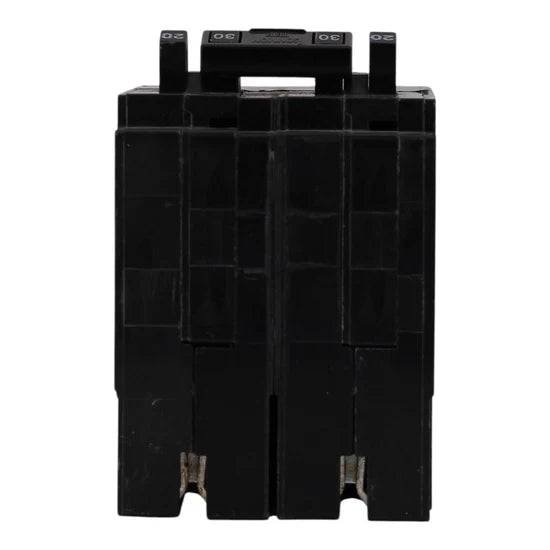

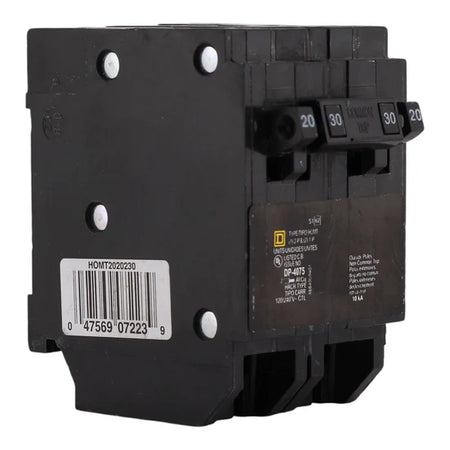

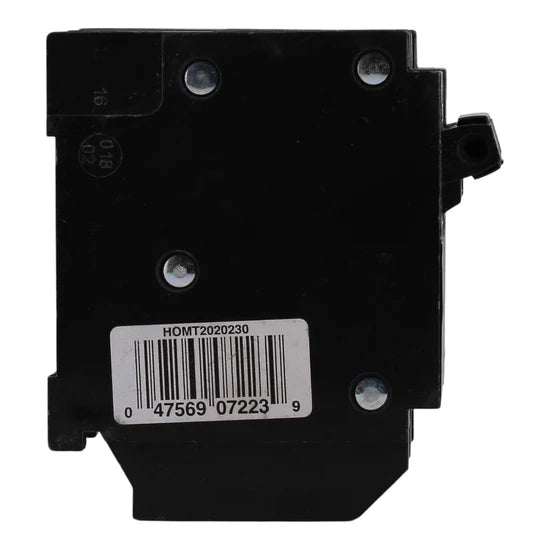

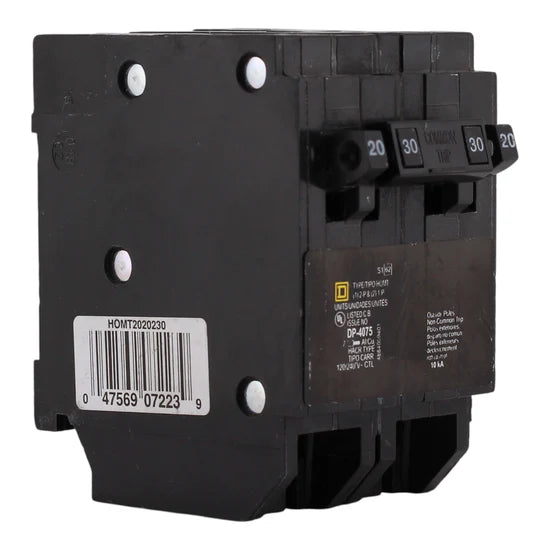

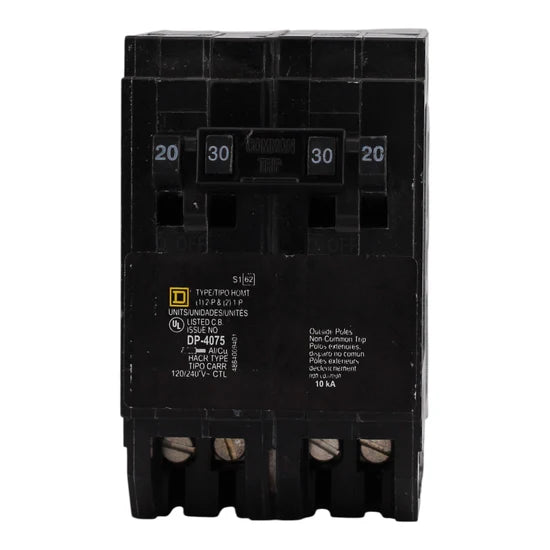

The Square D HOMT2020230 quad tandem circuit breaker provides reliable multi-circuit protection with two 1-pole 20A breakers and one 2-pole 30A breaker in a single 4-pole unit. Designed for Homeline loadcenters, this compact breaker occupies only two pole spaces while delivering dependable thermal-magnetic protection. Its plug-in configuration allows for quick installation, making it ideal for residential and light commercial electrical panels.
Voltage and Rating
- Amperage Rating: 20A (1-Pole), 30A (2-Pole)
- Voltage Rating: 120/240 Volts AC
- Interrupt Rating: 10 kAIC
Key Specifications
- Breaker Type: Quad Tandem Thermal Magnetic Circuit Breaker
- Configuration: 2 × 1-Pole at 20A, 1 × 2-Pole at 30A
- Number of Poles: 4-Pole (occupies 2 pole spaces)
- Mounting Mode: Plug-In
- Wire Size: #14–8 AWG Copper/Aluminum
- Compatibility: Square D Homeline loadcenters
Technical Specifications
- Circuit Protection: Thermal magnetic
- Protection Function: Overload and short-circuit protection
- Certifications: UL Listed, HACR Rated
Product Data
-
- Brand: Square D
- Manufacturer: Schneider Electric
- Model Number: HOMT2020230
- UPC: 785901101031
- Dimensions (H × W × D): 3.13 × 2.00 × 2.98 inches
- Weight: 0.84 lb
