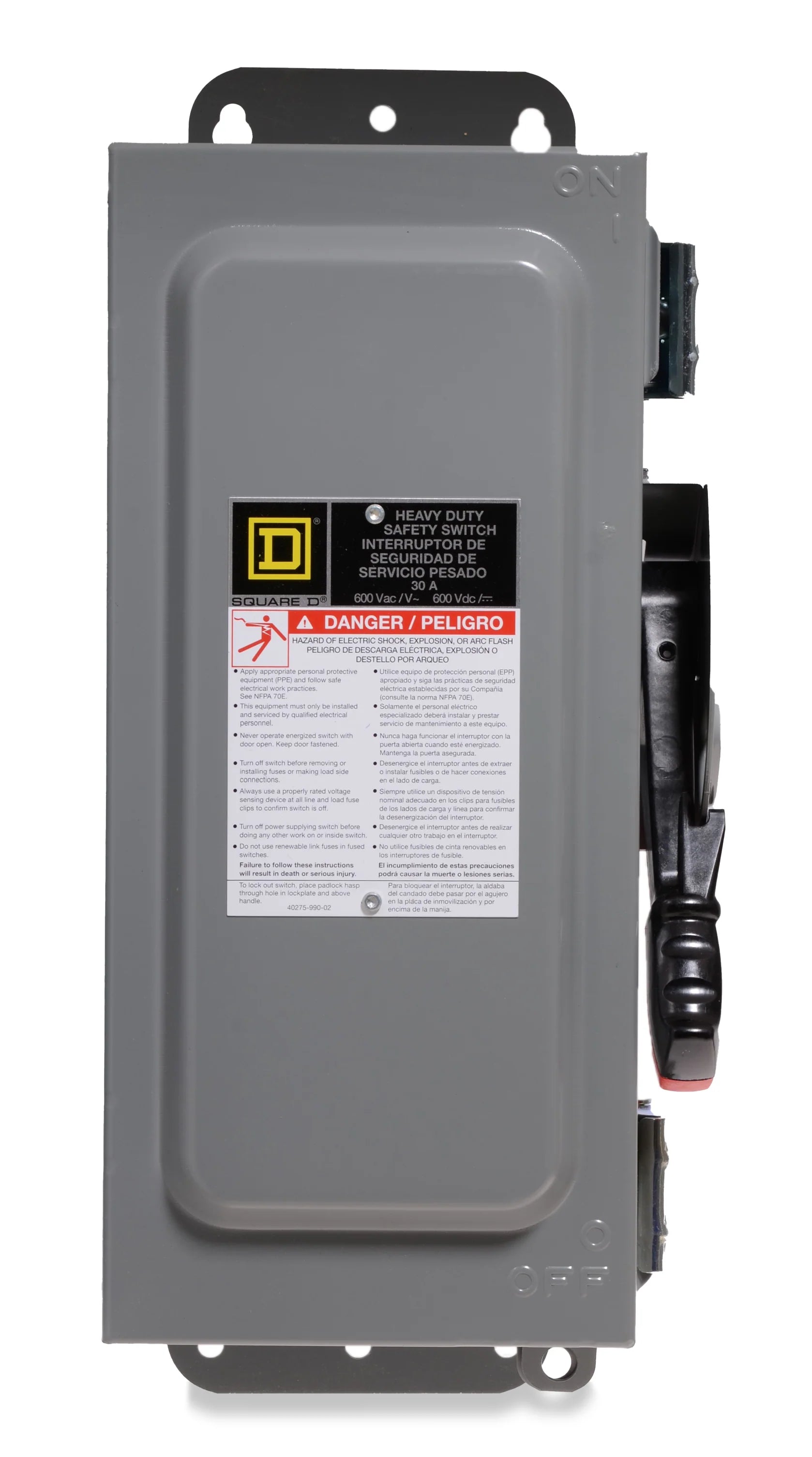

Square D HU361AWKEI Safety Switch 30A 3-Pole Non-Fusible Heavy Duty Safety Switch – Surface Mount – 600VAC/VDC

The Schneider Electric Square D HU361AWKEI is a heavy-duty non-fusible safety switch designed for safe disconnecting of electrical equipment in industrial and commercial applications. It provides reliable manual switching and isolation for 3-phase systems.

Electrical Ratings

• Current Rating: 30 Amps
• Voltage Rating: 600 VAC / VDC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Duty Rating: Heavy Duty
• Fusibility: Non-fusible (disconnect switch only)

Switch & Protection Features

• Switch Type: Safety Disconnect Switch
• Action: Single Throw
• Contact Configuration: 3PST (3 Pole Single Throw)
• Mechanism: Mechanical interlock system
• Mercury Free: Yes
• PVC Free: Yes
• Application: Equipment isolation and safety disconnect

Mounting & Enclosure

• Mounting Type: Surface Mount
• Enclosure Material: Galvanized steel
• NEMA Rating: 3R / 12
• Configuration: Single switch unit
• Number of Wires: 3 wire system

Termination & Wiring

• Terminal Type: Lugs
• Wire Range:
  • AWG 14 to 6 (Copper/Aluminum)
  • AWG 12 to 6 supported range
• Connection Type: Lug terminals

Standards & Certifications

• UL Listed
• RoHS compliant
• REACH compliant
• Designed for industrial safety isolation applications

Additional Features

• Heavy-duty industrial disconnect switch
• Surface-mounted enclosure for easy installation
• Reliable mechanical interlock design
• Suitable for motor and equipment isolation
• Durable galvanized steel enclosure for harsh environments
• Manual ON/OFF operation for safety control

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Series: HU Series (Safety Switches)
• Model: HU361AWKEI
