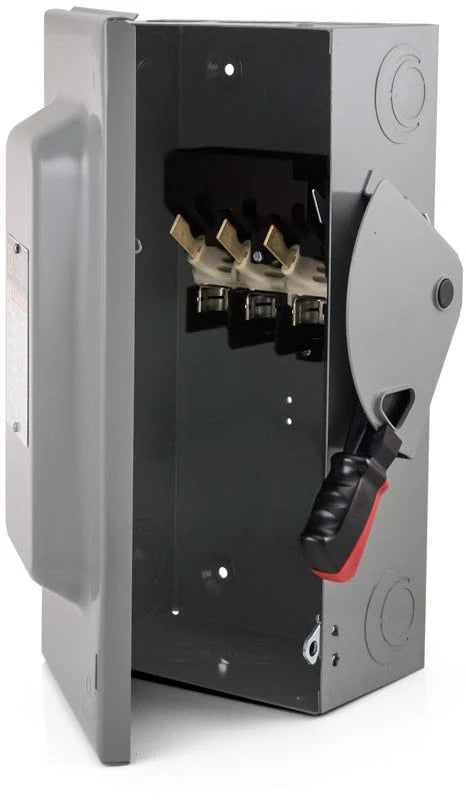

Square D HU362 Safety Switch 60A 3-Pole Non-Fusible Heavy Duty Safety Switch – Surface Mount – 600VAC/VDC

The Schneider Electric Square D HU362 is a heavy-duty non-fusible safety switch designed for safe electrical isolation in industrial and commercial power systems. It provides reliable disconnect capability for 3-phase equipment and motor loads.

Electrical Ratings

• Current Rating: 60 Amps
• Voltage Rating: 600 VAC / VDC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Duty Rating: Heavy Duty
• Fusibility: Non-fusible (disconnect switch only)

Interrupting & Protection Features

• Interrupting Rating: 200 kAIC at 600V
• Switch Type: Safety Disconnect Switch
• Action: Single Throw
• Application: Equipment isolation and motor disconnect

Mounting & Enclosure

• Mounting Type: Surface Mount
• Enclosure Type: NEMA 1
• Frame Type: HU
• Configuration: Single unit
• Durability: Industrial-grade enclosure

Termination & Wiring

• Terminal Type: Lugs
• Wire Range:
  • Copper: AWG 14 to 3
  • Aluminum: AWG 12 to 3
• Number of Wires: 3 wire system
• Connection Style: Lug terminals

Physical Dimensions

• Height: 21.25 in
• Width: 10.5 in
• Length: 6.38 in

Standards & Certifications

• UL Listed
• RoHS compliant
• Designed for industrial safety and compliance applications

Additional Features

• Heavy-duty industrial safety disconnect switch
• High interrupting capacity (200 kAIC)
• Surface-mounted enclosure for easy installation
• Reliable single-throw switching mechanism
• Suitable for motors and industrial equipment isolation
• Rugged construction for demanding environments

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Series: HU Series Safety Switch
• Model: HU362
