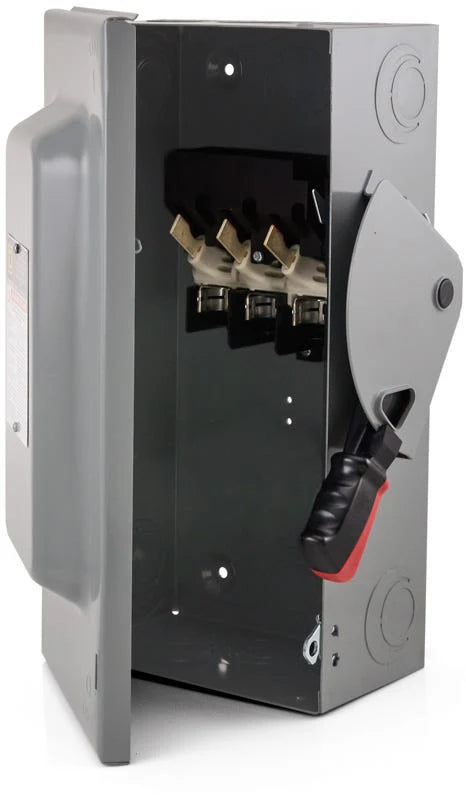

Square D HU362N Safety Switch 60A 3-Pole Non-Fusible Heavy Duty Safety Switch – Surface Mount – 600VAC/600VDC

The Schneider Electric Square D HU362N is a heavy-duty non-fusible safety disconnect switch designed for industrial and commercial power isolation. It provides safe manual disconnection for 3-phase equipment and supports both AC and DC systems up to 600V.

Electrical Ratings

• Current Rating: 60 Amps
• Voltage Rating: 600 VAC / 600 VDC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Duty Rating: Heavy Duty
• Fusibility: Non-fusible (disconnect only)

Switch & Protection Features

• Switch Type: Safety Disconnect Switch
• Action: Single Throw
• Frame Type: H Frame
• Application: Equipment isolation and safety switching
• Operating Function: Manual ON/OFF switching

Mounting & Enclosure

• Mounting Type: Surface Mount
• Enclosure Material: Steel
• NEMA Rating: 1
• Configuration: Single unit assembly
• Durability: Industrial-grade construction

Termination & Wiring

• Terminal Type: Lugs (not explicitly stated but standard for series)
• Wire Range:
  • Copper: AWG 14 to 3
  • Aluminum: AWG 12 to 3
• Number of Wires: 4 wire system
• Connection Style: Lug terminals

Standards & Certifications

• UL Listed
• RoHS compliant
• Designed for industrial safety disconnect applications

Additional Features

• Supports both AC and DC applications (600V rating)
• Heavy-duty industrial disconnect design
• Compact H-frame construction
• Surface-mounted steel enclosure for durability
• Reliable manual isolation for machinery and electrical panels
• Suitable for harsh industrial environments

Manufacturer Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Series: HU Series Safety Switches
• Model: HU362N
