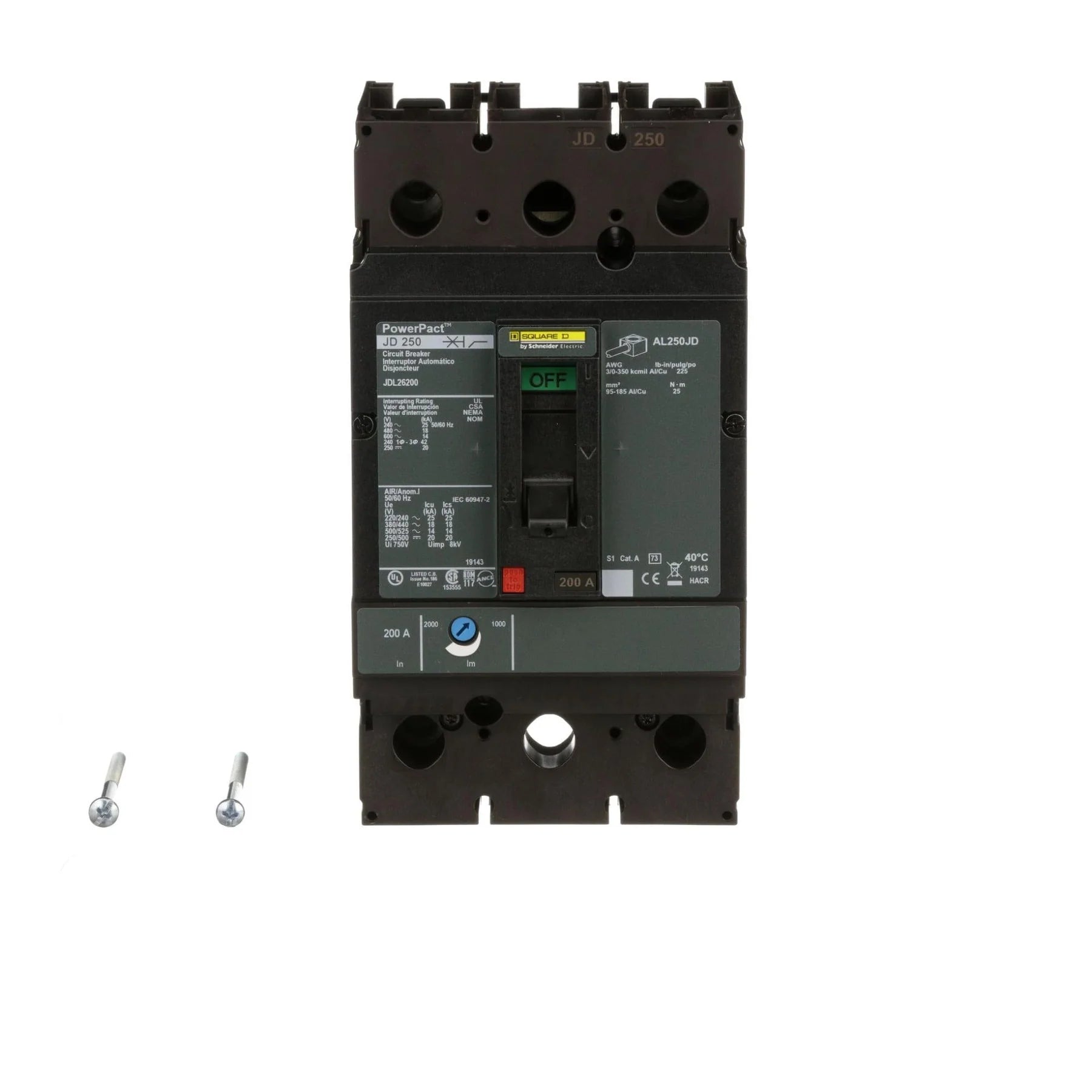

Square D JDL26200 Molded Case Circuit Breaker – 2 Pole – 200A – 600V – Feed-Thru – Thermal Magnetic – LI Protection

The Square D JDL26200 PowerPact J-Frame molded case circuit breaker is designed for reliable protection of electrical distribution systems against overloads and short circuits. Featuring a thermal-magnetic trip unit, it provides Long-Time and Instantaneous (LI) protection for dependable fault interruption. The feed-thru construction with line and load side lugs allows flexible installation in panelboards and switchboards. Rated at 200A and 600V, this breaker delivers robust performance with an interrupting capacity of 18kA at 480VAC and is suitable for industrial and commercial applications.

Voltage and Current Ratings

• Current Rating: 200 Amps
• Voltage Rating: 600 Volts AC
• Phase: 1 Phase

Interrupting Rating

• 18kA at 480VAC
• Standard Interrupting Capacity

Trip Unit and Protection

• Protection Type: Thermal Magnetic
• Trip Functions:
  • Long-Time (L)
  • Instantaneous (I)
• Non-Interchangeable Trip Unit

Configuration and Mounting

• Poles: 2 Pole
• Frame Type: J Frame
• Connection Type: Feed-Thru
• Mounting Style: Unit Mount / Panelboard Compatible
• Line and Load Side Lugs
• Phase Connection: CA Phase Connection

Physical Specifications

• Dimensions (H × W × D): 7.52 × 4.09 × 3.39 Inches
• Weight: 5.29 lbs

Standards and Certifications

• UL Listed
• CSA Approved
• CE Marked
• IEC Compliant
• NOM Compliant

Features

• PowerPact J-Frame molded case circuit breaker
• Thermal-magnetic protection for overload and short-circuit safety
• Dual-break contact design reduces peak current during faults
• Push-to-trip button for manual testing and operation
• Feed-thru design with line and load side lug terminals
• Designed for panelboard and switchboard installations
• Industrial-grade reliability and durability
• Compatible with Schneider Electric PowerPact J-Frame systems
• Suitable for commercial and industrial power distribution applications
