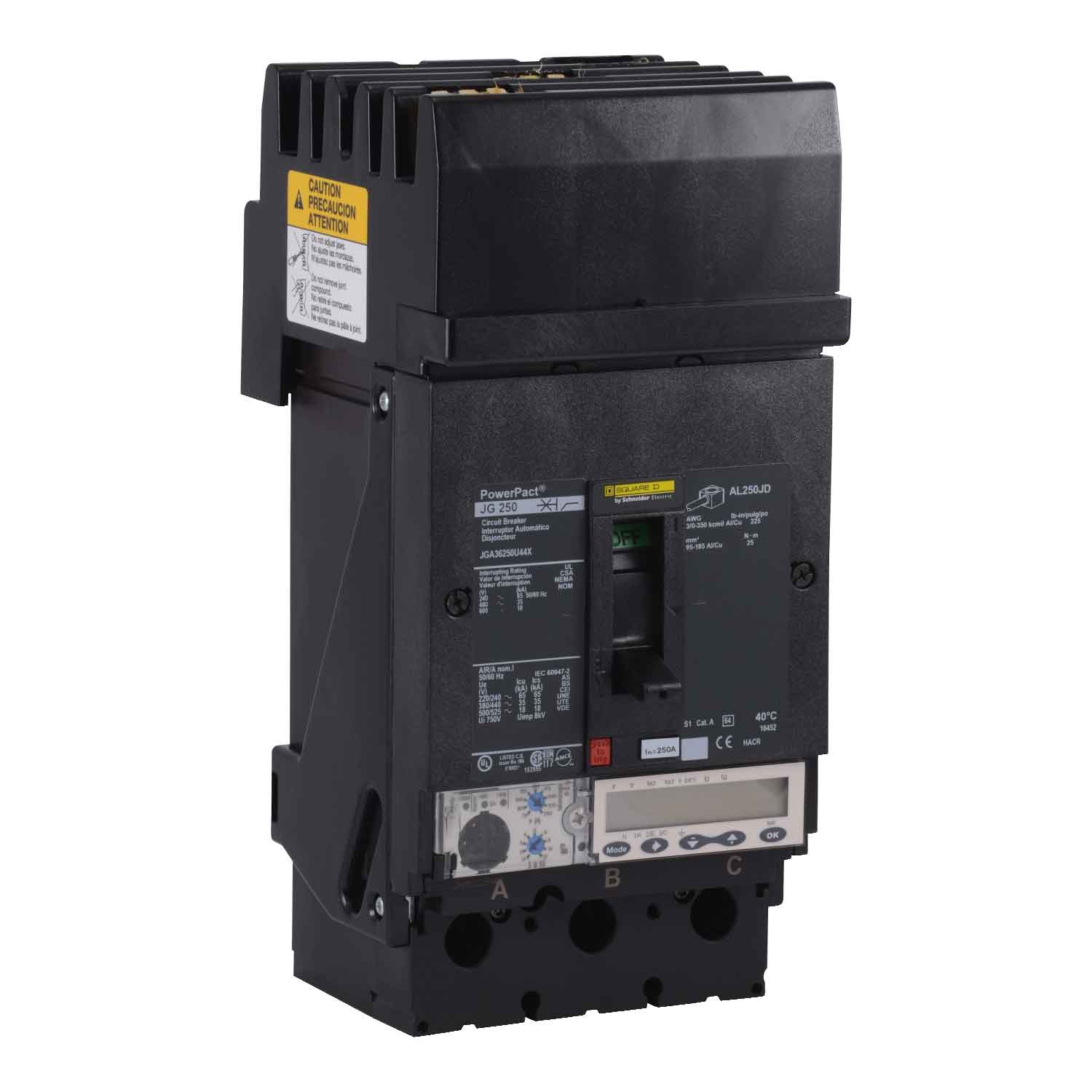

Square D JGA36250U44X Molded Case Circuit Breaker – 3 Pole – 250A – 600V – I-Line Plug-In – Solid State – LSIG Protection

In stock
SKU: JGA36250U44X GTIN/UPC: 785901952398
$3,749.04
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D JGA36250U44X PowerPact molded case circuit breaker is engineered for advanced protection of commercial and industrial power distribution systems. Featuring a MicroLogic 6.2A electronic trip unit, this breaker provides comprehensive Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG) protection to help safeguard electrical equipment and critical power infrastructure. The I-Line style plug-in design enables quick installation and removal in compatible I-Line panelboards and switchboards. Rated at 250A and 600V, the JGA36250U44X delivers a high interrupting capacity of 35kA at 480VAC and is suitable for reverse connection applications. Its solid-state trip technology ensures precise protection and enhanced system coordination.

Voltage and Current Ratings

  • Current Rating: 250 Amps
  • Voltage Rating: 600 Volts AC
  • Phase: 3 Phase

Interrupting Rating

  • 35kA at 480VAC
  • High Interrupting Capacity

Trip Unit and Protection

  • Protection Type:
    • Overload Protection
    • Short-Circuit Protection
    • Ground Fault Protection
  • Trip Unit Technology: Solid State Electronic, MicroLogic 6.2A Ammeter
  • Trip Functions:
    • Long-Time (L)
    • Short-Time (S)
    • Instantaneous (I)
    • Ground Fault (G)
  • Non-Interchangeable Trip Unit

Configuration and Mounting

  • Poles: 3 Pole
  • Phase Connection: ABC
  • Connection Type: I-Line Style Plug-In
  • Suitable for Reverse Connection Applications

Physical Specifications

  • Weight: 5.29 lbs

Electrical Connections

  • Line Connection: I-Line Style Plug-In
  • Load Connection: Mechanical Lugs

Standards and Certifications

  • UL Listed
  • CSA Approved

Features

  • PowerPact molded case circuit breaker
  • MicroLogic 6.2A electronic ammeter trip unit
  • Solid-state protection technology
  • Long-Time, Short-Time, Instantaneous, and Ground Fault protection
  • High interrupting capacity design
  • I-Line plug-in construction for quick installation
  • Suitable for reverse connection applications
  • Non-interchangeable electronic trip unit
  • Provides advanced protection and selective coordination capabilities
  • Designed for commercial and industrial power distribution systems
  • Manufactured by Schneider Electric / Square D for long-term reliability and performance
  • Type Circuit Breakers
  • Vendor Square D
  • Brand Square D
