Square D

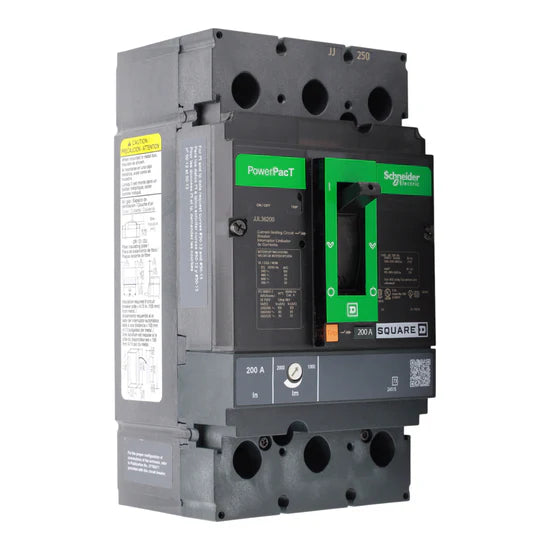

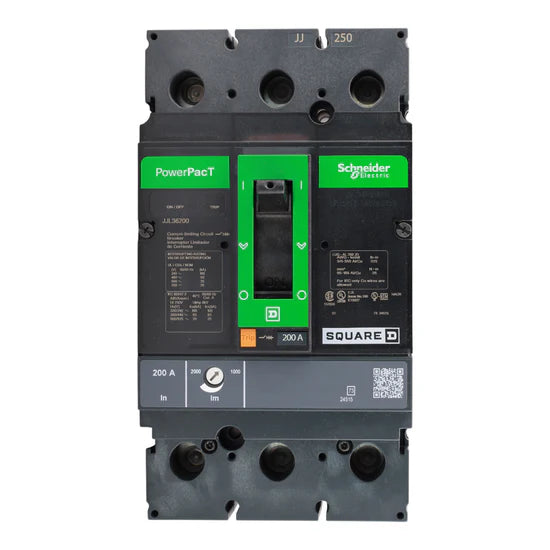

Square D JJL36200 200A 3-Pole Thermal-Magnetic Circuit Breaker – Unit Mount Lug – 600V

In stock
SKU: JJL36200 GTIN/UPC: 785901461937
$1,897.37

Select product select item condition:

SELECT ITEM CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
10 day returns

Ask an expert

Email 866-972-6370

The Square D JJL36200 PowerPacT J-Frame circuit breaker delivers reliable 200 Amp, 3-pole thermal-magnetic protection for 600V electrical systems. Designed for use in PowerPacT J-Frame compatible panels, it provides robust overload and short-circuit protection with a 25 kA interrupting capacity. Featuring durable line and load lugs and unit-mount construction, this breaker is well suited for demanding industrial and commercial applications requiring dependable circuit protection.

Electrical Ratings:

  • Amperage: 200 Amps
  • Voltage: 600V AC
  • Interrupt Rating: 25 kAIC at 600V AC

Key Specifications:

  • Breaker Type: Thermal-Magnetic
  • Poles: 3-Pole
  • Product Range: PowerPacT J-Frame
  • Mounting Mode: Unit Mount Lug
  • Terminal Type: Lugs (Line and Load)
  • Application: Industrial and commercial circuit protection

Technical Specifications:

  • Wire Size: AWG 3/0 – 350 kcmil (Cu/Al)
  • Tightening Torque: 221.3 lb-in
  • Certifications: UL Listed, CSA, NOM, IEC 60947-2, CE, HACR Rated

Product Data:

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Model Number: JJL36200
  • UPC: 785901461937
  • Dimensions: 7.5" H × 4.09" W × 3.4" D
  • Weight: 5.3 lbs
