Square D - KA36100 - 100 Amp 600VAC 3 Pole I-Line Plug-On Molded Case Circuit Breaker

Description

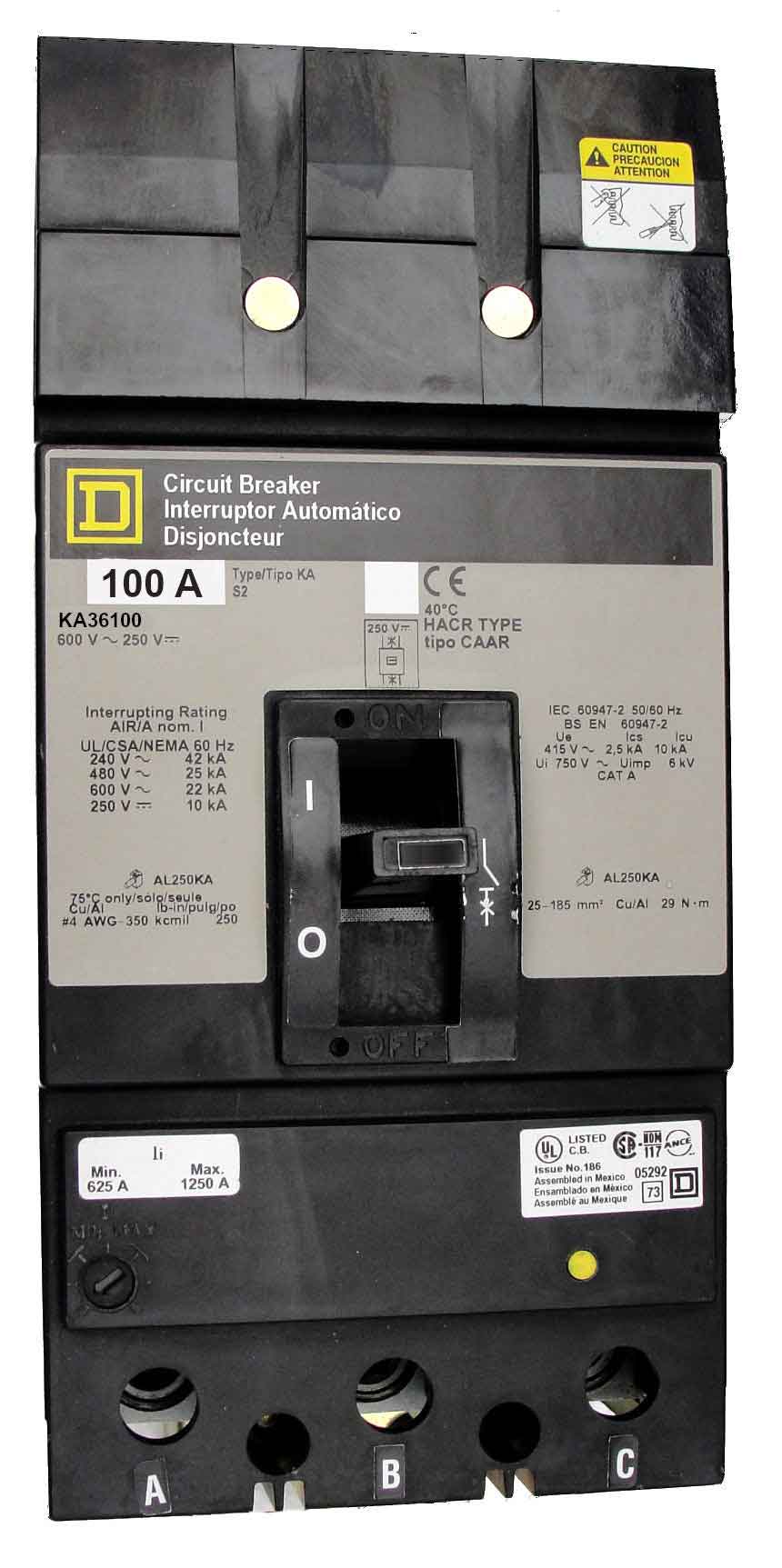

Square D KA36100

The Square D KA36100 is a 3‑pole, 100 A molded case circuit breaker designed for dependable overcurrent protection in commercial and industrial electrical systems. This breaker is rated for up to 600 VAC operation and features thermal‑magnetic trip protection with long‑time and instantaneous (LI) functions for reliable overload and short‑circuit response. The KA36100 uses I‑Line plug‑on mounting for secure installation in panelboards and switchboards. It offers a 25 kAIC interrupting capacity at 480 VAC and a 22 kAIC interrupting capacity at 600 VAC, providing high fault current handling across its rated voltage range. This breaker is UL, CSA, and CE certified for safety and performance in 3‑phase applications.

Key Specifications

• Manufacturer: Square D

• Part Number: KA36100

• Amperage: 100 A

• Voltage Rating: 600 VAC

• Poles: 3

• Mounting Type: I‑Line Style Plug‑On

• Interrupt Rating: 25 kAIC @ 480 VAC; 22 kAIC @ 600 VAC

• Trip Unit: Thermal Magnetic with LI (Long‑Time and Instantaneous)

• Frame Type: KA

• Phase: 3

• Certifications: UL Listed, CSA Certified, CE

• Temperature Rating: 40 °C

Specifications

• Part Number: KA36100

• Manufacturer: Square D

• Category: Circuit Breaker

• Item Subcategory: Molded Case

• Family / Series: I‑Line

• Type: KA

• Voltage: 600 VAC

• Amperage: 100 A

• Phase: 3

• Poles: 3

• AIC Rating: 25 kA @ 480 VAC; 22 kA @ 600 VAC

• Connection: I‑Line Style Plug‑In

• Functions: LI – Long‑Time and Instantaneous Trip

• Frame Size: K Frame

• Temperature Rating: -13–158 °F (-25–70 °C)

• Protection: Thermal Magnetic

Product Data

• UPC: 785901339137

• Weight: 13 lb
