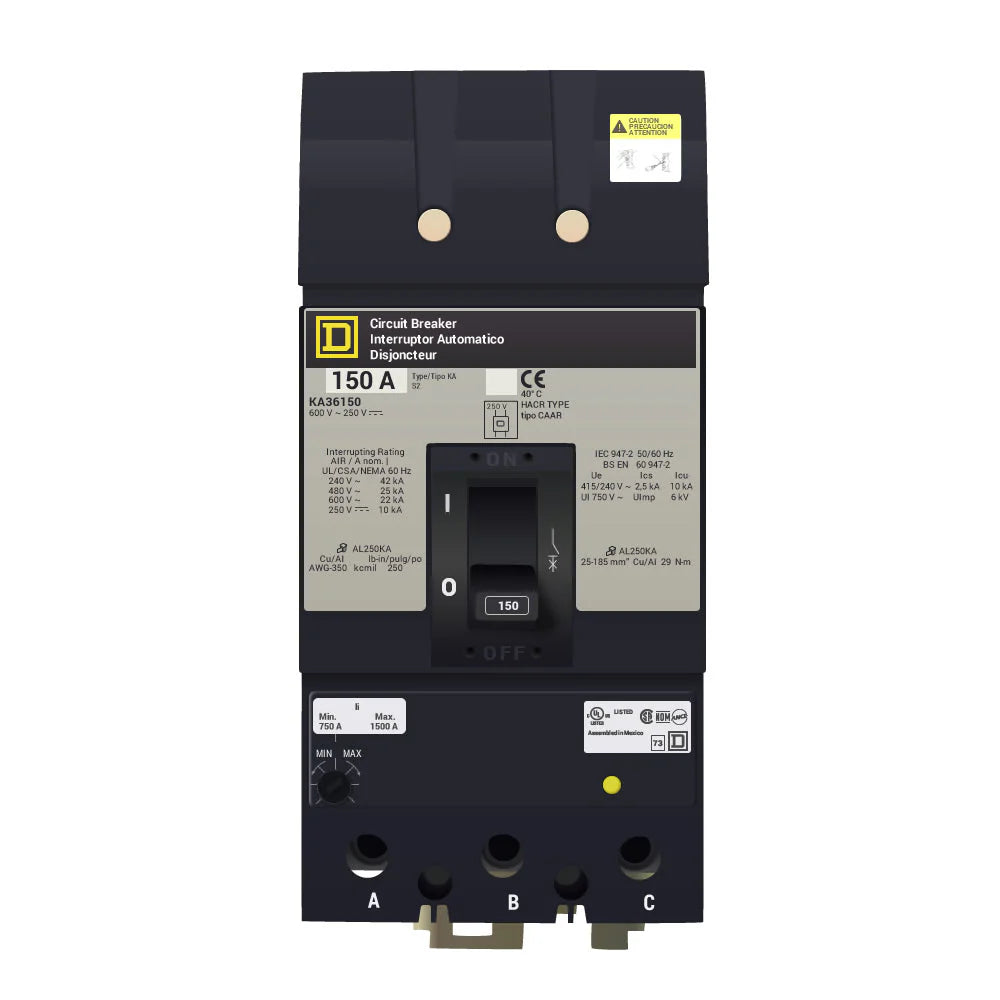

Square D KA36150 – 150A 600VAC 3-Pole I-Line Molded Case Circuit Breaker, KA Frame, Thermal Magnetic, 42kA @240V / 25kA @480V / 22kA @600V

Description

KA36150

KA36150 is a Square D KA-frame molded case circuit breaker rated for 150 amps and 600 VAC. This 3-pole breaker uses an I-Line plug-on connection for quick installation in Square D I-Line panels and switchboards.

It features a thermal magnetic trip unit providing long-time and instantaneous protection against overloads and short circuits. Interrupting capacity varies by voltage, making the breaker suitable for a range of commercial and industrial applications. Designed for 3-phase systems, the KA36150 is rated for continuous operation at a 40 °C ambient temperature and complies with UL, CSA, and CE standards.

Interrupting Ratings

• 42kA @ 240VAC

• 25kA @ 480VAC

• 22kA @ 600VAC

Specifications

Part Number: KA36150
Manufacturer: Square D
Category: Circuit Breaker
Item Subcategory: Molded Case
Family: I-Line
Type: KA
Voltage: 600
Amperage: 150
Phase: 3
Poles: 3
AIC Rating: 42kA @ 240V / 25kA @ 480V / 22kA @ 600V
Connection: I-Line Style Plug-In
Trip Unit: Thermal Magnetic
Trip Functions: LI – Long-Time and Instantaneous
Frame Size: K Frame
Temperature Rating: -13°F to 158°F (-25°C to 70°C)

Product Data

UPC: 786679307748
GTIN: 00786679307748
Weight: 13 lb
