Square D KA36175 – 175A 600VAC 3-Pole I-Line Molded Case Circuit Breaker, KA Frame, Thermal Magnetic, 42kA @240V / 25kA @480V / 22kA @600V

Description

KA36175

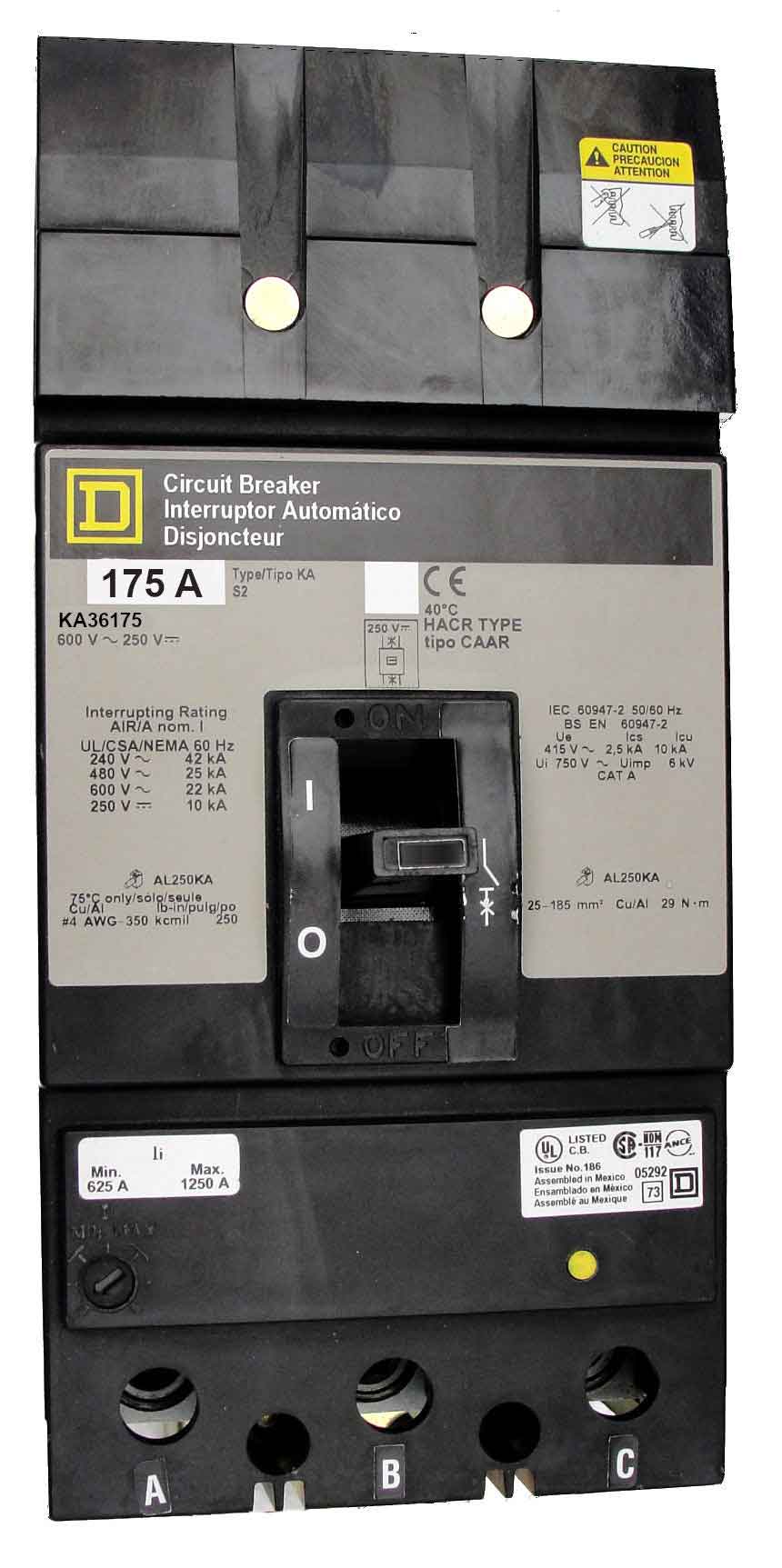

KA36175 is a Square D KA-frame molded case circuit breaker rated for 175 amps and 600 VAC. This 3-pole breaker uses an I-Line style plug-on connection for installation in Square D I-Line panelboards and switchgear.

It is equipped with a thermal magnetic trip unit providing long-time and instantaneous protection for reliable overload and short-circuit defense. Interrupting capacity varies by system voltage, allowing use across multiple commercial and industrial applications. The breaker is designed for 3-phase systems and rated for continuous operation at a 40 °C ambient temperature. UL, CSA, and CE approvals apply.

Interrupting Ratings

• 42kA @ 240VAC

• 25kA @ 480VAC

• 22kA @ 600VAC

Specifications

Part Number: KA36175
Manufacturer: Square D
Category: Circuit Breaker
Item Subcategory: Molded Case
Family: I-Line
Type: KA
Voltage: 600
Amperage: 175
Phase: 3
Poles: 3
AIC Rating: 42kA @ 240V / 25kA @ 480V / 22kA @ 600V
Connection: I-Line Style Plug-In
Trip Unit: Thermal Magnetic
Trip Functions: LI – Long-Time and Instantaneous
Frame Size: K Frame
Temperature Rating: -13°F to 158°F (-25°C to 70°C)
Protection: Thermal Magnetic

Product Data

UPC: 785901425106
GTIN: 00785901425144
Weight: 13 lb
