Square-D KAL36150 150A 3 Pole Thermal Magnetic MCCB – Bolt-On Mount – 600V AC/DC

The Square-D KAL36150 molded case circuit breaker is engineered to provide reliable protection for industrial and commercial electrical distribution systems. Built with a durable KAL frame construction, this breaker features a thermal magnetic non-interchangeable trip unit designed to deliver effective overload and short-circuit protection. Rated at 150 amperes with a 3-pole configuration, it supports both AC and DC applications while offering dependable interrupting performance in demanding environments. Its bolt-on mounting design ensures secure installation and long-lasting operational stability in panelboards, switchgear, and distribution assemblies.

Product Specification

• Manufacturer: Square-D
• Model: KAL36150
• Frame Type: KAL
• Rated Current (Amperage): 150A at 40°C
• Number of Poles: 3
• Mounting Type: Bolt-On
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Trip Setting: 750–1500
• Connection Type: Line and Load End Terminals Standard
• Application: Industrial and Commercial Power Distribution

Technical Specification

• Interrupting Capacity:
  • 42 kA @ 240 VAC
  • 25 kA @ 480 VAC
  • 22 kA @ 600 VAC
  • 10 kA @ 250 VDC
• Protection Type: Overload and Short Circuit Protection
• Operating Mechanism: Thermal Magnetic Trip System
• Lug Type: Standard Line and Load End
• Installation Design: Bolt-On Configuration
• Performance Category: Standard Industrial Duty

Voltage and Ratings

• Rated Operational Voltage: 240 / 480 / 600 VAC
• DC Voltage Rating: 250 VDC
• Maximum Voltage Rating: 600 VAC
• Frequency: 50/60 Hz
• Short Circuit Breaking Capacity: Up to 42 kA

Product Data

• Frame Size: K Frame
• Connection Type: Bolt-On
• Terminal Type: Line and Load End Standard Lugs
• Installation Type: Panelboard / Switchgear Mounting
• Configuration: 3 Pole MCCB
• Warranty: 1 Year (Applicable for new and certified reconditioned products)

Important Note

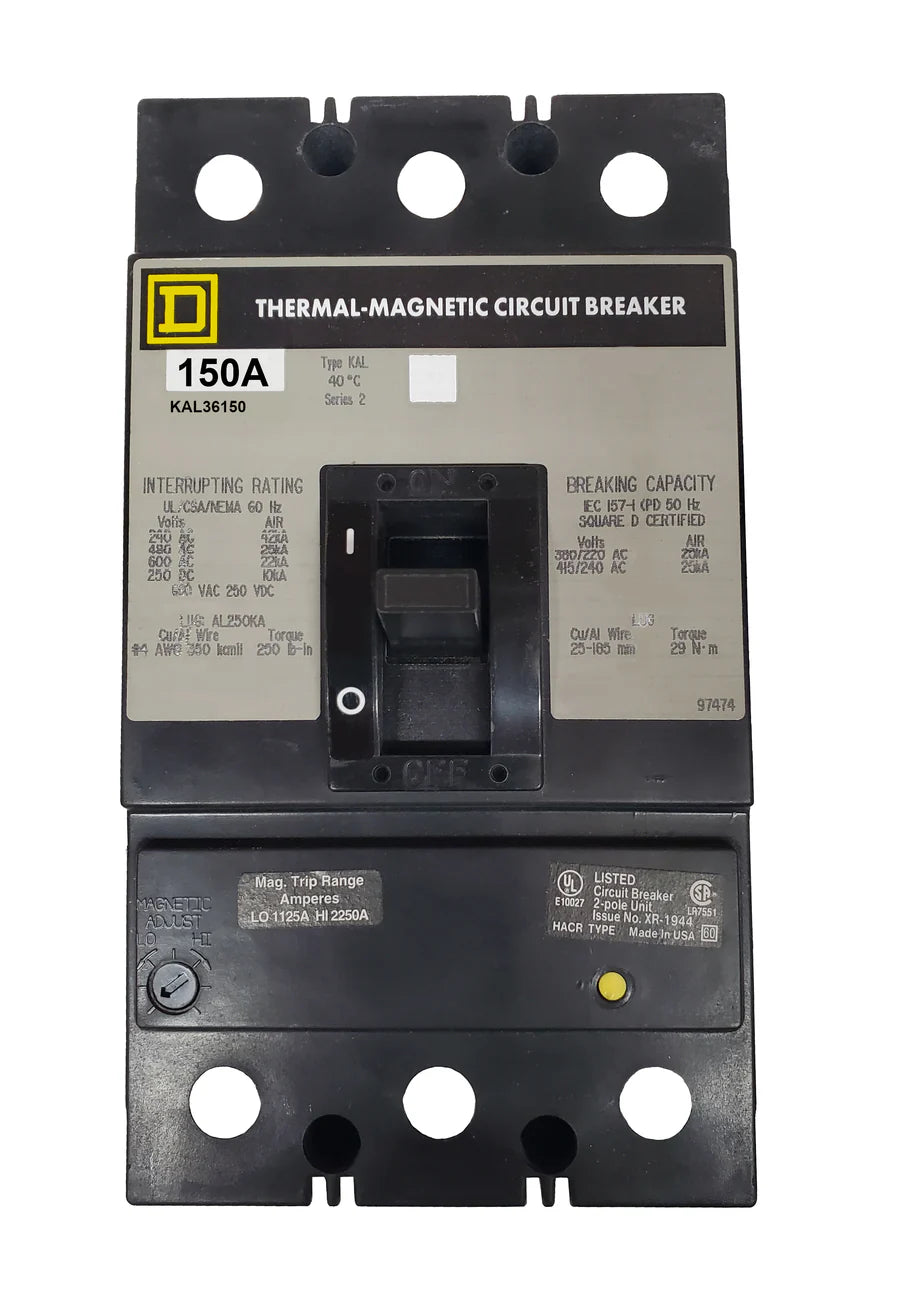

This product image is intended for identification purposes only and may represent a base model. Actual breaker configuration may vary depending on selected accessories or application requirements. Accessories ordered with the breaker can be installed at no additional cost when complete configuration details are provided during checkout.
