Square-D KAP36070 70A 3 Pole Thermal Magnetic MCCB – Panel Mounted – 600V AC/DC

Product Overview

The Square-D KAP36070 molded case circuit breaker is designed for reliable circuit protection in industrial and commercial electrical distribution systems. Built on the KAP frame platform, this breaker features a thermal magnetic non-interchangeable trip unit that ensures dependable protection against overload and short-circuit conditions. Rated at 70 amperes with a 3-pole configuration, it supports both AC and DC applications while maintaining strong interrupting performance in demanding environments. Its panel-mounted design provides secure installation and efficient integration into electrical panels and switchgear assemblies.

Product Specification

• Manufacturer: Square-D
• Model: KAP36070
• Frame Type: KAP
• Rated Current (Amperage): 70A at 40°C
• Number of Poles: 3
• Mounting Type: Panel Mounted
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Trip Setting: 350–700
• Connection Type: Load End Terminals Standard
• Application: Industrial and Commercial Power Distribution

Technical Specification

• Interrupting Capacity:
  • 42 kA @ 240 VAC
  • 25 kA @ 480 VAC
  • 22 kA @ 600 VAC
  • 10 kA @ 250 VDC
• Protection Type: Overload and Short Circuit Protection
• Operating Mechanism: Thermal Magnetic Trip System
• Lug Type: Standard Load End
• Installation Design: Panel Mounted Configuration
• Performance Category: Standard Industrial Duty

Voltage and Ratings

• Rated Operational Voltage: 240 / 480 / 600 VAC
• DC Voltage Rating: 250 VDC
• Maximum Voltage Rating: 600 VAC
• Frequency: 50/60 Hz
• Short Circuit Breaking Capacity: Up to 42 kA

Product Data

• Frame Size: K Frame
• Connection Type: Panel Mounted
• Terminal Type: Load End Standard Lugs
• Installation Type: Electrical Panel / Switchgear Integration
• Configuration: 3 Pole MCCB
• Warranty: 1 Year (Applicable for new and certified reconditioned products)

Important Note

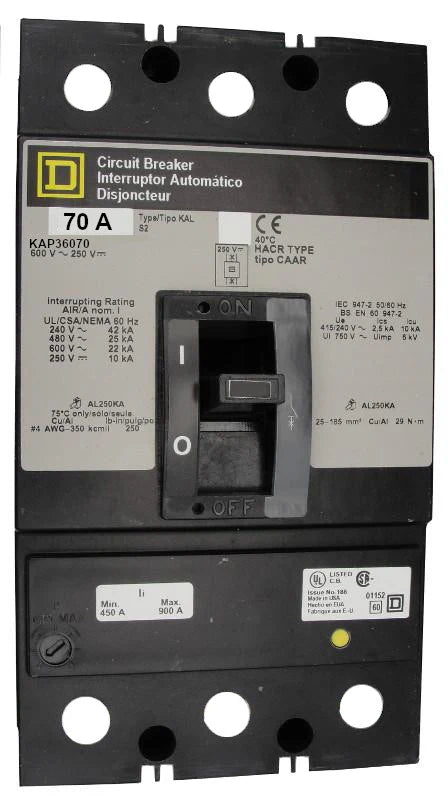

This product image is provided for identification purposes only and may represent a base model. Actual breaker configuration may vary depending on selected accessories or application requirements. Accessories ordered with the breaker can be installed at no additional cost when complete configuration details are provided during checkout.
